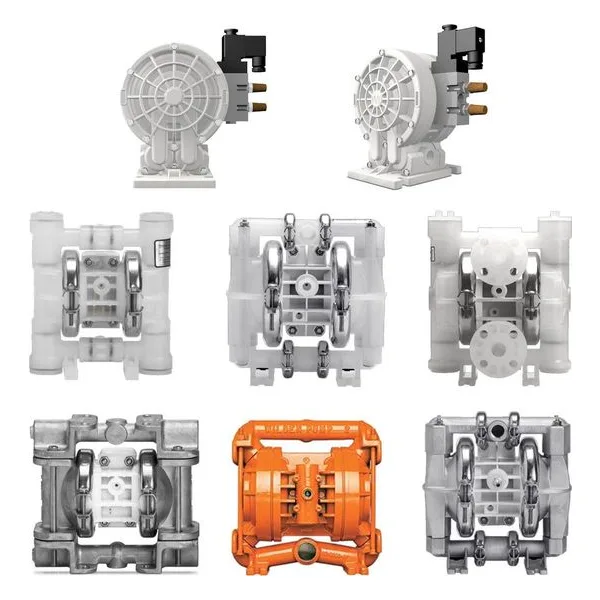

Accu-Flo Electronic Control Pumps

Accu-Flo Electronic Control Pumps

Wilden® Accu-Flo™ Series AODD Pumps for Electronic Control Applications

Accu-Flo™ Series Air-Operated Double-Diaphragm (AODD) Pumps give you the critical external pump control necessary for exacting applications such as batching. Featuring a direct electrical interface that utilizes electrical impulses to stroke the pump instead of differential pressure, the Accu-Flo Series provides a variable stroke rate that you can easily control as needed. To meet your applications, Accu-Flo Series pumps are available as NEMA 5, NEMA 7 or ATEX-compliant, and come in a variety of voltage options.

Features & Benefits
• Integrated electronic (solenoid) control
• Multiple signal input voltage options: 24V DC, 12V DC, 24 AC and 110V AC
• Proven, robust construction: bolted or clamped

Applications
• Chemical Dosing
• Adaptive Dosing
• Batching Processes
• Blending
• Systems and Skids

Clamped Metal Pumps
6 mm (1/4") Accu-Flo™ Clamped Metal AODD Pump A.025
13 mm (1/2") Accu-Flo™ Clamped Metal AODD Pump A1
25 mm (1") Accu-Flo™ Clamped Metal AODD Pump A2

Clamped Plastic Pumps
6 mm (1/4") Accu-Flo™ Clamped Plastic AODD Pump A.025
13 mm (1/2") Accu-Flo™ Clamped Plastic AODD Pump A1
25 mm (1") Accu-Flo™ Clamped Plastic AODD Pump A2

Bolted Plastic Pumps
6 mm (1/4") Accu-Flo™ Bolted Plastic AODD Pump A25PS
13 mm (1/2") Accu-Flo™ Bolted Plastic AODD Pump A100
25 mm (1") Accu-Flo™ Bolted Plastic AODD Pump A200
13 mm (1/2") Accu-Flo™ Velocity Series Bolted Plastic AODD Pump A150V
6 mm (1/4") Accu-Flo™ Velocity Series Bolted Plastic AODD Pump A2550V

Search Results

(245 results)
Sort & Filter 2
Series: Accu-Flo Electronic Control Pumps Remove FilterManufacturer: Wilden Remove FilterClear all
  • 01-10273

    01-10273

    Wilden

    Wilden 01-10273 Accu-Flo Electronic Control 1/2" Clamped Plastic Air Operated Double Diaphragm Pump (A1P), MODEL: A1P/PPPPP/TNU/TF/KTV/0151. 39 lpm (10.3 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, PTFE-Encapsulated FKM O-Rings, PTFE w/Neoprene Backup Reduced-Stroke Diaphragm, PTFE Balls. 01-9805-55 Wet End Kit, 72-7000 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,419.30

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-9798

    00-9798

    Wilden

    Wilden 00-9798 Accu-Flo Electronic Control 1/4" Clamped Plastic Air Operated Double Diaphragm Pump (A.025P), MODEL: A.025P/PPPPP/WFS/TF/PWF/0150. 12.1 lpm (3.2 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seats, Wil-Flex O-Rings & Traditional Diaphragms, PTFE Balls. 72-7015 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $651.60

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • 01-10483

    01-10483

    Wilden

    Wilden 01-10483 Accu-Flo Electronic Control 1/2" Clamped Plastic Air Operated Double Diaphragm Pump (A1B), MODEL: A1B/PPPPP/WFS/WF/KWF/0512. 39 lpm (10.3 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, Wil-Flex O-Rings, Traditional Diaphragms & Balls. 01-9805-58 Wet End Kit, 72-7099 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $786.60

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-9821

    00-9821

    Wilden

    Wilden 00-9821 Accu-Flo Electronic Control 1/4" Clamped Plastic Air Operated Double Diaphragm Pump (A.025B), MODEL: A.025B/PZPPP/TNL/TF/PTV/0512. 11.7 lpm (3.1 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block, Air Valve & Seats, PTFE-Encapsulated FKM O-Rings, PTFE w/Neoprene Backup Reduced-Stroke IPD Diaphragm, PTFE Balls. 72-7087 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $630.90

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-10186

    00-10186

    Wilden

    Wilden 00-10186 Accu-Flo Electronic Control 1/4" Bolted Plastic Air Operated Double Diaphragm Pump (A25PS), MODEL: A25PS/PPPPP/TWS/TF/PTF/0150. 21.6 lpm (5.7 gpm) Max Flow, 6 mm (1/4") NPS (NPT/BSP) Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seats, PTFE O-Rings & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm. 13810-00 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $585.90

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-10189

    00-10189

    Wilden

    Wilden 00-10189 Accu-Flo Electronic Control 1/4" Bolted Plastic Air Operated Double Diaphragm Pump (A25PS), MODEL: A25PS/KKPPP/TWS/TF/KVT/0150. 21.6 lpm (5.7 gpm) Max Flow, 6 mm (1/4") NPS (NPT/BSP) Suction & Discharge. PVDF Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, FKM O-Rings, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm, PTFE Balls. 13810-00 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $711.90

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-9844

    00-9844

    Wilden

    Wilden 00-9844 Accu-Flo Electronic Control 1/4" Clamped Plastic Air Operated Double Diaphragm Pump (A.025P), MODEL: A.025P/KZPPP/TNL/TF/KTV/0151. 11.7 lpm (3.1 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. PVDF Wetted Parts & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, PTFE w/Neoprene Backup Reduced-Stroke IPD Diaphragm, PTFE Balls. 72-7000 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,004.40

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-9852

    00-9852

    Wilden

    Wilden 00-9852 Accu-Flo Electronic Control 1/4" Clamped Plastic Air Operated Double Diaphragm Pump (A.025P), MODEL: A.025P/PZPPP/TNL/TF/PTV/0150. 11.7 lpm (3.1 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block, Air Valve & Seats, PTFE-Encapsulated FKM O-Rings, PTFE w/Neoprene Backup Reduced-Stroke IPD Diaphragm, PTFE Balls. 72-7000 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $821.70

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-10050

    00-10050

    Wilden

    Wilden 00-10050 Accu-Flo Electronic Control 1/4" Clamped Plastic Air Operated Double Diaphragm Pump (A.025P), MODEL: A.025P/KKPPP/WFS/TF/KTV/0155. 12.1 lpm (3.2 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. PVDF Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Wil-Flex Traditional Diaphragm, PTFE Balls. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $910.80

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 02-13004

    02-13004

    Wilden

    Wilden 02-13004 Accu-Flo Electronic Control 1" Clamped Metal Air Operated Double Diaphragm Pump (A2P), MODEL: A2P/SSPPP/TSU/TF/STF/2155. 121 lpm (32 gpm) Max Flow, 25 mm (1") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 02-9804-55-203 Wet End Kit, 70-7405 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $3,449.70

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-10026

    00-10026

    Wilden

    Wilden 00-10026 Accu-Flo Electronic Control 1/4" Clamped Plastic Air Operated Double Diaphragm Pump (A.025P), MODEL: A.025P/KKPPP/WFS/TF/KWF/0150. 12.1 lpm (3.2 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. PVDF Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, Wil-Flex O-Rings & Traditional Diaphragms, PTFE Balls. 72-7051 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $834.30

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 00-10044

    00-10044

    Wilden

    Wilden 00-10044 Accu-Flo Electronic Control 1/4" Clamped Metal Air Operated Double Diaphragm Pump (A.025P), MODEL: A.025P/SSPPP/WFS/TF/STV/0150. 15.5 lpm (4.1 gpm) Max Flow, 6 mm (1/4") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Wil-Flex Traditional Diaphragm, PTFE Balls. 72-7099 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,422.90

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
    Show More
