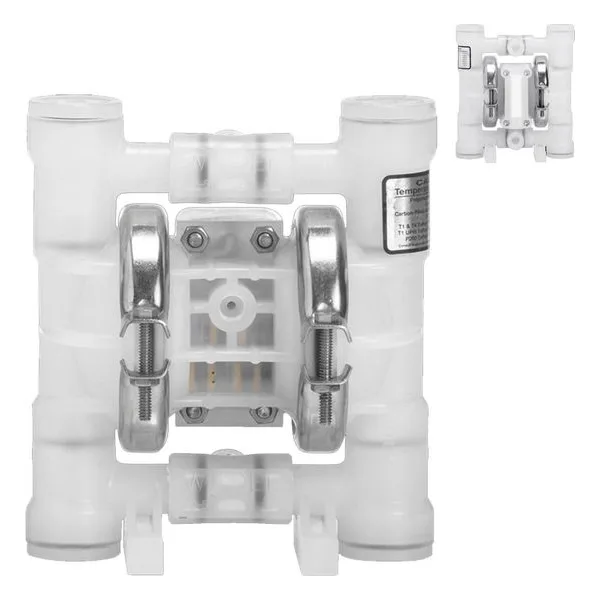

When Wilden introduced the 6mm (1/4") Pro-Flo® series plastic pumps to his product lineup, he opted for a clamped design—a choice informed by his expertise. These plastic pumps mirror the advantages of their metal counterparts, offering a straightforward and robust construction ideal for chemical applications. Designed with maintenance ease in mind, these clamped plastic pumps are simple to install and can be disassembled and reassembled using just one tool. Over time, countless Jim Wilden clamped plastic pumps have reliably moved billions of gallons of fluid annually
Features & Benefits
• FNPT threaded inlet/discharge liquid connections
• Rotatable inlet and discharge for flexibility
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Polypropylene - 1.4 kg (3 lb)
PVDF - 1.4 kg (3 lb)
Non-Wetted Housings - Materials
Center Section - Polypropylene, Acetal
Air Valve - Polypropylene, Acetal
Diaphragm Pump Specifications:
- Air Inlet: 1/8" FNPT
- Liquid Inlet: 6 mm (1/4")
- Liquid Discharge: 6 mm (1/4")
- Connection Type: NPT/BSPT (Threaded)
- Maximum Suction Lift Capability:
- Rubber – 2.74 m (9') Dry, 9.45 m (31') Wet
- TPE – 3.05 m (10') Dry, 8.84 m (29') Wet
- PTFE – 2.44 m (8') Dry, 8.84 m (29') Wet
- Maximum Flow Rate:
- Rubber – 18.1 lpm (4.8 gpm)
- TPE – 18.1 lpm (4.8 gpm)
- PTFE – 18.1 lpm (4.8 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 0.4 mm (1/64")
- *Displacement Per Stroke:
- Rubber – 0.02 L (0.005 gal)
- TPE – 0.02 L (0.005 gal)
- PTFE – 0.02 L (0.005 gal)
- * 1 cycle = 2 strokes
Elastomer Options
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
Achieve outstanding energy conservation and maximize the mean time between repairs (MTBR) for your Air-Operated Double-Diaphragm (AODD) pump by utilizing the robust Wilden® Pro-Flo® Air Distribution System (ADS). The Pro-Flo system shines across a diverse range of industrial applications such as:
• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process
