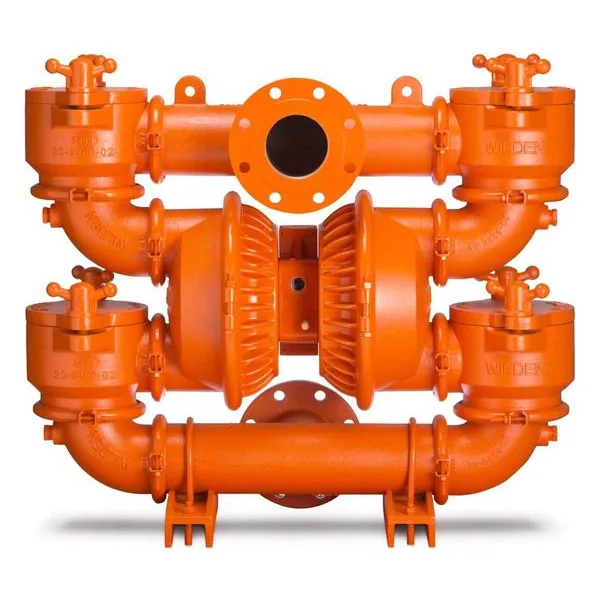

Wilden Pro-Flo Shift 4" 102mm features the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped pumps have pumped millions upon billions of gallons of fluid on a yearly basis.
Features & Benefits
• NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Ductile Iron - 223 kg (492 lb)
Non-Wetted Housings - Materials
Center Section - Aluminum, Stainless Steel, Polypropylene
Air Valve - Aluminum, Anodized Aluminum, Stainless Steel, Polypropylene
Air Chamber - Aluminum, Stainless Steel, Ductile Iron
Diaphragm Pump Specifications:
- Air Inlet: 3/4" FNPT
- Liquid Inlet: 102 mm (4")
- Liquid Discharge: 102 mm (4")
- Connection Type: DIN/ANSI (Flanged)
- Maximum Suction Lift Capability:
- Rubber – 4.1 m (13.5') Dry, 8.6 m (28.4') Wet
- EZ-Install TPE – 4.4 m (14.4') Dry, 8.6 m (28.4') Wet
- Full-Stroke PTFE – 3.8 m (12.7') Dry, 8.6 m (28.4') Wet
- Maximum Flow Rate:
- Rubber – 1,048 lpm (277 gpm)
- EZ-Install TPE – 1,003 lpm (265 gpm)
- Full-Stroke PTFE – 953 lpm (252 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 35 mm (1-3/8")
- *Displacement Per Stroke:
- Rubber – 4.5 L (1.2 gal)
- EZ-Install TPE – 4.4 L (1.16 gal)
- Full-Stroke PTFE – 4.2 L (1.13 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene |-18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
