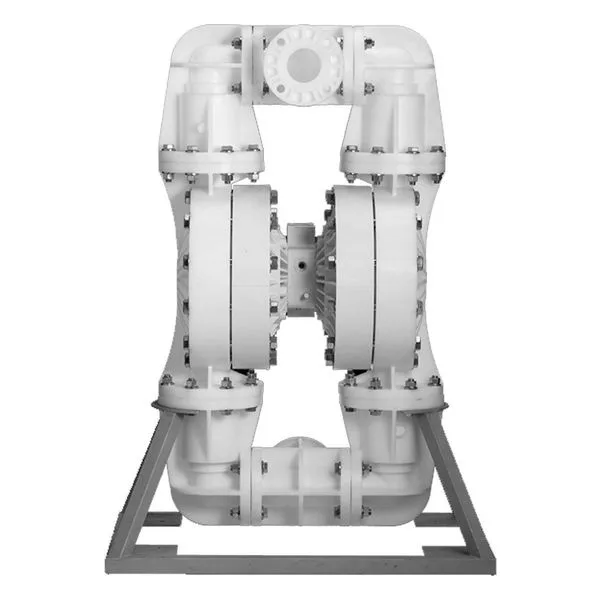

3" (76mm) Bolted Plastic Pro-Flo SHIFT (PS1500)

3" (76mm) Bolted Plastic Pro-Flo SHIFT (PS1500)

Wilden® 3" Pro-Flo Shift PS1500 bolted plastic air-operated double-diaphragm (AODD) pump series combines exceptional performance and efficiency with remarkable containment. Wilden's bolted-construction diaphragm pumps offer improved flow rates and a redesigned liquid path that reduces internal friction for maximum output and longer diaphragm life.

Features & Benefits
• DIN or ANSI flanged inlet/discharge liquid connections
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Bolted construction for superior containment
• Large-solids passage
• High suction lift
• Ease of operation and maintenance
• Increased on/off reliability
• Longest Mean Time Between Repair (MTBR)

Wetted Housings - Materials
Polypropylene - 125 kg (275 lb)
PVDF - 152 kg (335 lb)

Non-Wetted Housings - Materials
Center Block - Polypropylene
Air Valve - Polypropylene
Air Chamber - Polypropylene

Diaphragm Pump Specifications:

Air Inlet: 3/4" FNPT
Liquid Inlet: 76 mm (3")
Liquid Discharge: 76 mm (3")
Connection Type: DIN/ANSI (Flanged)
Maximum Suction Lift Capability:
- EZ-Install TPE – 5.3 m (17.5') Dry, 8.3 m (28.4') Wet
- Full-Stroke PTFE – 5.8 m (19.1') Dry, 8.6 m (28.4') Wet
- Reduced-Stroke PTFE – 3.5 m (11.6') Dry, 8.6 m (28.4') Wet
Maximum Flow Rate:
- EZ-Install TPE – 1,024 lpm (271 gpm)
- Full-Stroke PTFE – 999 lpm (262 gpm)
- Reduced-Stroke PTFE – 882 lpm (233 gpm)
Maximum Pressure: Polypropylene – 6.9 bar (100 psi) | PVDF – 8.6 bar (125 psi)
Maximum Diameter Solids: 13 mm (1/2")
*Displacement Per Stroke:
- EZ-Install TPE – 5.4 L (1.42 gal)
- Full-Stroke PTFE – 5.3 L (1.40 gal)
- Reduced-Stroke PTFE – 3.5 L (0.93 gal)
- * 1 cycle = 2 strokes

Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene |-18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only

Manuals & Media

Search Results

(50 results)

Sort & Filter 2

Series: 3" (76mm) Bolted Plastic Pro-Flo SHIFT (PS1500)

Manufacturer: Wilden

Clear all

15-12661
Wilden
Wilden 15-12661 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/PSPPP/ZWS/WF/KTV. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block & Air Valve, Stainless Steel Outer Piston, PVDF Seat, PTFE-Encapsulated FKM O-Rings, Wil-Flex EZ-Install Diaphragms & Balls. 15-9994-20 ADS Repair Kit, 15-9815-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$10,344.60
Quantity:add to cart
15-12662
Wilden
Wilden 15-12662 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/PSPPP/ZWS/WF/KTV/0504. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") DIN Flanged Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block & Air Valve, Stainless Steel Outer Piston, PVDF Seat, PTFE-Encapsulated FKM O-Rings, Wil-Flex EZ-Install Diaphragms & Balls. 15-9994-20 ADS Repair Kit, 15-9815-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$10,344.60
Quantity:add to cart
15-12665
Wilden
Wilden 15-12665 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/KSPPP/ZWS/WF/KTV. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. PVDF Wetted Parts & Seats, Stainless Steel Outer Piston, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Wil-Flex EZ-Install Diaphragms & Balls. 15-9994-20 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$22,754.70
Quantity:add to cart
15-12666
Wilden
Wilden 15-12666 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/KSPPP/ZWS/WF/KTV/0504. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") DIN Flanged Suction & Discharge. PVDF Wetted Parts & Seats, Stainless Steel Outer Piston, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Wil-Flex EZ-Install Diaphragms & Balls. 15-9994-20 ADS Repair Kit, 15-9815-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$22,754.70
Quantity:add to cart
15-12809
Wilden
Wilden 15-12809 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/PSPPP/ZSS/TF/KTV. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block & Air Valve, Stainless Steel Outer Piston, PVDF Seat, PTFE-Encapsulated FKM O-Rings, Saniflex (Hytrel) EZ-Install Diaphragm, PTFE Balls. 15-9994-20 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$12,714.30
Quantity:add to cart
15-12856
Wilden
Wilden 15-12856 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/KSPPP/ZSS/TF/KTV. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. PVDF Wetted Parts & Seats, Stainless Steel Outer Piston, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Saniflex (Hytrel) EZ-Install Diaphragm, PTFE Balls. 15-9994-20 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$25,124.40
Quantity:add to cart
15-12602
Wilden
Wilden 15-12602 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/PSPPP/ZGS/TF/KTV. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block & Air Valve, Stainless Steel Outer Piston, PVDF Seat, PTFE-Encapsulated FKM O-Rings, Geolast EZ-Install Diaphragm, PTFE Balls. 15-9994-20 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$12,674.70
Quantity:add to cart
15-12606
Wilden
Wilden 15-12606 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/PSPPP/ZGS/TF/KTV/0504. 1,024 lpm (271 gpm) Max Flow, 76 mm (3") DIN Flanged Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block & Air Valve, Stainless Steel Outer Piston, PVDF Seat, PTFE-Encapsulated FKM O-Rings, Geolast EZ-Install Diaphragm, PTFE Balls. 15-9994-20 ADS Repair Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$12,674.70
Quantity:add to cart
15-12963
Wilden
Wilden 15-12963 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/KZPPP/WWL/WF/KTV. 76 mm (3") ANSI Flanged Suction & Discharge. PVDF Wetted Parts & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Wil-Flex Full Stroke IPD Diaphragms & Balls. 15-9994-20 ADS Repair Kit, 15-9815-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$22,754.70
Quantity:add to cart
15-13080
Wilden
Wilden 15-13080 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/PZPPP/WWL/WF/KTV. 76 mm (3") ANSI Flanged Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block & Air Valve, PVDF Seat, PTFE-Encapsulated FKM O-Rings, Wil-Flex Full Stroke IPD Diaphragms & Balls. 15-9994-20 ADS Repair Kit, 15-9815-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$10,344.60
Quantity:add to cart
15-13098
Wilden
Wilden 15-13098 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/KZPPP/WWL/WF/KTV/0504. 76 mm (3") DIN Flanged Suction & Discharge. PVDF Wetted Parts & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, Wil-Flex Full Stroke IPD Diaphragms & Balls. 15-9994-20 ADS Repair Kit, 15-9815-58-217 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$22,754.70
Quantity:add to cart
15-12600
Wilden
Wilden 15-12600 Pro-Flo SHIFT 3" (76mm) Bolted Plastic Air Operated Double Diaphragm AODD Pump (PS1500), MODEL: PS1500/PSPPP/TWS/TF/KTV. 999 lpm (262 gpm) Max Flow, 76 mm (3") ANSI Flanged Suction & Discharge. Polypropylene Wetted Parts, Air Chamber, Center Block & Air Valve, Stainless Steel Outer Piston, PVDF Seat, PTFE-Encapsulated FKM O-Rings, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragm, PTFE Balls. 15-9994-20 ADS Repair Kit, 15-9815-55-201 Wet End Kit, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$13,599.90
Quantity:add to cart
