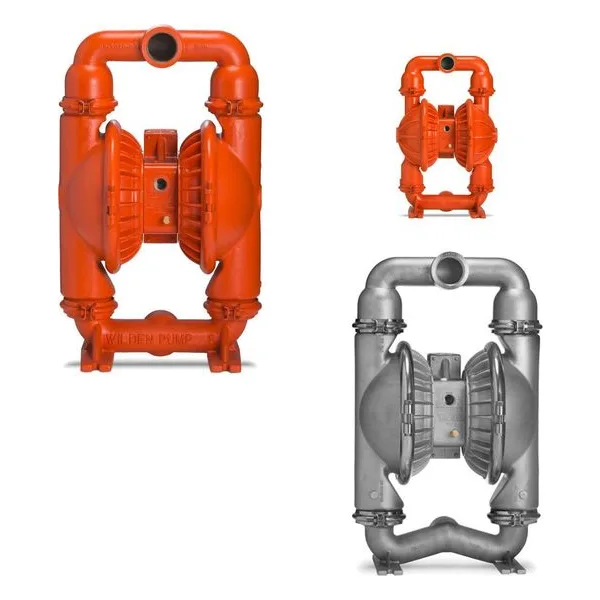

PS8 2" 51mm AODD models featuring the original air-operated double-diaphragm pump design by Jim Wilden. Clamped metal pumps offer a simple, rugged design for general commercial and industrial applications. Engineered with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's 2" PS8 clamped pumps have pumped many billions of gallons of fluid on an yearly basis.
Features & Benefits
• NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Aluminum - 35 kg (78 lb) | Stainless Steel - 53 kg (117 lb) | Ductile Iron - 49 kg (109 lb)
Non-Wetted Housings - Materials
Center Section / Bloc - Aluminum, Nickel-Plated Aluminum, Stainless Steel, Polypropylene
Air Valve - Aluminum, Nickel-Plated Aluminum, Anodized Aluminum, Stainless Steel, Polypropylene
Air Chamber - Aluminum, Nickel-Plated Aluminum, Stainless Steel
Diaphragm Pump Specifications:
Air Inlet: 3/4" FNPT | Liquid Inlet: 51 mm (2") | Liquid Discharge: 51 mm (2") | Connection Type: NPT/BSPT (Threaded) | Maximum Suction Lift Capability: Rubber – 7.2 m (23.8') Dry, 9.0 m (29.5') Wet | EZ-Install TPE – 6.9 m (22.7') Dry, 9.0 m (29.5') Wet | Full-Stroke PTFE – 6.3 m (20.7') Dry, 8.6 m (28.4') Wet | Maximum Flow Rate: Rubber – 700 lpm (185 gpm) | EZ-Install TPE – 719 lpm (190 gpm) | Full-Stroke PTFE – 723 lpm (191 gpm) | Maximum Pressure: 8.6 bar (125 psi) | Maximum Diameter Solids: 6.4 mm (1/4") | *Displacement Per Stroke: Rubber – 2.6 L (0.69 gal) | EZ-Install TPE – 2.6 L (0.69 gal) | PTFE Full-Stroke – 2.4 L (0.64 gal) | * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F) | EPDM | -51°C to 138°C (-60°F to 280°F) | FKM | -40°C to 177°C (-40°F to 350°F) | Geolast® | -40°C to 82°C (-40°F to 180°F) | Neoprene |-18°C to 93°C (0°F to 200°F) | PTFE* | 4°C to 104°C (40°F to 220°F) | Polyurethane | -12°C to 66°C (10°F to 150°F) | Saniflex™ | -29°C to 104°C (-20°F to 220°F) | Wil-Flex™ | -40°C to 107°C (-40°F to 225°F) | * 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
