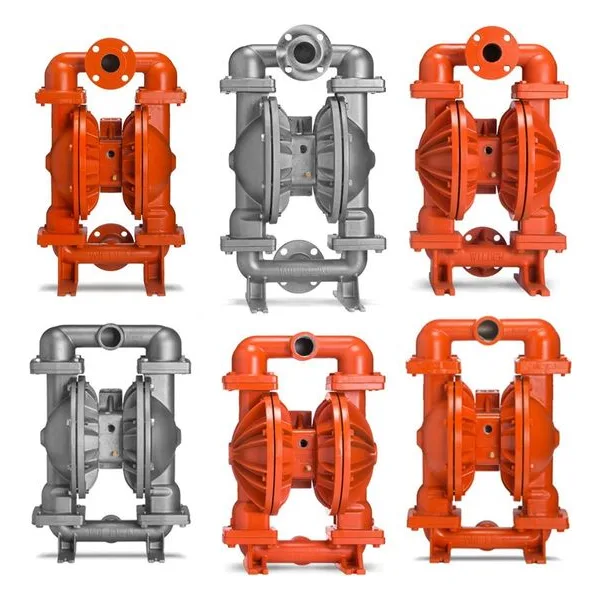

The 2" 51mm Wilden® Pro-Flo Shift bolted metal pump, also known as FIT, sets the new standard for pump performance. PS820 / PS830 AODD models feature an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved overall diaphragm lifespan. 51mm Wilden bolted pumps are also designed for exceptional containment and have the exact bolt down footprint and inlet and ourlet discharge connections as Wilden clamped pumps for easy replacement.
Features & Benefits
• NPT or BSPT threaded inlet/discharge liquid connections (PS820)
• DIN or ANSI flanged inlet/discharge liquid connections (PS830) that don't require welding or nipple attachment
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Largest chemical compatibilities
• Portable and submersible
• Large-solids passage
• High suction lift
• Ease of operation and maintenance
• Flexible internal adjustment on manifolds
• Increased on/off reliability
• Longest Mean Time Between Repair (MTBR)
Wetted Housings - Materials
Aluminum - 47 kg (104 lb) (PS820) | 54 kg (118 lb) (PS830)
Stainless Steel - 73 kg (161 lb) (PS820) | 81 kg (178 lb) (PS830)
Ductile Iron - 71 kg (156 lb) (PS820) | 82 kg (181 lb) (PS830)
Alloy C - 91 kg (200 lb) (PS830)
Non-Wetted Housings - Materials
Center Section - Aluminum, Polypropylene, Stainless Steel
Air Valve - Aluminum, Anodized Aluminum, Polypropylene, Stainless Steel
Air Chamber - Aluminum, Stainless Steel
Diaphragm Pump Specification:
- Air Inlet: 3/4" FNPT
- Liquid Inlet: 51 mm (2")
- Liquid Discharge: 51 mm (2")
- Connection Type: NPT/BSPT (Threaded) | DIN/ANSI (Flanged)
- Maximum Suction Lift Capability:
- Rubber – 7.1 m (23.3') Dry, 9.0 m (29.5') Wet
- EZ-Install TPE – 7.0 m (23.1') Dry, 9.0 m (29.5') Wet
- Full-Stroke PTFE – 6.6 m (21.8') Dry, 9.0 m (29.5') Wet
- Maximum Flow Rate:
- Rubber – 685 lpm (181 gpm)
- EZ-Install TPE – 668 lpm (176 gpm)
- Full-Stroke PTFE – 655 lpm (173 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 6.4 mm (1/4")
- *Displacement Per Stroke:
- Rubber – 2.8 L (0.73 gal)
- EZ-Install TPE – 2.6 L (0.70 gal)
- Full-Stroke PTFE – 2.5 L (0.65 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene |-18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
