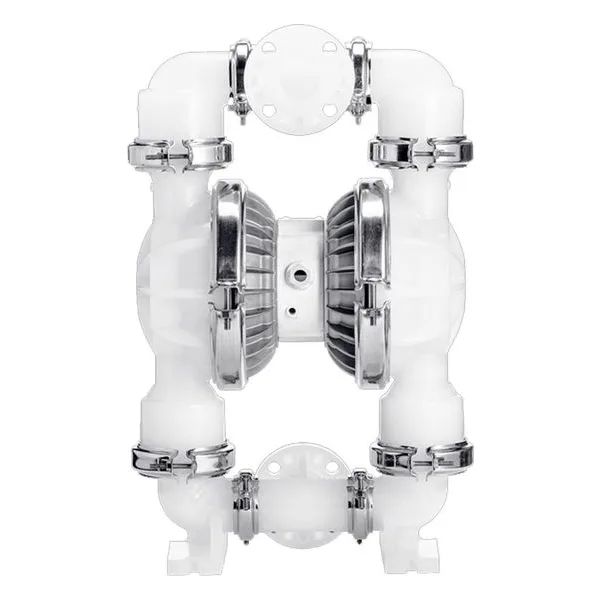

When Jim Wilden introduced a plastic pump series to his product lineup, he leveraged his expertise in clamped pumps. These 2" 51mm P8 Pro-Flo plastic versions share the same advantages as their metal counterparts, featuring a straightforward and rugged design that suits chemical applications. Engineered for easy maintenance, clamped plastic pumps are simple to install and can be disassembled and reassembled using just one tool. Over time, countless Wilden clamped plastic pumps have successfully moved billions of gallons of fluid annually.
Features & Benefits
• DIN and ANSI flanged inlet/discharge liquid connections
• Rotatable inlet and discharge for flexibility
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Polypropylene - 34 kg (75 lb)
Non-Wetted Housings - Materials
Center Block - Polypropylene
Air Valve - Polypropylene
Air Chamber - Aluminum, PTFE-Coated Aluminum, Stainless Steel
Diaphragm Pump Specifications:
- Air Inlet: 1/2" FNPT
- Liquid Inlet: 51 mm (2")
- Liquid Discharge: 51 mm (2")
- Connection Type: DIN/ANSI (Flanged)
- Maximum Suction Lift Capability:
- Rubber – 7.4 m (24.4') Dry, 8.6 m (28.4') Wet
- TPE – 5.9 m (19.3') Dry, 8.6 m (28.4') Wet
- Full-Stroke PTFE – 6.4 m (21.0') Dry, 8.6 m (28.4') Wet
- Reduced-Stroke PTFE – 4.27 m (14.0') Dry, 9.45 m (31.0') Wet
- Ultra-Flex™ – 4.88 m (16.0') Dry, 8.84 m (29.0') Wet
- Maximum Flow Rate:
- Rubber – 591 lpm (156 gpm)
- TPE – 583 lpm (154 gpm)
- Full-Stroke PTFE – 562 lpm (148 gpm)
- Reduced-Stroke PTFE – 481 lpm (127 gpm)
- Ultra-Flex™ – 560 lpm (148 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 6.4 mm (1/4")
- *Displacement Per Stroke:
- Rubber – 2.8 L (0.73 gal)
- TPE – 2.8 L (0.73 gal)Full-Stroke PTFE – 2.6 L (0.69 gal)
- Reduced-Stroke PTFE – 0.53 L (0.47 gal)
- Ultra-Flex™ – 2.12 L (0.56 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
Beneift from amazing energy conservation and the maximum mean time between repair (MTBR) for your Air-Operated Double-Diaphragm (AODD) pump with the simple yet durable Wilden® Pro-Flo® Air Distribution System (ADS). The Pro-Flo excels in a wide variety of commercial and industrial applications, such as:
• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process
