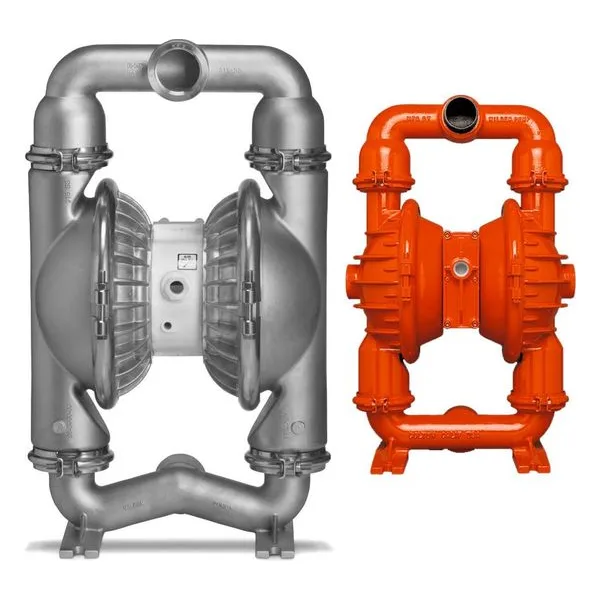

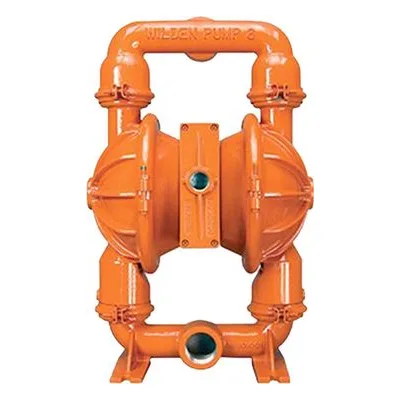

The 2" 51mm P8 Pro-Flo clamped metal pumps, designed based on Jim Wilden’s original air-operated double-diaphragm (AODD) pump design, feature a straightforward and rugged design suitable for general industrial applications. These pumps prioritize ease of maintenance, allowing simple installation and quick serviceability. With just a single tool, the pump can be disassembled and reassembled. Over time, hundreds of thousands of Jim Wilden’s clamped pumps have successfully moved billions of gallons of fluid annually.
Features & Benefits
• NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Aluminum - 32 kg (70 lb)
Stainless Steel - 51 kg (112 lb)
Cast Iron - 47 kg (104 lb)
Alloy C - 52 kg (114 lb)
Non-Wetted Housings - Materials
Center Block - Polypropylene
Air Valve - Polypropylene
Air Chamber - Aluminum, PTFE-Coated, Nickel-Plated, Stainless Steel, Halar-Coated Aluminum
Diaphragm Pump Specifications:
- Air Inlet: 1/2" FNPT
- Liquid Inlet: 51 mm (2")
- Liquid Discharge: 51 mm (2")
- Connection Type: NPT/BSPT (Threaded)
- Maximum Suction Lift Capability:
- Rubber –6.9 m (22.7') Dry, 8.6 m (28.4') Wet
- TPE – 6.7 m (22.1') Dry, 8.6 m (28.4') Wet
- Full-Stroke PTFE – 6.7 m (22.1') Dry, 9.0 m (29.5') Wet
- Reduced-Stroke PTFE – 4.6 m (15.0') Dry, 9.5 m (31.0') Wet
- Ultra-Flex™ – 4.9 m (16.0') Dry, 8.8 m (29.0') Wet
- Maximum Flow Rate:
- Rubber – 623 lpm (165 gpm)
- TPE – 630 lpm (166 gpm)
- Full-Stroke PTFE – 618 lpm (163 gpm)
- Reduced-Stroke PTFE – 496 lpm (131 gpm)
- Ultra-Flex™ – 526 lpm (139 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 6.4 mm (1/4")
- *Displacement Per Stroke:
- Rubber – 2.6 L (0.70 gal)
- TPE – 2.8 L (0.75 gal)
- Full-Stroke PTFE – 2.6 L (0.70 gal)
- Reduced-Stroke PTFE – 1.67 L (0.44 gal)
- Ultra-Flex™ – 2.12 L (0.56 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
The 2" P8 Wilden® Pro-Flo® Air Distribution System (ADS) provides outstanding energy conservation and maximizes the mean time between repairs (MTBR) for your Air-Operated Double-Diaphragm (AODD) pump. This durable system excels in various industrial applications, such as:
• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process
