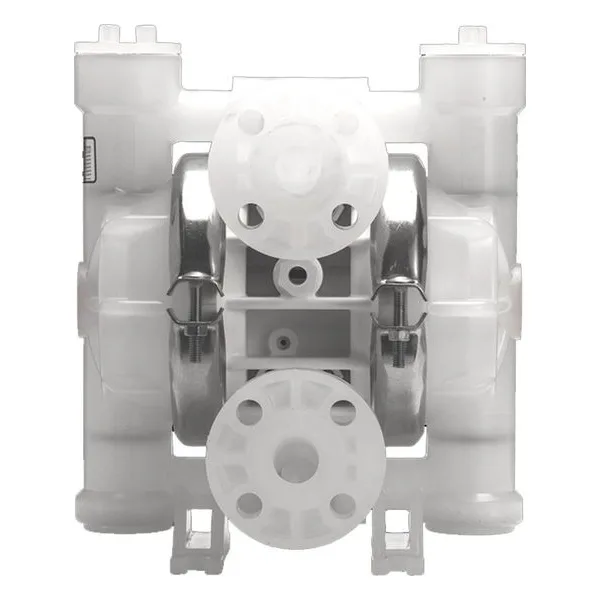

When Jim Wilden's 25mm (1") Pro-Flo® series first added a plastic pump series to his product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.
Features & Benefits
• DIN and ANSI flanged inlet/discharge liquid connections
• Rotatable inlet and discharge for flexibility
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Polypropylene - 8 kg (18 lb)
PVDF - 10 kg (23 lb)
Non-Wetted Housings - Materials
Center Section - Polypropylene, Acetal
Air Valve - Polypropylene, Acetal
Diaphragm Pump Specifications:
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 25 mm (1")
- Liquid Discharge: 25 mm (1")
- Connection Type: DIN/ANSI (Flanged)
- Maximum Suction Lift Capability:
- Rubber – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet
- TPE – 5.5 m (18.0') Dry, 8.8 m (29.0') Wet
- Full-Stroke PTFE – 4.1 m (13.6') Dry, 8.6 m (28.4') Wet
- Reduced-Stroke PTFE – 3.4 m (11') Dry, 8.8 m (29') Wet
- Maximum Flow Rate:
- Rubber – 140 lpm (37 gpm)
- TPE – 140 lpm (37 gpm)
- Full-Stroke PTFE – 139 lpm (36.8 gpm)
- Reduced-Stroke PTFE – 132 lpm (35 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 3.2 mm (1/8'')
- *Displacement Per Stroke:
- Rubber – 0.31 L (0.08 gal)
- TPE – 0.39 L (0.10 gal)
- Full-Stroke PTFE – 0.6 L (0.15 gal)
- Reduced-Stroke PTFE – 0.23 L (0.06 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
Excellent energy conservation and the maximum mean time between repair (MTBR) for your Air-Operated Double-Diaphragm (AODD) pump with the simple yet durable Wilden® Pro-Flo® Air Distribution System (ADS). The Pro-Flo excels in a wide variety of industrial pumping applications, such as:
• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process
