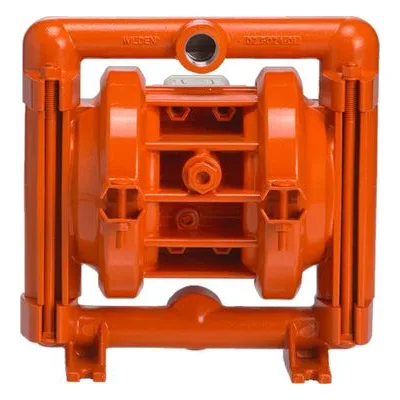

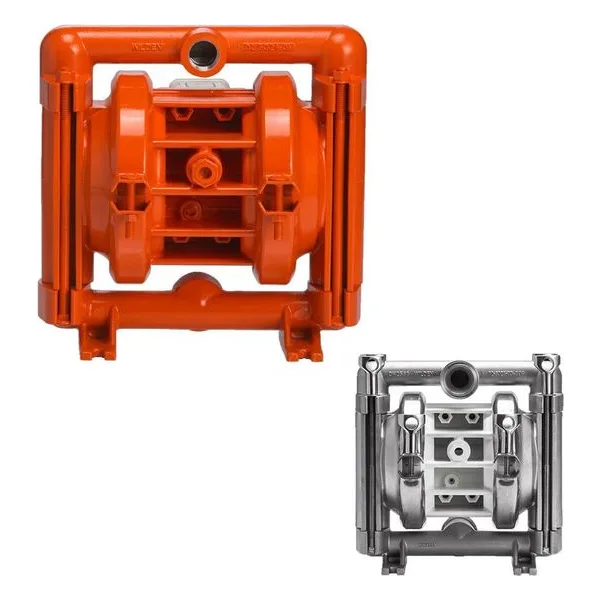

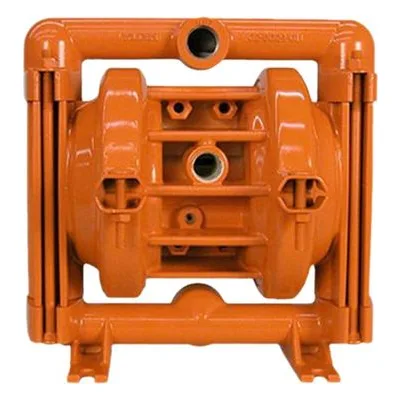

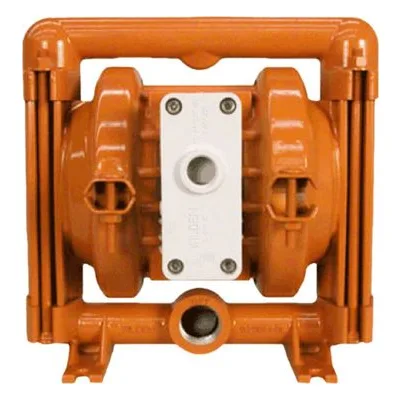

Featuring the original 25mm (1") Pro-Flo® Series air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Wilden clamped pumps have pumped billions of gallons of fluid on an year in and year out.
Features & Benefits
• NPT and BSP threaded inlet/discharge liquid connections for quick disconnect/connect
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Aluminum - 9 kg (20 lb)
Stainless Steel - 17 kg (37 lb)
Non-Wetted Housings - Materials
Center Section - Polypropylene, Acetal
Air Valve - Polypropylene, Acetal
Diaphragm Pump Specifications:
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 25 mm (1")
- Liquid Discharge: 25 mm (1")
- Connection Type: NPT/BSPT (Threaded)
- Maximum Suction Lift Capability:
- Rubber – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
- TPE – 7.6 m (25.0') Dry, 9.0 m (29.5') Wet
- Full-Stroke PTFE – 4.7 m (15.3') Dry, 9.0 m (29.5') Wet
- Reduced-Stroke PTFE – 2.8 m (9.1') Dry, 9.0 m (29.5') Wet
- Maximum Flow Rate:
- Rubber – 172 lpm (45.5 gpm)
- TPE – 171 lpm (45.2 gpm)
- Full-Stroke PTFE – 167 lpm (44.1 gpm)
- Reduced-Stroke PTFE – 155 lpm (41 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 3.2 mm (1/8'')
- *Displacement Per Stroke:
- Rubber – 0.3 L (0.08 gal)
- TPE – 0.3 L (0.08 gal)
- Full-Stroke PTFE – 0.3 L (0.08 gal)
- Reduced-Stroke PTFE – 0.3 L (0.08 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
First-rate energy conservation and the maximum mean time between repair (MTBR) for your Air-Operated Double-Diaphragm (AODD) pump with the simple yet durable Wilden® Pro-Flo® Air Distribution System (ADS). The Pro-Flo shines in a wide array of commercial and industrial pumping applications, such as:
• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process
