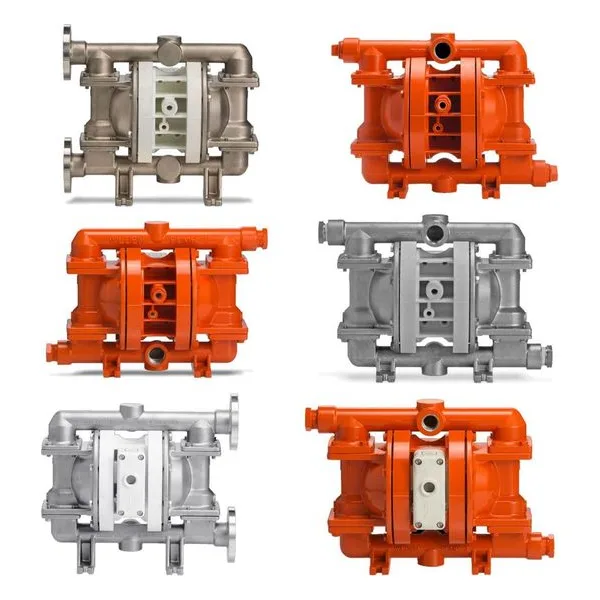

The Wilden® FIT 25mm (1") Pro-Flo® series bolted metal pump establishes a fresh benchmark for pump performance. With an enhanced flow path design, these bolted-construction pumps deliver improved flow rates (up to 35% higher than competitive models) and extended diaphragm life. Additionally, Wilden’s bolted pumps are designed for superior containment and share the same bolt-down footprint and inlet/discharge connections as Wilden clamped pumps, ensuring easy replacement.
Features & Benefits
• NPT or BSPT threaded inlet/discharge liquid connections (P220)
• DIN or ANSI flanged inlet/discharge liquid connections (P230) that don't require welding or nipple attachment
• Widest array of chemical compatibility
• Portable and submersible
• Large-solids passage
• High suction lift
• Ease of operation and maintenance
• Flexible internal adjustment on manifolds
• Increased on/off reliability
• Longest Mean Time Between Repair (MTBR)
Wetted Housings - Materials
Aluminum - 11 kg (24 lb)
Stainless Steel - 23 kg (51 lb)
Ductile Iron - 21 kg (47 lb)
Non-Wetted Housings - Materials
Center Section - Polypropylene, Acetal, Conductive Polypropylene
Air Valve - Polypropylene, Acetal, Conductive Polypropylene
Diaphragm Pump Specifications:
- Air Inlet: 1/4" FNPT
- Liquid Inlet: 25 mm (1")
- Liquid Discharge: 25 mm (1")
- Connection Type: NPT / BSPT (Threaded) | DIN/ANSI (Flanged)
- Maximum Suction Lift Capability:
- Rubber – 5.4 m (17.6') Dry, 9.3 (30.6') Wet
- TPE – 4.1 m (13.6') Dry, 9.3 (30.6') Wet
- Full-Stroke PTFE – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet
- Reduced-Stroke PTFE – 3.5 m (11.4') Dry, 9.3 m (30.6') Wet
- Maximum Flow Rate:
- Rubber – 212 lpm (56 gpm)
- TPE – 212 lpm (56 gpm)
- Full-Stroke PTFE – 185 lpm (49 gpm)
- Reduced-Stroke PTFE – 168 lpm (44 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 6.4 mm (1/4'')
- *Displacement Per Stroke:
- Rubber – 0.30 L (0.08 gal)
- TPE – 0.34 L (0.09 gal)
- Full-Stroke PTFE – 0.3 L (0.08 gal)
- Reduced-Stroke PTFE – 0.23 L (0.06 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
Pro-Flo® SHIFT (PS) iWilden Pumps are the industry’s premier air distribution system (ADS) that offers up to 60% energy savings and 34% greater flow rates compared to other AODD pump technologies1. This innovative system features an air control spool that automatically optimizes air consumption, conserving energy while maximizing mean time between repair (MTBR) for your AODD pump. Ideally suited for a wide variety of industrial applications, the Pro-Flo SHIFT is your go-to solution to maximize productivity and lower costs.
Applications
• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process
