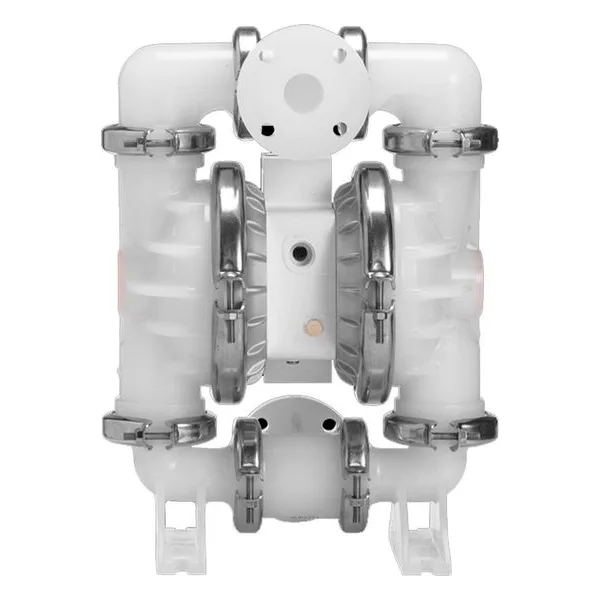

When the first 1 1/2", 38mm clamped plastic Pro-Flo Shift pump series was added to the Wilden product portfolio, he designed it with what he knew best: a clamped pump. Incorporating the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden's clamped plastic pumps have pumped billions of gallons of fluid on an annual basis.
Features & Benefits
• DIN and ANSI flanged inlet/discharge liquid connections
• Rotatable inlet and discharge for flexibility
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Polypropylene - 18 kg (40 lb)
PVDF - 24 kg (52 lb)
Non-Wetted Housings - Materials
Center Block - Polypropylene, Aluminum, Stainless Steel
Air Valve - Polypropylene, Aluminum Stainless Steel
Air Chamber - Aluminum, PFA-Coated Aluminum, Stainless Steel
Diaphragm Pump Specifications:
- Air Inlet: 3/4" FNPT
- Liquid Inlet: 38 mm (1-1/2")
- Liquid Discharge: 38 mm (1-1/2")
- Connection Type: DIN/ANSI (Flanged)
- Maximum Suction Lift Capability:
- Rubber – 5.9 m (19.5') Dry, 8.3 (27.2') Wet
- EZ-Install TPE – 6.2 m (20.4') Dry, 8.3 m (27.2') Wet
- Full-Stroke PTFE – 6.1 m (19.9') Dry, 8.3 m (27.2') Wet
- Maximum Flow Rate:
- Rubber – 379 lpm (100 gpm)
- EZ-Install TPE – 378 lpm (100 gpm)
- Full-Stroke PTFE – 368 lpm (98 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 4.8 mm (3/16")
- *Displacement Per Stroke:
- Rubber –1.0 L (0.26 gal)
- EZ-Install TPE – 1.0 L (0.26 gal)
- Full-Stroke PTFE – 1.0 L (0.26 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene |-18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
