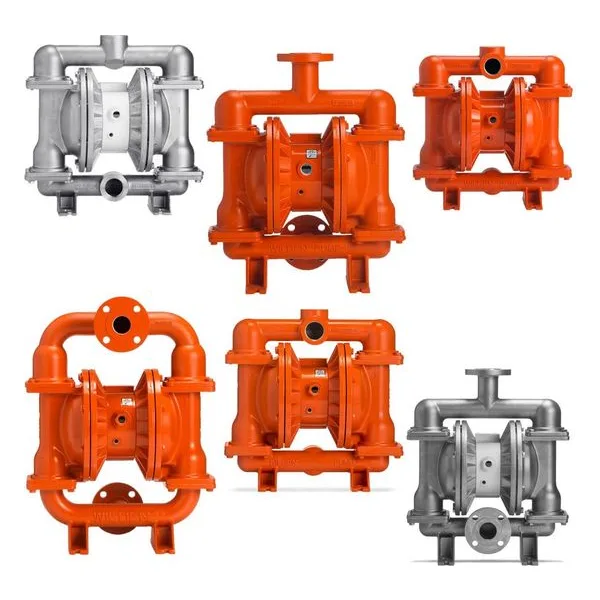

The Pro-Flo P420 / P430 Wilden® bolted metal pump, also known as FIT, sets the latest standard for pump performance. 1 1/2" / 38mm AODD pumps feature an enhanced flow path design, Wilden's bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improving diaphragm life overall. Wilden bolted diaphragm pumps are also designed for exceptional containment and have the exact bolt down footprint and inlet / outlet discharge connections as Wilden clamped pumps for easy replacement.
Features & Benefits
• NPT or BSPT threaded inlet/discharge liquid connections (P420)
• DIN or ANSI flanged inlet/discharge liquid connections (P430) that don't require welding or nipple attachment
• Largest chemical compatibilities
• Portable and submersible
• Large-solids passage
• High suction lift
• Ease of operation and maintenance
• Flexible internal adjustment on manifolds
• Increased on/off reliability
• Longest Mean Time Between Repair (MTBR)
Wetted Housings - Materials
Aluminum - 26 kg (57 lb) (P420) | 28 kg (62 lb) (P430)
Stainless Steel - 50 kg (111 lb) (P420) | 53 kg (116 lb) (P430)
Ductile Iron - 39 kg (86 lb) (P420) | 42 kg (92 lb) (P430)
Non-Wetted Housings - Materials
Center Section - Polypropylene
Air Valve - Polypropylene
Air Chamber - Aluminum
Diaphragm Pump Specifications:
- Air Inlet: 1/2" FNPT
- Liquid Inlet: 38 mm (1-1/2")
- Liquid Discharge: 38 mm (1-1/2")v
- Connection Type: NPT/BSPT (Threaded) | DIN/ANSI (Flanged)
- Maximum Suction Lift Capability:
- Rubber – 5.5 m (18.2') Dry, 9.0 m (29.5') Wet
- EZ-Install TPE – 4.8 m (15.9') Dry, 9.0 m (29.5') Wet
- Full-Stroke PTFE – 5.2 m (17.0') Dry, 9.0 m (29.5') Wet
- Reduced-Stroke PTFE – 2.8 m (15.9') Dry, 9.0 m (29.5') Wet
- Maximum Flow Rate:
- Rubber – 492 lpm (130 gpm)
- EZ-Install TPE – 492 lpm (130 gpm)
- Full-Stroke PTFE – 473 lpm (125 gpm)
- Reduced-Stroke PTFE – 341 lpm (90 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 6.4 mm (1/4")
- *Displacement Per Stroke:
- Rubber – 1.2 L (0.32 gal)
- TPE – 1.2 L (0.32 gal)
- Full-Stroke PTFE – 1.1 L (0.28 gal)
- Reduced-Stroke PTFE – 0.53 L (0.14 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.
Exceptions energy conservation and the first-rate mean time between repair (MTBR) for your Air-Operated Double-Diaphragm (AODD) pump with the simple yet durable Wilden® Pro-Flo® Air Distribution System (ADS). The Pro-Flo excels in a wide variety of commercial and industrial applications, such as:
• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process
