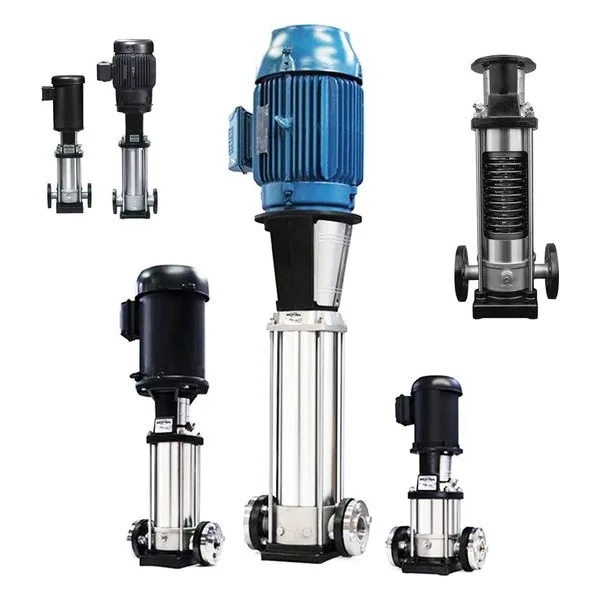

NV Series Vertical Boosters: Maximum Power, Minimum Footprint.
When performance is non-negotiable but space is limited, the NV Series is the definitive solution. These Vertical Multistage Booster Pumps are specifically engineered with an in-line, space-saving design, making them the ideal, seamless fit for compact mechanical rooms and high-density packaged skid systems.
Reliability Vetted. Confidence Guaranteed.
We don't just build pumps—we certify their performance. Every NV Series vertical booster undergoes our intensive, rigorous quality assurance testing program. This commitment to quality assures peak hydraulic performance and delivers invaluable peace of mind to both you and your customer.
Choose the NV Series for reliable, efficient pressure and flow across your most demanding industrial, commercial, and agricultural applications.
NV Series Vertical Boosters: Engineered for Efficiency and Durability.
Maximize performance while minimizing footprint. The NV Series delivers robust multistage boosting solutions, built with compliance and longevity in mind.
Key Features for Seamless Integration
These design elements ensure simplified installation, operation, and maintenance:
Space-Saving Design: Features an in-line configuration with suction and discharge on the same plane, making them a drop-in, efficient fit for tight installations and packaged skid systems.
Maintenance Simplified: Equipped with maintenance-free cartridge type mechanical seals to reduce downtime and service costs.
Built for Longevity: Constructed entirely with wetted parts in high-grade 304 or 316 Stainless Steel for superior corrosion resistance and lasting reliability.
Easy Conversion: Designed as a straightforward drop-in replacement for existing vertical multistage installations.
Ready for Action: Comes standard with a TEFC (Totally Enclosed Fan Cooled) motor enclosure for reliable operation in challenging environments.
Certified Purity: Meets stringent NSF/ANSI 61 and 372 standards, guaranteeing safety for drinking water applications.
Performance Specifications
Engineered for high capacity and pressure across a broad range of demanding applications:
Specification | Range / Value |
Horsepower (HP) | 0.5 to 60 HP (60Hz) |
Max Capacity | Up to 600 GPM |
Max Pressure | Up to 380 PSI |
Max Fluid Temp. | Up to 248°F (120°C) |
Ideal Applications & Critical Services
The NV Series is your versatile workhorse for high-pressure fluid handling across major industries:
Water Management: Water Supply, Boosting, Circulation, and Irrigation Systems.
Purification & Treatment: Reverse Osmosis, Filtration, Water Treatment Plants, and Boiler Feed.
Pressure Systems: Washing Systems, Jockey Pumps, Sprinkler Systems, and Heat Exchangers.
