2TC7020

Image shown may not be actual product

2TC7020

0 reviews

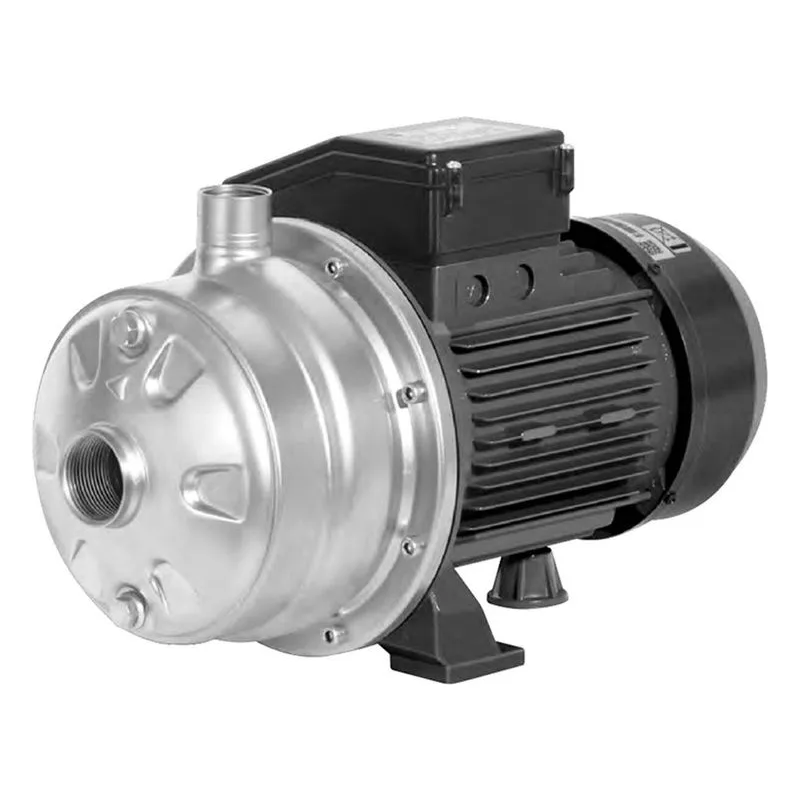

Webtrol 2TC7020 2TC Series High Head Stainless Steel 2-Stage Centrifugal Pump. 1.25" FNPT Suction, 1" FNPT Discharge, 2 Stages. 2 HP, 230/460 Volt, 60 Hz, 1Ph (Single Phase), 3450 RPM, TEFC - Totally Enclosed Fan Cooled Motor. 304L SS Impeller(s), 304L SS Shaft, Carbon / Ceramic Shaft Seal.

Pump Catalog Price
Retail Price: $1,742.67
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 2TC7020

Overview
Series Info
Reviews
Literature/Manuals

2TC7020

Bracket Material	Aluminum/Cast Iron
Casing Material	304L SS
Connection Type	FNPT
Discharge NPT (Inches)	1"
Drive Shaft	304L SS
HP	2
Hz	60
Impeller Material	304L SS
Includes	Pump & Motor
Maximum Working Pressure (PSIG)	107
Model Series	2TC Series
Motor Enclosure Type	TEFC - Totally Enclosed Fan Cooled

Number of Stages	2
Part Type	Centrifugal Pump
Phase	1Ph (Single Phase)
Pole	2
Rotary	Ceramic
Shaft Seal Material	Carbon / Ceramic
Speed (RPM)	3450
Stationary	Carbon
Suction NPT (Inches)	1.25"
Voltage	230/460

High Head Stainless Steel Centrifugal Pumps, 2TC Series Information

Features & Benefits: Dual-Stage Power, Exceptional Efficiency

The 2TC Series is engineered for applications demanding sustained high head, offering superior efficiency and maintenance ease within a robust design.

Engineering for High Head & Durability

These features guarantee powerful, reliable performance where single-stage pumps fall short:

Corrosion-Proof Core: Constructed with a 304 Stainless Steel pump case, motor bracket, and impeller for maximum corrosion resistance and longevity.
Non-Stop Reliability: Features a non-overloading motor rated for continuous duty, ensuring maximum uptime and system stability.
Maximized Efficiency:High operating efficiency directly translates to lower energy consumption and reduced operational costs.
Seamless Power: Utilizes a close-coupled design for smooth power transmission and a compact footprint.
Reliable Sealing: Equipped with a mechanical seal for maximum fluid containment and reliability.

Simplified Installation & Service

Service in Place: The Back Pullout design allows for easy servicing without disconnecting the piping, dramatically reducing downtime.
Balanced Flow: Features a Centerline Discharge for balanced forces and straightforward piping alignment.

Performance Specifications

Engineered to deliver high pressure across a compact range of flow:

Specification	Range / Value
Horsepower (HP)	2 to 5 HP (60Hz)
Max Capacity	Up to 65 GPM
Max Pressure	Up to 107 PSI
Max Fluid Temp.	Up to 212°F (100°C)

Typical Services & High-Pressure Applications

The 2TC Series is the specialized choice for systems requiring elevated pressure and consistent flow:

Water Treatment: Deionized Systems, Reverse Osmosis Systems, and Pre-Filter Charge Systems.
Circulation & Transfer: Distribution Systems, Liquid Transfer, and General Circulation Systems.
HVAC & Cooling: Condensation Systems and Cooling Tower Systems.
Cleaning: Car Wash Systems.
