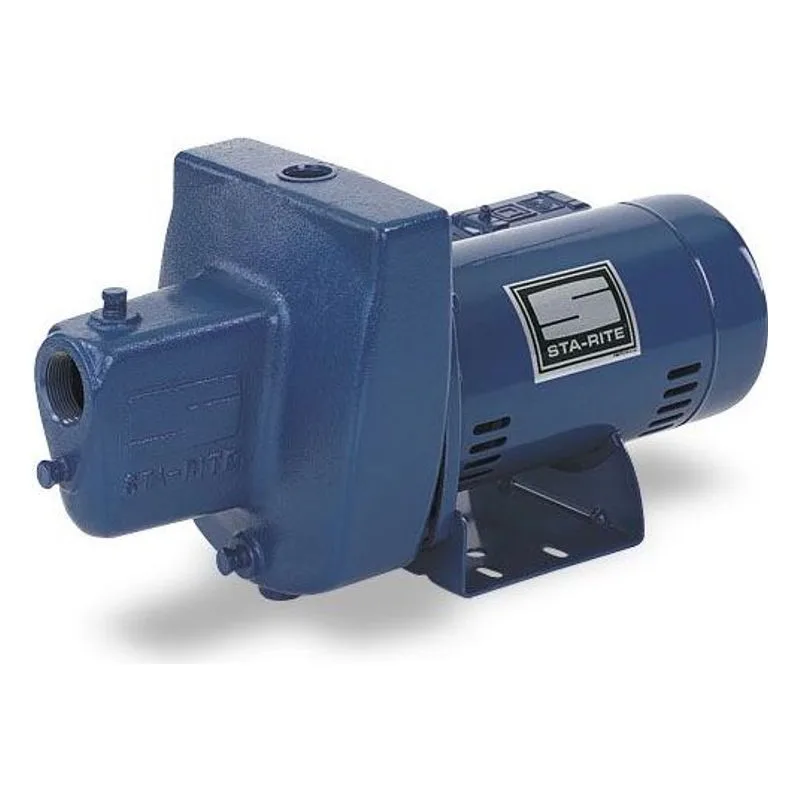

STA-RITE Pumps SNF, SN Series, Cast Iron ProJet Shallow Well Pump, 1-1/2 HP
|Quick Specs||SN Series – Cast Iron ProJet Shallow Well|
|Features & Benefits|
|Sta-Rite SN Series ProJet Shallow Well Jet Pump Features And Benefits:|
Quality Construction - Close-grained cast iron body. Drain port provided for easy winterizing
Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
Motor Windings - Superior insulation materials protect against excessive moisture and contaminants…assure prolonged motor life.
Heavy-duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation.
High-flow version of the 1/2 HP model allows higher flow rates with less horsepower and pressure
|Sta-Rite SN Series ProJet Shallow Well Jet Pump General Specifications:|
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 1/2, 3/4, 1, and 1-1/2 HP
MAXIMUM CAPACITY: 13.7 GPM (SNC-HF25L model)
FLOW at 10' LIST and 40 PSI: 11.4 GPM (SND model)
MAX LIFT: 25'
MAXIMUM SHUT-OFF PRESSURE: 70 PSI (on SNC & SND models)
MAXIMUM INLET PRESSURE: 50 PSI (inlet pressure + discharge not to exceed 100 psi)
PRESSURE SWITCH SETTING: 30 - 50 PSI (except Hi-Flow model SNC-HF25L uses 20-40)
SUCTION SIZE: 1-1/4" NPT
DRIVE SIZE: n/a
DISCHARGE SIZE: 1" NPT
AMP DRAW (at full load):
RECOMMENDED BREAKER: Model and Voltage Dependent
VOLTAGE: 115v / 230v, 60Hz, 1-phase
MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
