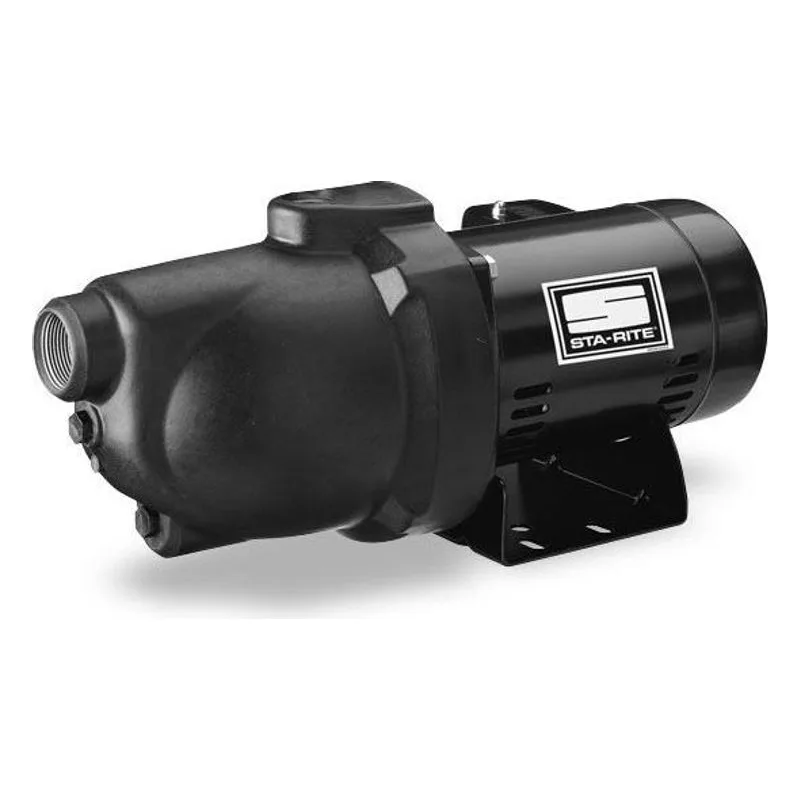

STA-RITE Pumps PNC, PN Series, Composite Shallow Well Pump, 1/2 HP
|Quick Specs||PN Series – Composite Shallow Well|
|Features & Benefits|
|Sta-Rite PN Series Shallow Well Jet Pump Features And Benefits:|
Quality Construction - Fiberglass-reinforced thermoplastic polypropylene body provides total corrosion resistance and high resistance to abrasion. Polycarbonate Impeller - Precision-molded for perfect balance…ultra-smooth for highest performance and efficiency.
Precision Molded Diffuser - Polypropylene diffuser allows pump to prime faster, handle more air.
Heavy-duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation.
|Sta-Rite PN Series Shallow Well Jet Pump General Specifications:|
BODY CONSTRUCTION: Thermoplastic
HORSEPOWER: Available in 1/2, 3/4, or 1 HP
MAXIMUM CAPACITY: 18 GPM (PNE model)
FLOW at 10' LIFT and 40 PSI: 10.7 GPM (PND model)
MAX LIFT: 25'
MAX SHUT-OFF PRESSURE: 78 PSI (model PND)
MAXIMUM INLET PRESSURE: 22 PSI
PRESSURE SWITCH SETTING: 30 - 50 PSI
SUCTION SIZE: 1-1/4" NPT
DRIVE SIZE: n/a
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load) - 1 HP: 7.4 amps on 230v / 14.8 amps on 115v
AMP DRAW (full load) - 3/4 HP: 6.2 amps on 230v / 12.4 amps on 115v
AMP DRAW (full load) - 1/2 HP: 4.95 amps on 230v / 9.9 amps on 115v
VOLTAGE: 230V / 115V
RECOMMENDED BREAKER: see owner's manual
LIQUID TEMPERATURE: 140 °F ,,,/,,(60 °C)
