Image shown may not be actual product
JBHET-63S

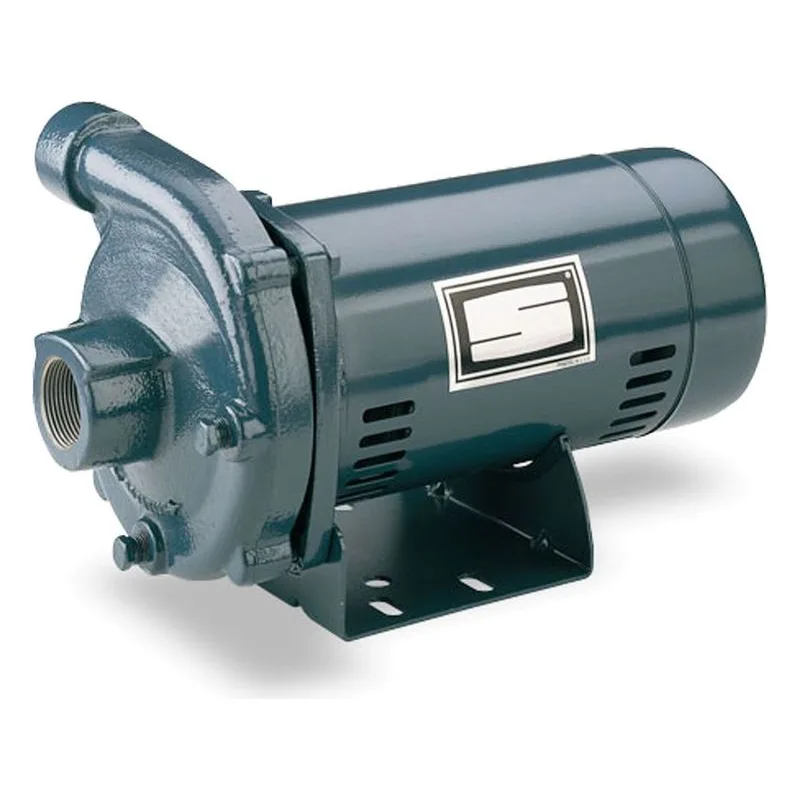

Sta-Rite JBHET-63S JB Series High Head Centrifugal Pump. 1 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase) Motor, Silicon Bronze Impeller, 1-1/4" Suction, 1" Discharge, Manufactured by Pentair.
- Pump Catalog Price
Retail Price: $1,922.40How come you don't show price?Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
JBHET-63S
Sta-Rite JBHET-63S JB Series High Head Centrifugal Pump. 1 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase) Motor, Silicon Bronze Impeller, 1-1/4" Suction, 1" Discharge, Manufactured by Pentair.
| Discharge NPT (Inches) | 1" |
| HP | 1 |
| Hz | 60 |
| Impeller Material | Silicon Bronze |
| Maximum Operating Temperature | 225 °F |
| Motor Shaft Material | Stainless Steel |
| Phase | 1 Ph (Single Phase) |
| Quick Specs | CENT PUMP 1HP 115/230V |
| Shaft Seal Material | Carbon/Ceramic |
| Suction NPT (Inches) | 1-1/4" |
| Type | High Head |
| UPC | 022315144347 |
| Voltage | 115/230 |
J JB High Head Centrifugal Pumps Information
| Features & Benefits |
|---|
| Sta-Rite J And JB Series High Head Centrifugal Pumps Features And Benefits: Drain port provides for easy winterizing Series delivers up to 140' of head, with flow rates up to 90 GPM (see dealer for specifics) Replaceable wear ring and simple back pull-out design provide easy serviceability Silicon bronze impellers and shaft seals (in JB series) allow use with water up to 125°F |
| General Description |
| Sta-Rite J And JB Series High Head Centrifugal Pumps General Specifications: BODY CONSTRUCTION: Cast Iron HORSEPOWER: Available in 1/3 thru 2-1/2 HP MAXIMUM CAPACITY: 144 GPM (model JBHHG or JBHHG3) FLOW at 10' LIFT and 30 PSI: 44 GPM (model JBHE or JBHE3) MAX LIFT: 25' MAXIMUM DISCHARGE PRESSURE: 60 PSI (2-1/2 HP model) MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): 1/2 & 3/4 HP: 80 PSI / 1 HP: 100 PSI / 1.5 HP: 115 PSI / 2 HP: 130 PSI / 2.5 HP: 140 psi SUCTION SIZE: 1/3 thru 1-1/2HP: 1-1/4"NPT / 2HP: 1-1/2"NPT / 2-1/2HP: 2"NPT DISCHARGE SIZE: 1/3 thru 1-1/2HP: 1"NPT / 2HP: 1-1/4"NPT / 2-1/2HP: 1-1/2"NPT VOLTAGE: 115v only | 115v/230v 1-phase | 208v-230v/460v, 3-phase, all 60 Hz (model dependent) MAXIMUM LIQUID TEMPERATURE: with Noryl® impeller: 140°F (60°C) | with Silicon Bronze impeller: 225°F (107°C) |
