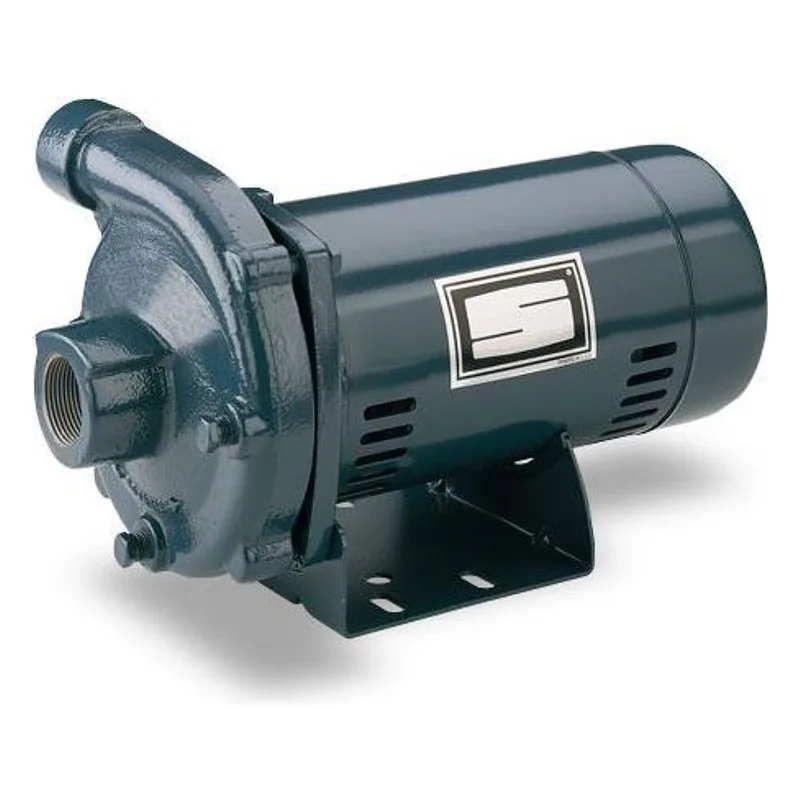

STA-RITE Pumps JBHD3, J and JB Series Centrifugal Pumps, High Head, 3/4 HP, 208-230/460 Volts, 3 Phase, BRASS IMPELLER
|Quick Specs||High Head|
|Features & Benefits|
|Sta-Rite J And JB Series High Head Centrifugal Pumps Features And Benefits:|
Drain port provides for easy winterizing
Series delivers up to 140' of head, with flow rates up to 90 GPM (see dealer for specifics)
Replaceable wear ring and simple back pull-out design provide easy serviceability
Silicon bronze impellers and shaft seals (in JB series) allow use with water up to 125°F
|Sta-Rite J And JB Series High Head Centrifugal Pumps General Specifications:|
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 1/3 thru 2-1/2 HP
MAXIMUM CAPACITY: 144 GPM (model JBHHG or JBHHG3)
FLOW at 10' LIFT and 30 PSI: 44 GPM (model JBHE or JBHE3)
MAX LIFT: 25'
MAXIMUM DISCHARGE PRESSURE: 60 PSI (2-1/2 HP model)
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): 1/2 & 3/4 HP: 80 PSI / 1 HP: 100 PSI / 1.5 HP: 115 PSI / 2 HP: 130 PSI / 2.5 HP: 140 psi
SUCTION SIZE: 1/3 thru 1-1/2HP: 1-1/4"NPT / 2HP: 1-1/2"NPT / 2-1/2HP: 2"NPT
DISCHARGE SIZE: 1/3 thru 1-1/2HP: 1"NPT / 2HP: 1-1/4"NPT / 2-1/2HP: 1-1/2"NPT
VOLTAGE: 115v only | 115v/230v 1-phase | 208v-230v/460v, 3-phase, all 60 Hz (model dependent)
MAXIMUM LIQUID TEMPERATURE: with Noryl® impeller: 140°F (60°C) | with Silicon Bronze impeller: 225°F (107°C)
