HPS20G-01

Image shown may not be actual product

HPS20G-01

0 reviews

HPS20G-01 STA-RITE HPS Series High-Pressure Booster Pump, Stainless Steel - 2 HP, 230 Volts, 60 Hz, Single Phase, ODP - Open Drip Proof Motor Enclosure, 11 Stages, 20 GPM, 1" NPT Suction, 1" NPT Discharge.

Pump Catalog Price
Retail Price: $3,640.00
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: HPS20G-01

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

HPS20G-01

Adapter Material	Stainless Steel
Diffuser Material	Polycarbonate
Discharge NPT (Inches)	1" NPT
Discharge Type	Stainless Steel
HP	2
Hz	60
Impeller Material	Acetal (R)
Max Suction Lift	15'
Motor Enclosure Type	ODP - Open Drip Proof

Motor Shaft Material	304 Stainless Steel
Nominal Flow	20 GPM
Number of Stages	11
Phase	1 Ph (Single Phase)
Quick Specs	BOOSTER PUMP 2HP 1PH SS
Shaft Seal Material	Carbon / Ceramic / Buna-N
Suction NPT (Inches)	1" NPT
Voltage	230

HPS High-Pressure Booster Pumps Information

Features & Benefits
Sta-Rite HPS Series High-Pressure Booster Features And Benefits: Proven SignaSeal staging system utilizes a ceramic wear surface that dominates with 1st-in-class performance. Superior sand-handling and thrust management staging system Precision-molded acetal impellers for perfect balance. Ultra-smooth for highest performance and efficiency Precision-molded diffusers offer superior performance with high resistance to corrosion and abrasion Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel parts guarantees continuous water lubrication Superior motor winding insulation materials protect against excessive moisture and contaminants assuring prolonged motor life Precision rotor is die-cast under high pressures for uniform performance and greater efficiency All electrical components are protected from dirt, dust, and insects by a dustproof canopy which the ventilating air cannot contaminate
General Description
Sta-Rite HPS Series High-Pressure Booster General Specifications: PERFORMANCE SERIES: Available in 7 thru 30 GPM Series HORSEPOWER: Available in 1/2 thru 3 HP VOLTAGE: Available in 115, 208v, 230v, or 460v, 60 Hz (model dependent) NUMBER OF STAGES: 6 - 16 (model dependent) INLET SIZE: 3/4" to 1-3/2" NPT (model dependent) OUTLET SIZE: 3/4" to 1-3/2" NPT (model dependent) MAXIMUM INLET PRESSURE: 80 PSI MAXIMUM WORKING PRESSURE: 315 PSI MAXIMUM SUCTION LIFT: 15 ft MAXIMUM WATER TEMPERTURE: Prolonged use with liquids above 140° F is not recommended DISCHARGE MATERIAL: stainless steel MOTOR ADAPTER & BASE: stainless steel SHELL: 304 Stainless Steel IMPELLER: acetal DIFFUSER: Polycarbonate SHAFT: 304 Stainless Steel O-RINGS: Buna-N MECHANICAL SEAL: Carbon/ceramic, Buna-N

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	HPS High Pressure Booster Brochure		View
	HPS High Pressure Booster Manual		View

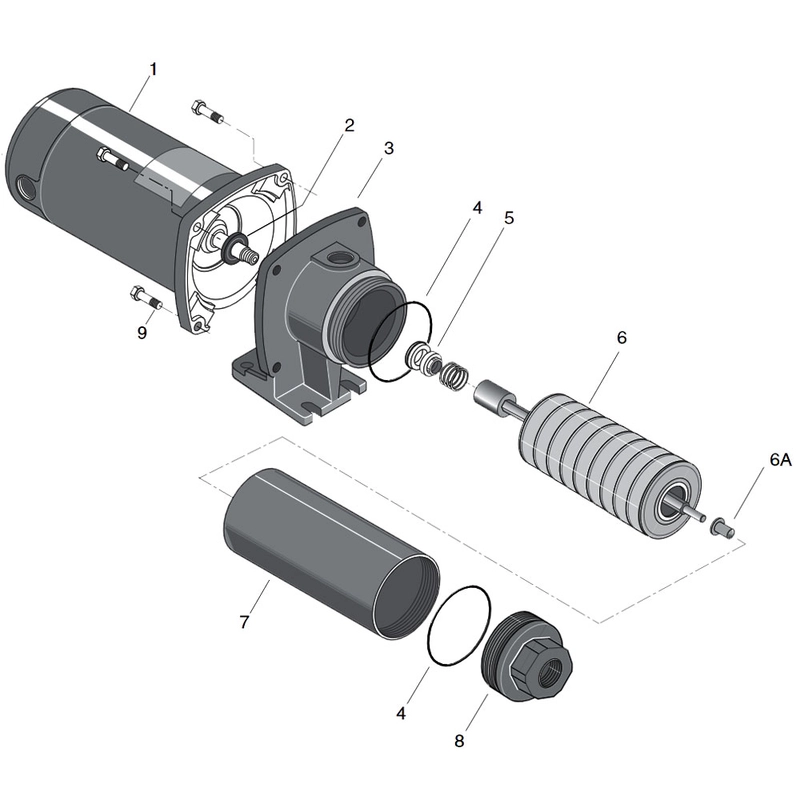

Repair Parts for HPS20G-01

	shipping	price
J218-628APKG	Ships in	$1,572.00	Select item
AP100GH	Ships in	Call for pricing
17351-0009	Ships in	$4.83	Select item
C2-86SSA	Lead Time TBD	$1,135.00	Select item
U9-430	Ships in 1 Week	Call for pricing
U109-118	Ships in 1 Week	$147.00	Select item
P325-432R	Ships in 1 Week	$999.00	Select item
W31112	Ships in 1 Week	Call for pricing
P56-452SSL	Lead Time TBD	Call for pricing
C152-4A	Lead Time TBD	$306.00	Select item
S25983	Lead Time TBD	Call for pricing
PKG 83	Ships in	$215.82	Select item
PKG 84	Ships in	$874.17	Select item
PKG 85	Ships in	Call for pricing
PKG 86	Ships in	$294.03	Select item
PKG 96	Ships in	Call for pricing
