HNC-L

0 reviews

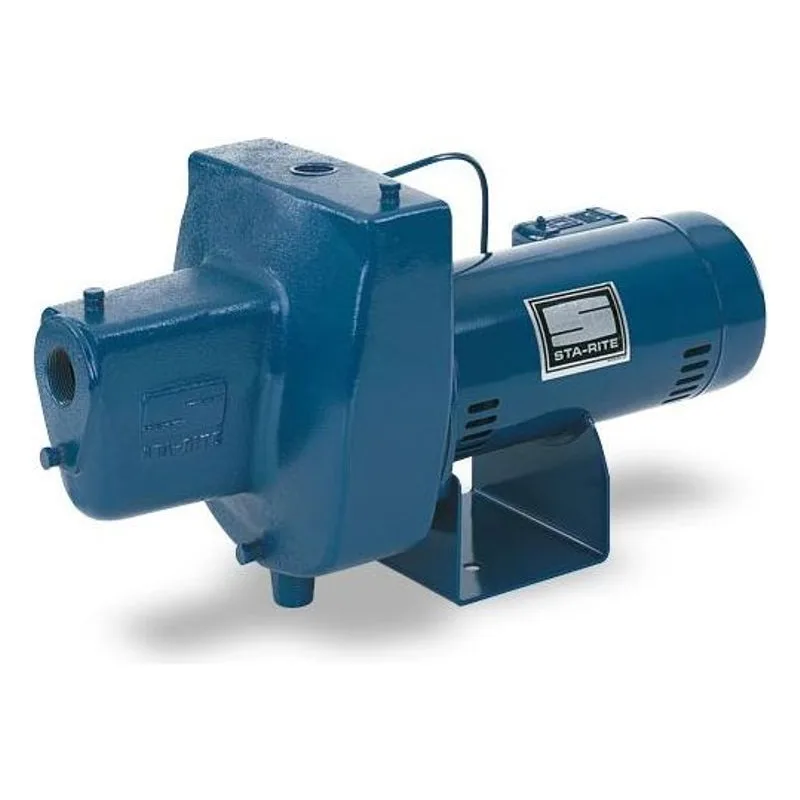

HNC-L STA-RITE HN Series Shallow Well Jet Pump - 1/2 HP, 115/230 Volts, 60 Hz, Single Phase, 1-1/4" NPT Suction, 1" NPT Discharge, 18.7" Length.

Pump Catalog Price
Retail Price: $1,008.00
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Item: HNC-L

HNC-L STA-RITE HN Series Shallow Well Jet Pump - 1/2 HP, 115/230 Volts, 60 Hz, Single Phase, 1-1/4" NPT Suction, 1" NPT Discharge, 18.7" Length.

Diffuser Material	Reinforced Polypropylene
Discharge NPT (Inches)	1" NPT
HP	0.5
Hz	60
Impeller Material	High-strength Lexan
Material	Cast Iron
Motor Shaft Material	One-piece threaded 416 stainless steel

Features & Benefits
Sta-Rite HN Series Shallow Well Jet Pump Features And Benefits: Quality Construction - Close-grained cast iron body. Drain port provided for easy winterizing Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. Motor Windings - Superior insulation materials protect against excessive moisture and contaminants…assure prolonged motor life. Heavy-duty Ball Bearings - Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation.
General Description
Sta-Rite HN Series Shallow Well Jet Pump General Specifications: BODY CONSTRUCTION: Cast Iron HORSEPOWER: Available in 1/2, 3/4, and 1 HP MAXIMUM CAPACITY: 28.5GPM (HNE model) FLOW at 10' LIFT and 40 PSI: 18.7 GPM (HND model) MAX LIFT: 25' MAX SHUT-OFF PRESSURE: 70 PSI (model HNC) MAXIMUM INLET PRESSURE: 50 psi (inlet pressure + discharge not to exceed 100 psi) PRESSURE SWITCH SETTING: 30-50 PSI SUCTION SIZE: 1-1/4" NPT DRIVE SIZE: n/a DISCHARGE SIZE: 1" NPT AMP DRAW (full load): 19.2 amps (1 HP running on 115v) VOLTAGE: 230v / 115v AC, 60 Hz, single-phase (factory pre-set at 230v) RECOMMENDED BREAKER: Model and Voltage Dependent MAXIMUM LIQUID TEMPERATURE: 140°F / 60°C
