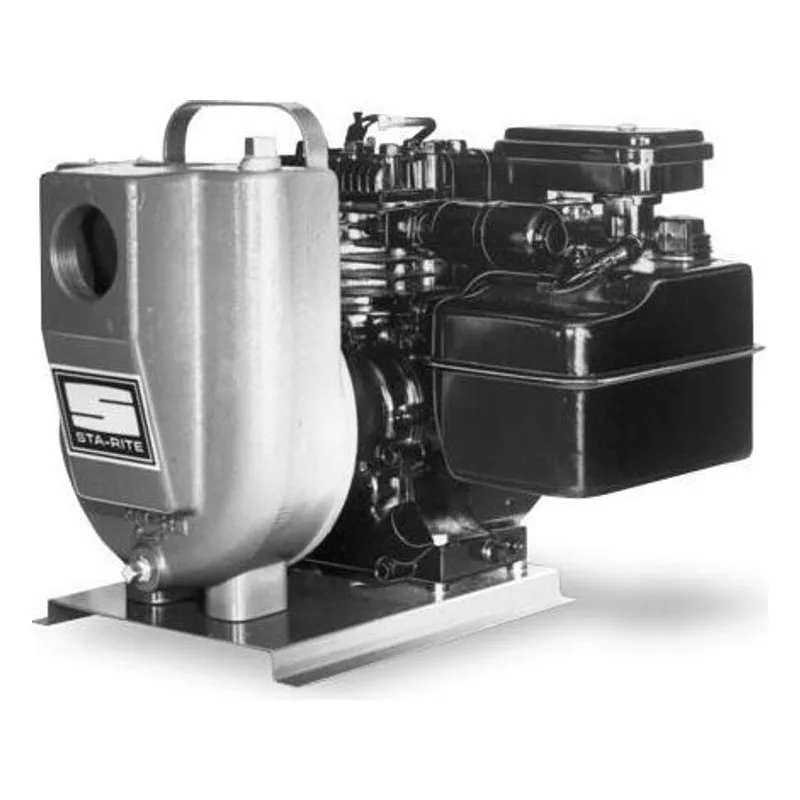

STA-RITE Pumps EEDD, Gasoline Engine Driven Pumps*
|Connections / Discharge (Inches)||2" NPT|
|Features & Benefits|
|Sta-Rite EEDD, EDDH, EEDDH Engine-Driven Self-Priming Pumps Features And Benefits:|
Close-coupled EDDH has pump and engine close-coupled on an all-steel base. Features 5/8" diameter ductile iron shaft extension
Frame-mounted EEDDH features pump and engine frame-mounted on an all-steel base. Stub shaft allows easy replacement with otber gasoline powered engines. This unit has a 3/4" keyed ductile iron shaft extension
Order model EEDD for pump only. To be used with 5/8" or 3/4" shaft in gasoline engine-powered applications. (You supply engine)
|Sta-Rite EEDD, EDDH, EEDDH Engine-Driven Self-Priming Pumps General Specifications:|
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 3 HP (n/a for EEDD)
MAXIMUM CAPACITY: 125 GPM
FLOW at 10' LIFT and 40 PSI: 70 GPM
MAX LIFT: 25'
MAXIMUM DISCHARGE PRESSURE: 39 PSI
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): EDD: Unpublished / EDDH:90 : PSI / EEDDH: 90 PSI
SUCTION SIZE: 2" NPT
DISCHARGE SIZE: 2" NPT
