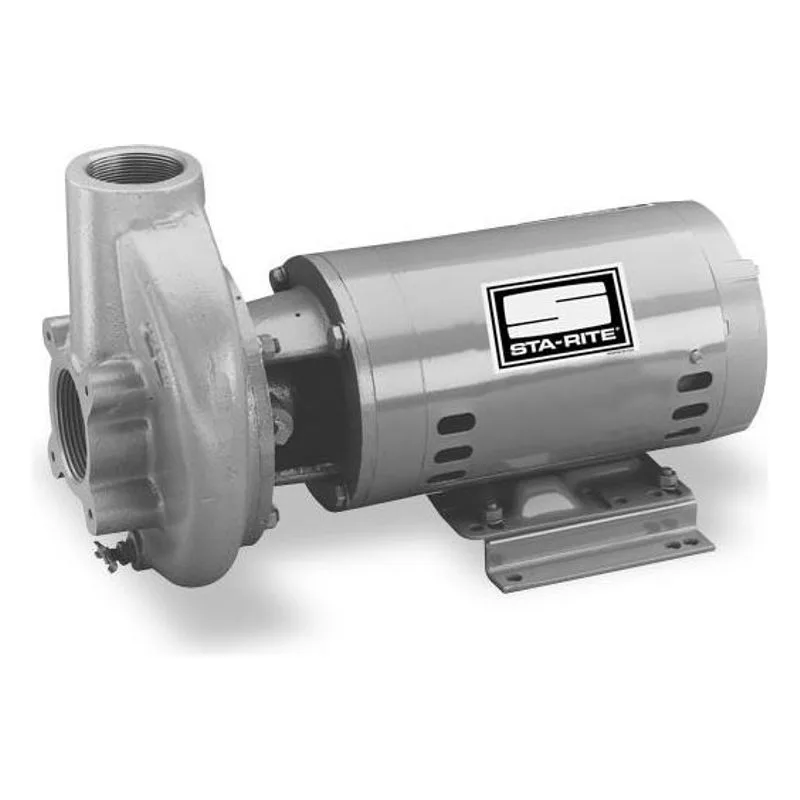

STA-RITE Pumps CCHJ, CC Series Centrifugal Pumps, 5 HP, 230 Volts, 1 Phase, CCH HIGH HEAD
|Type||CCH HIGH HEAD|
|Features & Benefits|
|Sta-Rite CC Series Centrifugal Pumps Features And Benefits:|
Can be installed where most other 3 and 5 HP pumps will not fit… requires just 11-3/8" x 18-1/2". Complete pumps weigh only 66 to 94 lbs.
4-Position discharge permits installation with discharge horizontal or vertical, to right or left. Volute features drain port which is functional when discharge is vertical
Silicon brass impeller is precision cast and machined.Dynamically balanced for long seal life and quiet operation. Non-overloading. Contains no lead. Silicon brass wear ring is replaceable.
Back pull-out design: entire motor may be removed for servicing impeller, seal or motor without disturbing plumbing. Centerline discharge for ease of installation.
Mechanical shaft seal with ceramic and carbon seal faces. Stainless steel spring and Buna-N bellows
|Sta-Rite CC Series Centrifugal Pumps General Specifications:|
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: Available in 3 or 5HP
MAXIMUM CAPACITY: 222 GPM (model CCHJ or CCHJ3)
FLOW at 10' LIFT and 30 PSI: 98 GPM (model CCHH or CCHH3)
MAX LIFT: 25'
MAXIMUM DISCHARGE PRESSURE: 40 PSI
MAXIMUM INLET PRESSURE:
MAXIMUM TOTAL PRESSURE: 75 PSI
SUCTION SIZE: 2-1/2" NPT
DISCHARGE SIZE: 2" NPT
VOLTAGE: 230v 1-phase OR 230v/460v 3-phase, 60 Hz
MAXIMUM LIQUID TEMPERATURE: 125°F (52°C)
