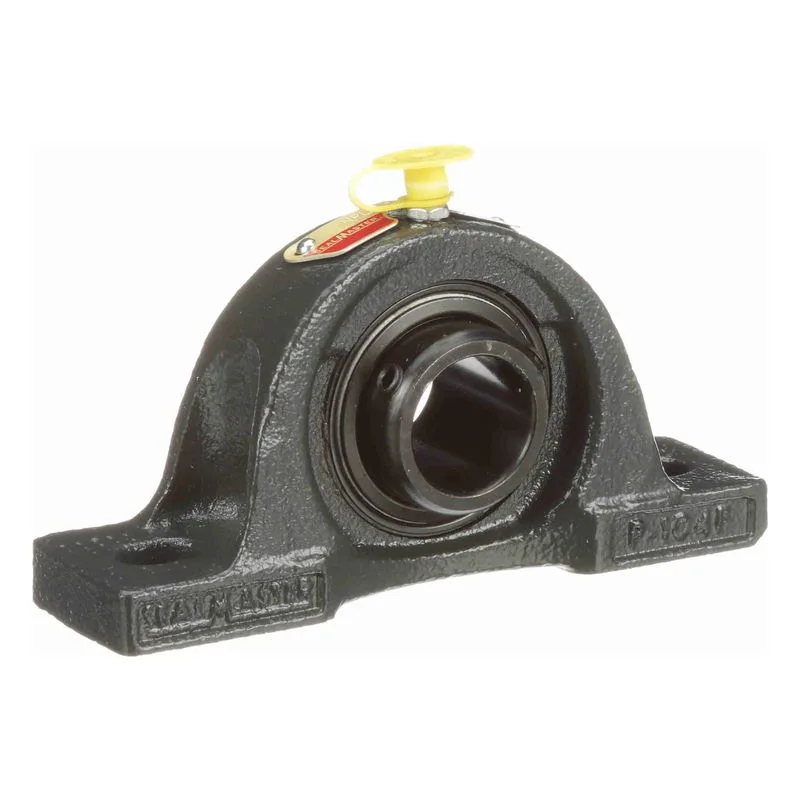

Sealmaster NPL-13 Gold Line Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing, 52100 Bearing Steel, Black Oxided w/Setscrew Lock, Item# 700569. Non-Expansion (Fixed), 0.8125" Straight Bore, ±2.0° Static Only Misalignment, Lithium Complex NLGI 2 Grease, Relubricatable. Felt Labyrinth Seal. Zone-Hardened Inner Race, Standard Clearance, Replaceable Insert. A Regal-Rexnord Brand Product.

Call for Pricing

Best Price Guarantee!

Item: NPL-13 | Model #: 700569

Overview
Series Info
Reviews
Literature/Manuals

NPL-13

Base Model Number	NPL
Base to Center Height	1.313"
Base Width	1.500"
Bearing Housing	Gray Pillow Block-Low Base, One Piece
Bearing Insert Coating	Black Oxide Coated
BOLT	3.000"
Bolt Center Max	4.375"
Bolt Center Min	3.875"
Bore Size	0.8125" (Straight Bore)
Category Name	Mounted Bearings
Centerline to Front Face	0.813"
FOOT HEIGHT	0.500"
Housing Base	Solid
Housing Material	Cast Iron
Includes	No End Cap
Inner Race Length	1.375"
Insert Material	52100 Bearing Steel, Black Oxided
Insert No.	2-013

Locking Type	Setscrew
Lubrication	Lithium Complex NLGI 2 Grease, Relubricatable
Misalignment	±2.0° (Static Only)
Model Number	700569
Model Series	Gold Line Mounted Ball Bearing
Overall Height	2.688"
OVR LENGTH	5.500"
Parts Series	Standard Duty
Product Notes	Zone-Hardened Inner Race, Standard Clearance, Replaceable Insert
Quick Specs	Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock
RETAINER	Brass Land Riding Retainer
Rolling Element	Ball Bearing
Seal Type	Felt Labyrinth
Speed (RPM)	6350 RPM Maximum
Type	Non-Expansion (Fixed)
