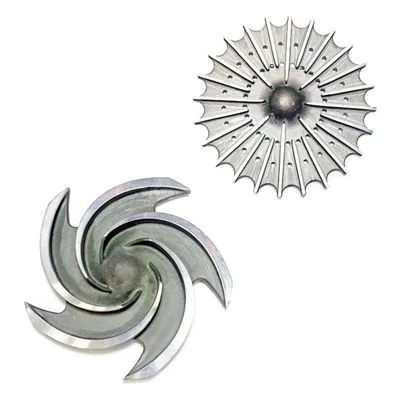

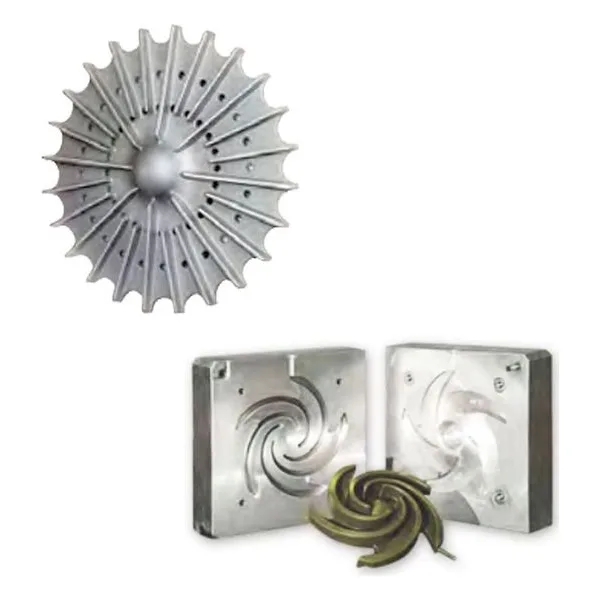

PumpWorks ANSI Pump Impellers
PumpWorks ANSI impellers are the "engine" of the PWA series, designed specifically to address the weaknesses found in standard cast-iron pump components.
The standout feature of these impellers is the standard use of Carbon Steel, though they are also available in a wide array of alloys (316SS, CD4MCu, Hastelloy, etc.) to suit specific chemical or abrasive needs.
Key Design Features
Semi-Open Design: Standard PWA models use a semi-open impeller. This provides a perfect balance between efficiency and the ability to handle solids, stringy materials, and shear-sensitive liquids without clogging.
Balance Holes: Integrated holes near the impeller eye reduce axial thrust loads on the bearings.This small design detail is what allows PumpWorks to offer such an aggressive warranty—it directly extends bearing and seal life.
Back Pump-Out Vanes: Located on the rear shroud, these vanes act as a secondary "seal," pumping fluid away from the stuffing box to reduce pressure on the mechanical seal.
External Adjustability: You can adjust the impeller clearance from the outside of the pump. This allows you to "reset" the pump’s efficiency as it wears over time without a full teardown.
Specialized Impeller Types
Depending on your flow requirements, PumpWorks offers specific geometries:
| Impeller Type | Pump Model | Best For... |
| Standard Semi-Open | PWA | General chemical and industrial process fluids. |
| Low-Flow Radial | PWA-LF | Stable hydraulics at very low flows; reduces vibration and vane stress. |
| Recessed (Vortex) | PWA-RC | Gaseous liquids or heavy slurries where you want "no-contact" pumping. |
| Self-Priming | PWA-SP | Applications where the pump must clear air from the suction line. |
The Material Upgrade Advantage
The biggest differentiator for PumpWorks is their Standard Material Policy:
The Carbon Steel Standard: While most manufacturers charge extra to move away from brittle Ductile Iron, PumpWorks provides ASTM A216 Carbon Steel as the base material.
Repairability: Unlike iron, if a carbon steel impeller is slightly eroded, it can be welded and re-machined.
Durability: It offers 30% higher thermal conductivity than cast iron, which helps dissipate heat and protect your bearings.
100% Interchangeability
If you are currently running a Goulds 3196 or Durco Mark 3, a PumpWorks impeller is a "drop-in" replacement. This allows you to upgrade your existing pumps to Carbon Steel components one piece at a time during normal maintenance cycles.
