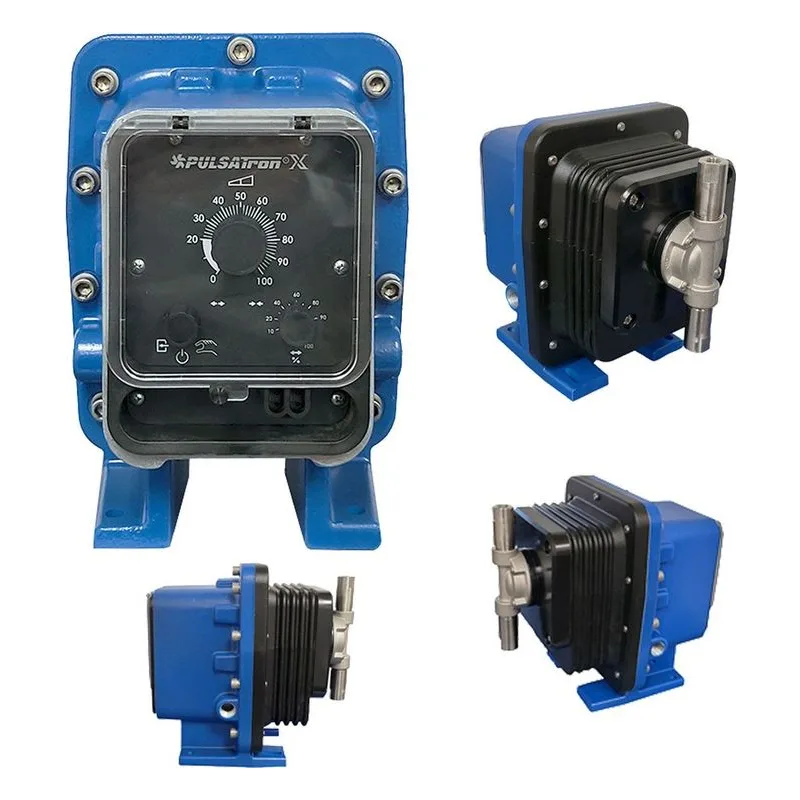

Image shown may not be actual product
XPH8EA-WTCB-XXX
Pulsatron XPH8EA-WTCB-XXX Series X Explosion Proof Electronic Chemical Metering Pump. 25.0 GPH (94.6 LPH) Maximum Flow Rate, 30 PSI (5.5 BAR) Max Pressure. PVC Head & Fittings, TFE Seats & O-Rings, Ceramic Valve Balls. .50" x .75" Suction & Discharge Tubing Connections. Pulse/Stop Controls, 115 Volt, 50-60 Hz, 1 Ph (Single Phase). KOP Kit KX8WTCB Available for order, A Pulsafeeder Brand Product.
$4,350.60
- Best Price Guarantee!
- 869PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
XPH8EA-WTCB-XXX
Pulsatron XPH8EA-WTCB-XXX Series X Explosion Proof Electronic Chemical Metering Pump. 25.0 GPH (94.6 LPH) Maximum Flow Rate, 30 PSI (5.5 BAR) Max Pressure. PVC Head & Fittings, TFE Seats & O-Rings, Ceramic Valve Balls. .50" x .75" Suction & Discharge Tubing Connections. Pulse/Stop Controls, 115 Volt, 50-60 Hz, 1 Ph (Single Phase). KOP Kit KX8WTCB Available for order, A Pulsafeeder Brand Product.
| Connection Type | Tubing |
| Diaphragm | PTFE faced/CSPE backed |
| Discharge NPT (Inches) | .50" x .75" |
| Flow Control | Pulse/Stop |
| Head / Fittings | PVC |
| Hz | 50-60 |
| Maximum Flow (GPD) | 600 GPD |
| Maximum Flow (GPH) | 25.0 GPH (94.6 LPH) |
| Maximum Pressure (PSI) | 30 PSI (5.5 BAR) |
| Maximum Strokes Per Minute | 125 |
| Maximum Viscosity (CPS) | 1000 CPS |
| Model Series | XPH8 |
| Other Factors | No Bleed Valve |
| Phase | 1 Ph (Single Phase) |
| Suction NPT (Inches) | .50" x .75" |
| Turn Down Ratio | 10:1 |
| Valve Balls | Ceramic |
| Valve / Seat / O-Ring | TFE |
| Voltage | 115 |
X Series Explosion Proof Information
The rugged aluminum housing is designed for high corrosion resistance. With options for either a 4-20mA input or an external pulse input, the Pulsatron X is ideal for applications requiring remote control of the dosing rate in hazardous locations. Integrated inputs on the control panel eliminate the need for additional devices and external enclosures, saving on system costs and valuable facility space. With over 25 years of excellence, PULSAtron pumps carry agency approvals from ETL, ETL Sanitation, and NSF 61 (PVDF material and PVC Degassing Head models).
Key Features:
- Explosion proof
- Hazardous location rating for environments with flammable gases
- Class I, Div 1, Groups C, D, T5
- Class I, Zone 1, Group IIB T5
Pump Head Materials: GFPPL | PVC | PVDF | 316 SS
Fitting Material Available: GFPPL | PVC | PVDF
Bleed Valve: Same as fitting and check valve selected (except 316 SS)
Turndown Ratio: 100:1
Seat O-Rings Available: PTFE | CSPE | Viton
Balls Available: Ceramic PTFE | 316 SS | Alloy C
Diaphragms: PTFE-faced CSPE-backed
Tubing Available: Clear PVC | White PE
Power Input: 115 VAC – 50/60 HZ -1 ph | 230 VAC – 50/60 HZ – 1 ph
Peak Input Power: 300 Watts
Average Input Power at Max SPM: 130 Watts
Average Current Draw: 115 VAC: 1.0 Amps | 230 VAC: 0.5 Amps
Product Options: Optional Control: 4-20mADC direct or external pacing with stop function
