Image shown may not be actual product
XP009L5HX

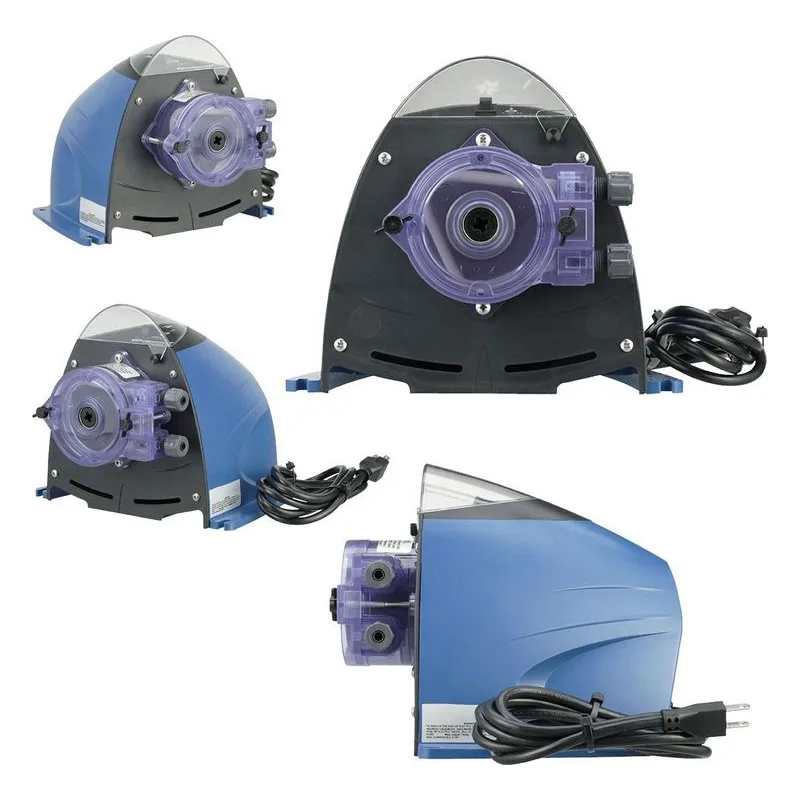

Pulsafeeder XP009L5HX Chem-Tech Series XP Adjustable Peristaltic Pump with PVC Head / Fittings. 0.167 HP (1/6 Horsepower), 115V & 60 Hz, with 1/4” or 3/8” Tube Fittings. Adjustable Drive: 20:1 Turndown, Duplex Head, Dry Contact Input, Flow Switch Activated. 9 GPD (Gallons Per Day) Maximum Flow and 125 PSI Maximum Working Pressure.
$624.99
- Best Price Guarantee!
- 124PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
XP009L5HX
Pulsafeeder XP009L5HX Chem-Tech Series XP Adjustable Peristaltic Pump with PVC Head / Fittings. 0.167 HP (1/6 Horsepower), 115V & 60 Hz, with 1/4” or 3/8” Tube Fittings. Adjustable Drive: 20:1 Turndown, Duplex Head, Dry Contact Input, Flow Switch Activated. 9 GPD (Gallons Per Day) Maximum Flow and 125 PSI Maximum Working Pressure.
| Configuration | Adjustable Drive: 20:1 Turndown, Duplex Head, Dry Contact Input, Flow Switch Activated |
| Connections / Discharge (Inches) | 1/4” or 3/8” Tube Fittings |
| Connection Type | Tube Fitting |
| Enclusure Rating | NEMA 3R/IP 31 |
| Head / Fittings | PVC |
| Housing Material | ABS or Polycarbonate/PBT/15%GF |
| HP | 1/6 HP |
| Hz | 60 Hz |
| Maximum Flow (GPD) | 9 GPD (1.4 LPH) |
| Maximum Pressure (PSI) | 125 PSI (8.6 Bar) |
| Maximum Viscosity (CPS) | 300 cPs |
| Product Notes | Conforms to ANSI/NSF61 & 372 ETL and ETL Sanitation |
| Quick Specs | PUMP-XP,ADJ,DRY,30RPM,115/60HZ |
| Size | Tube Size: 3 |
| Speed (RPM) | 30 RPM |
| Strainer Material | Polypropylene |
| Turn Down Ratio | 0.834027777778 |
| Voltage | 115V |
Peristaltic CHEM-TECH Pumps - XP Information
| Product Type |
|---|
| Metering, Peristaltic, Self Priming |
| Features & Benefits |
| XP Series • Feed rates from 4 to 80 gpd (0.60 to 12.6 lph), pressures up to 125 psi (8.6 bar) • Inherently degassing • Self priming • Fixed, Adjustable, Pulse Input, Dry Contact, Flow Switch Activated and 7 Day/8 Event Electronic Timer models • Sealed gear train • Chemical resistant materials |
Categories
Chemical Delivery / Processing
787 productsChemical Metering
990 productsPharmaceutical / Chemical
900 productsPool & Spa
596 productsUtilities
596 productsWashing / Cleaning Systems
596 productsWastewater Treatment
1565 products
Repair Parts for XP009L5HX
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | J63002 | Ships in | $22.80 | ||
| J63068 | Call for Shipping | ||||
| J63004 | Ships in | $30.88 | ||
| J63007 | Ships in | $30.88 | ||
| POT-TIMER | Call for Shipping | ||||
| KNOB-TIMER | Call for Shipping | ||||
| J63001 | Call for Shipping | ||||
| J63020 | Call for Shipping | ||||
| J63022 | Call for Shipping | ||||
| NC91XXXXXX-XXXXX | Call for Shipping | ||||
| NC190000-000 | Ships in | $5.04 | ||
 | L1900500-000 | Lead Time TBD | $4.20 | ||
| L9806300-188 | Call for Shipping | ||||
| 06-203-07 | Call for Shipping | ||||
| 06-135-00 | Call for Shipping | ||||
| L9809602-188 | Call for Shipping | ||||
| J63139 | Call for Shipping | ||||
| U0020522 | Call for Shipping | ||||
| 06-008-26-E | Call for Shipping | ||||
| J63133 | Call for Shipping | ||||
| J63124 | Call for Shipping | ||||
