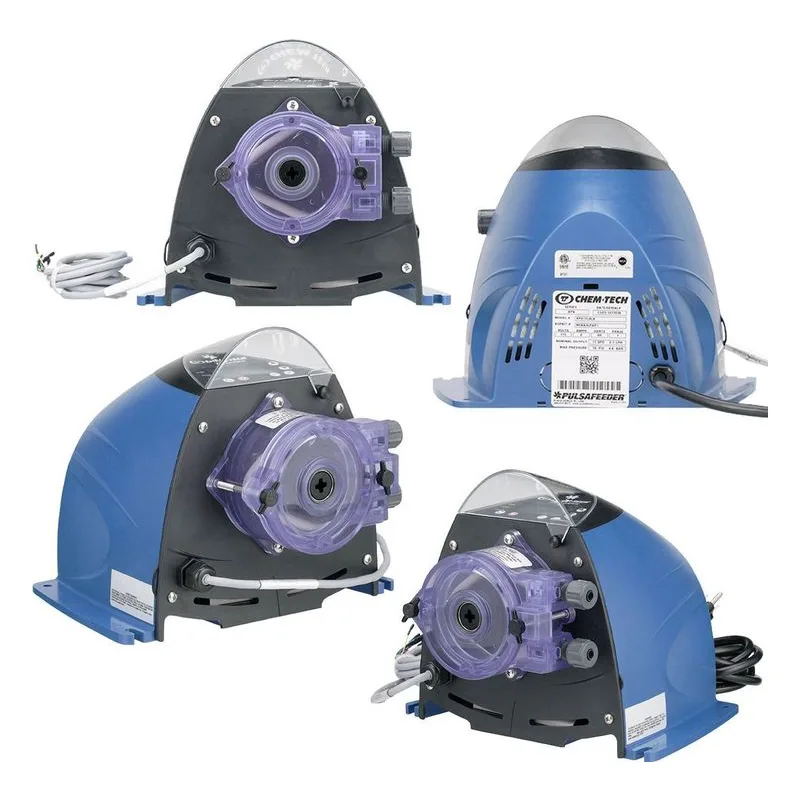

Image shown may not be actual product
XP100HVLX
Pulsafeeder XP100HVLX Chem-Tech Series XPV Peristaltic Pump with PVC Head / Fittings. 0.167 HP (1/6 Horsepower), 230V & 50/60 Hz. 1/4” or 3/8” Tube Fittings, Variable Input Drive & Duplex Head. 100 GPD (Gallons Per Day) Maximum Flow and 125 PSI Maximum Working Pressure.
$1,230.30
- Best Price Guarantee!
- 245PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
XP100HVLX
Pulsafeeder XP100HVLX Chem-Tech Series XPV Peristaltic Pump with PVC Head / Fittings. 0.167 HP (1/6 Horsepower), 230V & 50/60 Hz. 1/4” or 3/8” Tube Fittings, Variable Input Drive & Duplex Head. 100 GPD (Gallons Per Day) Maximum Flow and 125 PSI Maximum Working Pressure.
| Configuration | Variable Input Drive, Duplex Head |
| Connections / Discharge (Inches) | 1/4” or 3/8” Tube Fittings |
| Connection Type | Tube Fitting |
| Enclusure Rating | NEMA 3R/IP 31 |
| Head / Fittings | PVC |
| Housing Material | ABS or Polycarbonate/PBT/15%GF |
| HP | 1/6 HP |
| Hz | 50/60 Hz |
| Includes | Fully Scalable 4-20mA Input |
| Maximum Flow (GPD) | 100 GPD (15.8 LPH) |
| Maximum Pressure (PSI) | 125 PSI (8.6 Bar) |
| Maximum Viscosity (CPS) | 300 cPs |
| Product Notes | Conforms to ANSI/NSF61 & 372 ETL and ETL Sanitation |
| Quick Specs | PUMP XP-V,VARIABLE,230/5/6HZ |
| Size | Tube Size: 8 |
| Speed (RPM) | 60 RPM |
| Strainer Material | Polypropylene |
| Turn Down Ratio | 100:1 |
| Voltage | 230V |
CHEM-TECH Pumps - XPV, 250 Information
| Product Type |
|---|
| Metering, Peristaltic, Self Priming |
| Features & Benefits |
| XPV Series • Feed rates from 8 to 100 gpd (1.3 to 15.8 lph), pressures up to 125 psi (8.6 bar) • Variable speed • Fully scalable 4-20mA input • Hall effect input • Contacting head water meter input • Cycle timer / Daily timer |
Categories
Chemical Delivery / Processing
787 productsChemical Metering
990 productsPharmaceutical / Chemical
900 productsPool & Spa
596 productsUtilities
596 productsWashing / Cleaning Systems
596 productsWastewater Treatment
1565 productsWater Treatment
653 products
Repair Parts for XP100HVLX
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | J63000 | Ships in | Call for pricing | ||
| J63002 | Ships in | $22.80 | ||
| J63068 | Call for Shipping | ||||
| J63004 | Ships in | $30.88 | ||
| J63015 | Call for Shipping | ||||
| J63022 | Call for Shipping | ||||
| J63054 | Call for Shipping | ||||
| J63055 | Ships in | $22.80 | ||
 | J63053 | Ships in | $431.12 | ||
| NC91XXXXXX-XXXXX | Call for Shipping | ||||
| J63006 | Ships in | $274.24 | ||
| J63058 | Ships in | $47.76 | ||
| J63072 | Ships in | $59.68 | ||
 | J63050 | Ships in | $19.71 | ||
| J63064 | Ships in | Call for pricing | ||
| J63070 | Call for Shipping | ||||
| J63071 | Ships in | $298.64 | ||
| NC190000-000 | Ships in | $5.04 | ||
 | L1900500-000 | Lead Time TBD | $4.20 | ||
| L9806300-188 | Call for Shipping | ||||
| U0900857 | Ships in | $3.44 | ||
| L9809602-188 | Call for Shipping | ||||
| 06-203-07 | Call for Shipping | ||||
| L9800200-188 | Lead Time TBD | $3.68 | ||
| 06-148-00 | Call for Shipping | ||||
| U0812955 | Ships in | $3.44 | ||
| J63093 | Ships in | $11.20 | ||
| 06-135-00 | Call for Shipping | ||||
| J37019 | Call for Shipping | ||||
| L9900700-000 | Lead Time TBD | $4.73 | ||
| J63061 | Call for Shipping | ||||
| 13-003-12 | Call for Shipping | ||||
| 13-003-13 | Call for Shipping | ||||
| J63100 | Call for Shipping | ||||
| J63107 | Call for Shipping | ||||
| J63110 | Call for Shipping | ||||
| J63112 | Call for Shipping | ||||
| J63113 | Call for Shipping | ||||
| U0020522 | Call for Shipping | ||||
| 06-138-03 | Call for Shipping | ||||
| 27905 | Ships in | $8.08 | ||
