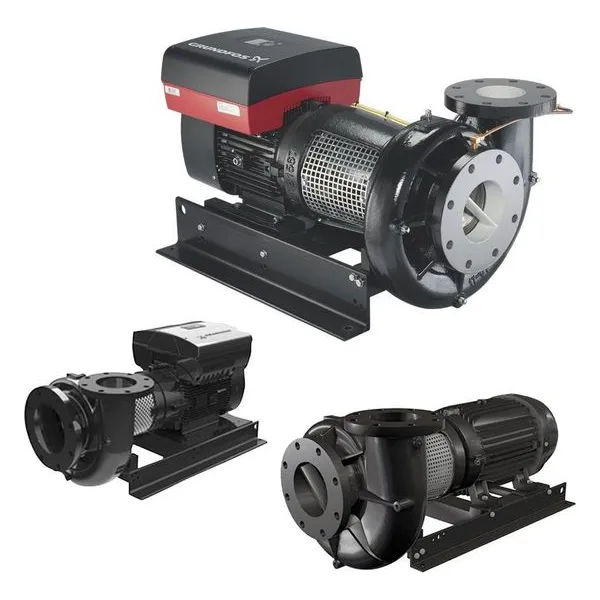

LCS / LCSE (Split Coupled End Suction w/ MLE)

No alignment or grouting.

Paco LCS is a split coupled, base mounted centrifugal pump, which requires no alignment or grouting. The pump features an axially split coupling which can withstand all torsional, axial, and radial loads. (PC14) Benefits 35% smaller footprint than frame mount design No baseplate grouting required Lower weight offers installation ease Axially split coupling enhances ease of service No alignment required between the pump and motor Spacer coupling allows easy replacement of mechanical seal without removing the motor and drive Double Volute Design – increased efficiency, lower life cycle costs, & prolonged seal and bearing life

The LCSE pump series is a split coupled end suction pump with integrated motor, drive, and control which serves as the industry standard in performance, quality, and durability. (PC24) Benefits Integrated pump, motor, and VFD are all made by one supplier No baseplate grouting required Axially split coupling enhances ease of service No alignment required between the pump and motor Energy savings due to on-demand performance Reduced installation and wiring cost Grundfos GO technology – control the pump from your smart device Spacer coupling allows easy replacement of mechanical seal without removing the motor and drive Double Volute Design – increased efficiency, lower life cycle costs, & prolonged seal and bearing life"

Applications

• Drip irrigation & micro spray
• Frost protection
• Pivot Agricultural surface water
• HVAC: Air Conditioning
• HVAC: Heating District cooling
• District heating
• Drinking water treatment
• Industrial heating
• Wash and clean
• Industrial water supply & transfer
• Industrial wastewater treatment & reuse
• Municipal surface water
• Municipal water transportation

LCS is a single stage, end suction, split coupled, base mounted centrifugal pump. With its smaller footprint with no alignment and grouting requirement in the field makes it a unique pump design. The pump features axially split coupling which can withstand all torsional, axial, and radial loads. They are available in different sizes to match up HP requirements up to 125HP.

The LCS The LCSE single stage, end suction, split coupled pump serves as the industry standard in performance, quality, and durability. The LCS provides hydraulic performance equal to that of a frame mounted, long coupled model, but in a compact design. Advanced features and benefits incorporated as standard, as well as optional features that meet specialized needs, set these high-efficiency, end suction pumps apart as the broadest line offered to the marketplace. With a 35% smaller footprint than traditional frame-mounted pumps, the LCS not only saves space in your mechanical room, but installation time and costs with removing the need for a baseplate, grouting or laser alignment.

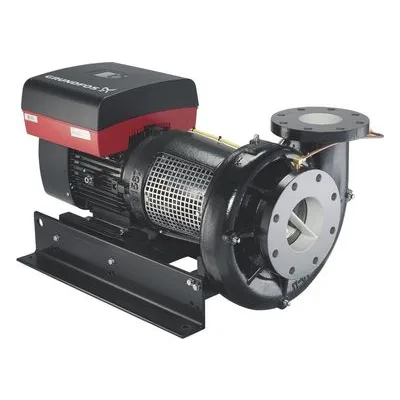

LCSE is a single stage, end suction, split coupled, base mounted centrifugal pump with integrated motor, drive, and control. The Grundfos split coupled, base mount pump with its axially split coupling can withstand all torsional, axial, and radial loads. Smaller footprint with no alignment and grouting requirement in the field makes it a unique pump design. Most Intelligent End-Suction Pump, Now with Proportional Pressure Control The Grundfos LCSE compact, close-coupled design, is 35% smaller than traditional frame-mounted pumps; and speeds up installation because you don’t need a baseplate, grouting or laser alignment. Plus, it comes with a lifetime alignment guarantee, extending the pump's operational life and decreasing planned and unplanned maintenance time. When routine maintenance is required, the LCSE has the quickest seal changes for an end-suction pump. The LCSE is an easy retrofit solution and allows users to realize savings of the latest energy-saving technology with the Grundfos MLE permanent magnet motor.
