Pacer T Series Centrifugal Pumps: Heavy-Duty Soft Solids & De-Watering Solutions
The Pacer T Series Self-Priming Pumps stand as the industry benchmark for high-volume fluid transfer contaminated with debris and particulate matter. Specially engineered to pass spherical soft solids up to half the diameter of the suction port, these pumps handle the demanding conditions that clog standard centrifugal designs.
By utilizing a robust, glass-reinforced non-metallic outer body combined with advanced elastomeric and hardened internal components, the T Series delivers exceptional resistance against both aggressive salt water corrosion and abrasive sediment wear.
Advanced Solid Sump Handling & Armor Protection
High-Clarity Solids Clearance: Move debris-laden water confidently; the internal architecture is specifically optimized to continuously pass soft solids measuring up to half the nominal diameter of the suction port without binding.
Fiberglass-Reinforced Casing: The main structural pump housing is molded from high-grade, glass-reinforced polyester, ensuring complete immunity to rust, pitting, and chemical degradation in harsh outdoor or marine environments.
Abrasive-Resistant Internal Components: Critical hydraulic wear surfaces—including the high-performance open impeller and matching volute—feature a specialized urethane coating engineered to deflect sand, silt, and grit.
Oil-Lubricated Silicon Carbide Seal: Equipped with a premium, oil-lubricated shaft seal assembly utilizing ultra-hard silicon carbide faces to prevent dry-running damage and isolate the engine or motor shaft from abrasive wear.
Heavy-Duty Structural Architecture
Buna-N Core Construction: The rugged internal wearplate is engineered with a rigid steel core fully encapsulated in premium Buna-N rubber to handle repeated impact from traveling debris.
Rapid Maintenance Access: Assembled with high-strength stainless steel external fasteners throughout, ensuring simple teardown, cleanout, or internal component inspection even after long periods of field exposure.
Integrated Hydraulic Safeguards: Features a built-in heavy-duty Buna-N check valve that maintains the pump’s prime and eliminates fluid backflow or siphoning into the source pit when shut down.
High-Volume Transfer Metrics
Unmatched Output Capacity: Moves massive volumes of fluid quickly, achieving peak field flow rates of up to 360 GPM (1,360 LPM) for rapid drawdown operations.
Substantial Dynamic Pressure: Overcomes high elevation rises and friction loss through long discharge runs with a total dynamic head (TDH) of up to 78 feet (24.4 meters).
High-Vacuum Self-Priming: Rapidly evacuates air from the suction line to establish an automatic vertical suction lift of up to 25 feet (7.6 meters) without auxiliary priming gear.
Standard Industrial Plumbing Ports: Features direct-molded 2” or 3” NPT threaded female connection ports to integrate cleanly with standard suction hose setups and cam-and-groove fittings.

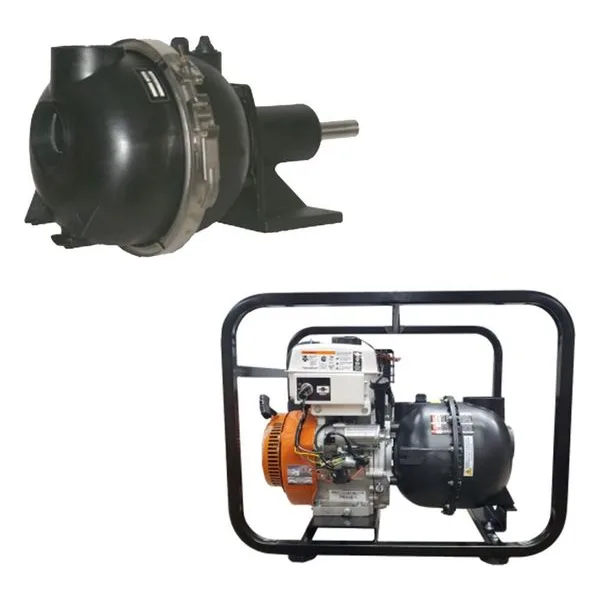

Flexible Drive Layout Options
The T Series is highly adaptable to local field conditions, supporting diverse power systems to maintain operations in remote or structured environments:

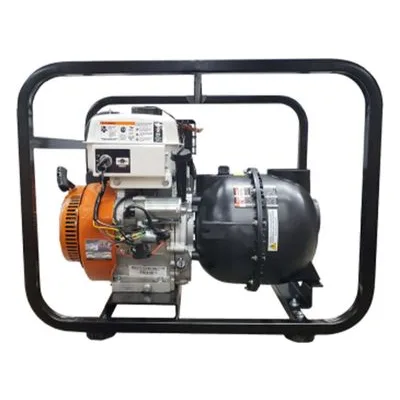

Gasoline Engine Configurations: Close-coupled directly to commercial-grade gasoline engines (such as the LCT 420cc commercial engine) and outfitted with standard electric start systems for rapid, effortless deployment.
Heavy-Duty Structural Bases: Engine-driven assemblies come securely mounted within a rugged roll cage frame (standard on 3” models) with integrated vibration-absorbing rubber feet, or a streamlined carry bar handle (standard on 2” models) for portability.
Pedestal & Long-Coupled Options: Available as a dedicated pedestal-mounted unit featuring heavy-duty dual ball bearings, perfectly configured for long-coupling to industrial electric motors or external belt-drive setups.
