SE2UL E5HCP

Image shown may not be actual product

SE2UL E5HCP

0 reviews

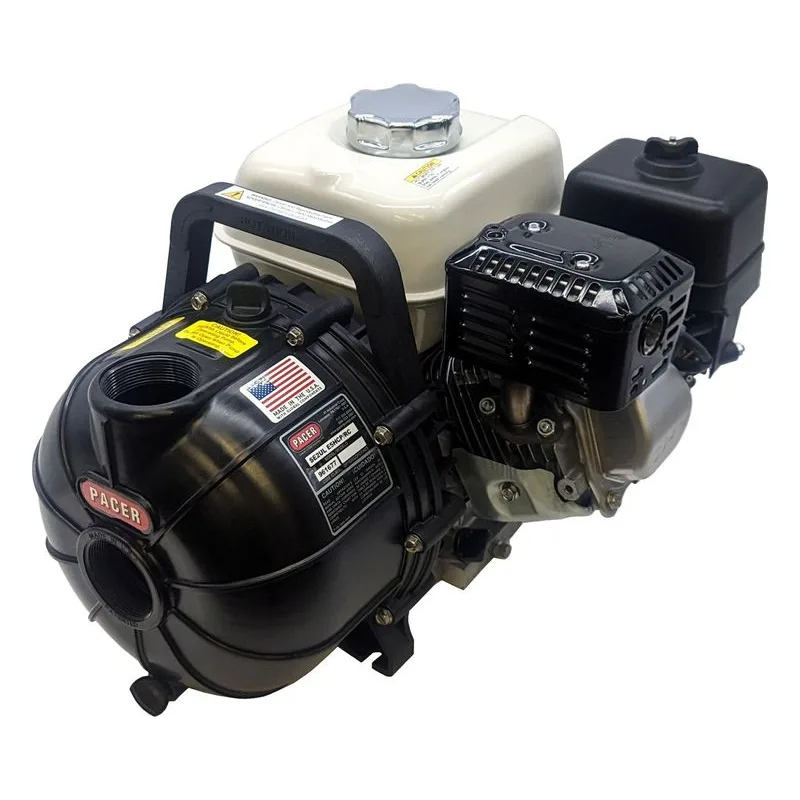

Pacer Pumps SE2UL E5HCP S Series Self-Priming Centrifugal Pump with a 5.5 HP (5-1/2 Horsepower) Honda GX160 Engine. 2" NPT Suction & Discharge and Carbon/Ceramic Mechanical Seal with 316 Stainless Steel Fasteners. 200 GPM (Gallons Per Minute) Maximum Flow, 52 PSI Max Pressure, Heads to 130 ft. with 25 ft. Suction Lift.

$775.64

Best Price Guarantee!
154PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: SE2UL E5HCP

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

SE2UL E5HCP

Connections / Discharge (Inches)	2" NPT
Connection Size	2"
Connection Type	NPT
Elastomer	EPDM
Engine Model	Honda GX160
Heads To (Feet)	130 ft. (40 m)
HP	5.5 HP
Impeller Code	706
Includes	Built-In Check Valve

Material	Glass Reinforced Polyester
Maximum Flow (GPM)	200 GPM (757 LPM)
Maximum Pressure (PSI)	52 PSI
Max Suction Lift	25 ft. (7.6 m)
Model Series	SE2UL
Quick Specs	S' PUMP WITH GX160 HONDA
Shaft Seal Material	Carbon/Ceramic w/ 316SS Fasteners

S Series Self-Priming Centrifugal Pumps Information

Features & Benefits

Why Choose the Pacer S Series?

The S Series blends advanced non-metallic corrosion resistance with ultra-flexible driving options to provide a low-maintenance, high-efficiency fluid transfer solution.

Optimize Your Fluid System

Rapid Self-Priming Performance: Take advantage of an integrated, heavy-duty check valve that holds your prime, eliminates siphoning, and pulls a vertical suction lift up to 25 feet instantly.
Immunity to Chemical Attack: Replace heavy, expensive alloys with lightweight, high-strength fiberglass-reinforced thermoplastics that are completely impervious to rust, brine, fertilizer, and mild acids.
Eliminate Routine Seal Service: Benefit from self-lubricating carbon and ceramic mechanical shaft seals that require zero external grease or maintenance over long duty cycles.

Simplified Maintenance & Operations

Tool-Friendly Design: Features user-friendly slotted hex head fasteners and molded threaded inserts that simplify routine inspection and rapid casing cleaning.
No Direct Metal-to-Plastic Stress: Engineered with reinforced port housings that enhance structural strength at pipe connections, keeping your operation leak-free and durable.
Double-Sized Weep Holes: Provides clear, visible feedback on seal health while directing liquid down and away, ensuring you catch wear early before moisture can migrate toward the driver.

Technical Summary

Casing Material: Glass-Reinforced Polyester or Polypropylene
Elastomer Options: EPDM, Buna-N, or Viton®
Max Flow Performance: 280 GPM (Electric) / 290 GPM (Gas Engine) (up to 400 GPM on specialized 3" layouts)
Max Pressure Output: 52 PSI (120–126 ft Total Dynamic Head)
Suction Capabilities: Vertical suction lift up to 25 feet (7.6 meters)

Performance Specifications

Electric Drive Limits	Flow rates from 65 up to 280 GPM; Total Dynamic Head spanning from 18 to 120 feet.
Electric Motor Options	Close-coupled Baldor or Leeson TEFC (0.5 to 5 HP) / long-coupled configurations up to 10 HP.
Gas Engine Performance	Flow rates up to 290 GPM (up to 400 GPM on 3" Rynite); Max TDH reaching 126 feet.
Gas Engine Options	Commercial Honda GX160/GX200, Briggs & Stratton XR, or LCT Maxx / CX Pro options.
Engine Safety & Controls	Overhead valve setup, electronic ignition, low-oil safety alerts, and optional electric start.
Hydraulic Drive Fluid Limits	Built for open or closed center tractor hydraulic systems; Max input limit of 9 GPM fluid flow.
DC Close-Coupled Sizing	Offered with 2" ports in 12V or 24V; fitted with Buna-N elastomers for fresh or salt water.
Temperature & Piping	Max temp of 130°F (54°C). Requires reinforced suction hose and 1 ft of flexible discharge line.
Fastener Material Resistance	Standard 316 stainless steel internals and 304 stainless steel externals to prevent binding.

Typical Services & Ideal Applications

Ideal Applications

Agriculture & Irrigation: Safely transfers liquid agricultural fertilizers, herbicides, and pesticides. High-flow capabilities deliver consistent pressure across expansive crop spraying rigs to minimize application time.
Marine & Aquaculture: Perfect for brine circulation, salt water transfer, livewells, mariculture facilities, boat deck washdowns, and bilge dewatering where traditional metals would suffer rapid galvanic corrosion.
Industrial & Waste Treatment: Handles process water distribution, gray water, mild acids, base neutralizers, and continuous cleaning solution loops within plant infrastructure.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Pacer S Series Self-Priming Centrifugal Pumps Product Brochure		View
	Pacer S Series Pumps EPDM Repair Kit Datasheet		View
	Pacer S Series Pumps Honda GX Engine Datasheet		View
	Pacer S Series Self-Priming Centrifugal Pumps Operator's Manual		View
	Pacer S Series Self-Priming Centrifugal Pumps Repair Parts Manual		View

Repair Parts for SE2UL E5HCP

Product		shipping	price
	P-58-702EP-U	Ships in	$114.85	Select item
P-58-0635-H			Call for Shipping
	P-58-0703-30B	Ships in	$66.85	Select item
	P-58-0754-72	Ships in	$3.43	Select item
	P-58-0714-12	Ships in	$35.14	Select item
P-58-0715-12			Call for Shipping
	P-58-0718-10	Ships in	$3.43	Select item
	P-58-0778-11	Ships in	$0.86	Select item
	P-58-0778-12	Ships in	$0.86	Select item
	P-58-0778-13	Ships in	$0.86	Select item
	P-58-0706-30	Ships in	$31.71	Select item
P-58-0716-12			Call for Shipping
	P-58-0702-30	Ships in	$61.71	Select item
	P-58-0725-10	Ships in	$2.57	Select item
	P-58-0705-72	Ships in	$29.14	Select item
	P-58-0719-72	Ships in	$17.14	Select item
	P-58-1002-30B	Ships in	$86.57	Select item
	P-58-0723-32	Ships in	$5.14	Select item
	P-58-1206-10	Ships in	$3.43	Select item
	P-58-0722-32B	Ships in	$6.86	Select item
	P-58-0771-10	Ships in	$3.43	Select item
