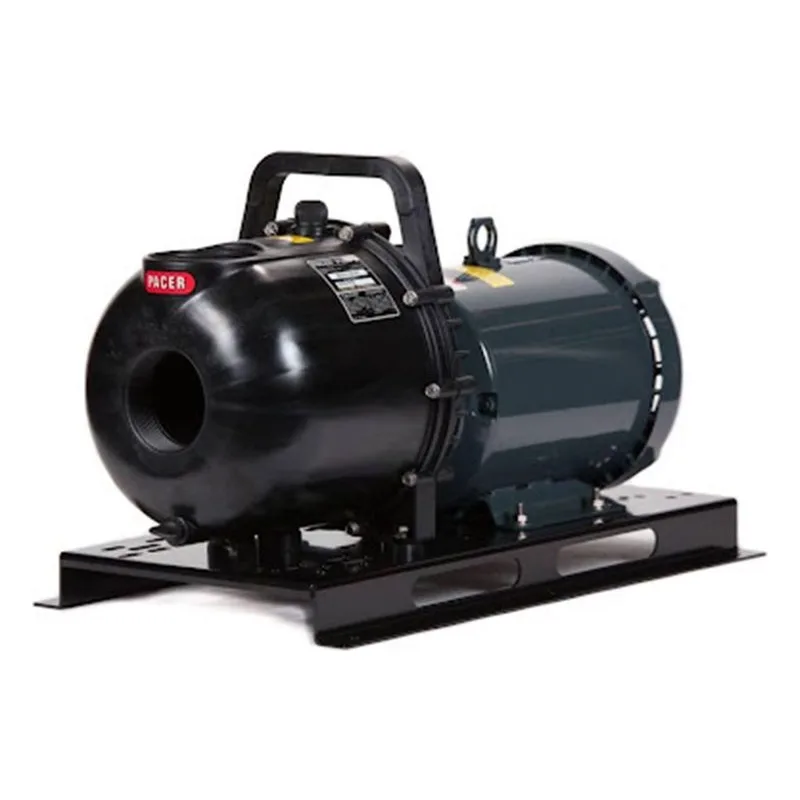

SE2JL D5.0C

Why Choose the Pacer S Series?

The S Series blends advanced non-metallic corrosion resistance with ultra-flexible driving options to provide a low-maintenance, high-efficiency fluid transfer solution.

Optimize Your Fluid System

• Rapid Self-Priming Performance: Take advantage of an integrated, heavy-duty check valve that holds your prime, eliminates siphoning, and pulls a vertical suction lift up to 25 feet instantly.

• Immunity to Chemical Attack: Replace heavy, expensive alloys with lightweight, high-strength fiberglass-reinforced thermoplastics that are completely impervious to rust, brine, fertilizer, and mild acids.

• Eliminate Routine Seal Service: Benefit from self-lubricating carbon and ceramic mechanical shaft seals that require zero external grease or maintenance over long duty cycles.

Simplified Maintenance & Operations

• Tool-Friendly Design: Features user-friendly slotted hex head fasteners and molded threaded inserts that simplify routine inspection and rapid casing cleaning.

• No Direct Metal-to-Plastic Stress: Engineered with reinforced port housings that enhance structural strength at pipe connections, keeping your operation leak-free and durable.

• Double-Sized Weep Holes: Provides clear, visible feedback on seal health while directing liquid down and away, ensuring you catch wear early before moisture can migrate toward the driver.

Technical Summary

• Casing Material: Glass-Reinforced Polyester or Polypropylene

• Elastomer Options: EPDM, Buna-N, or Viton®

• Max Flow Performance: 280 GPM (Electric) / 290 GPM (Gas Engine) (up to 400 GPM on specialized 3" layouts)

• Max Pressure Output: 52 PSI (120–126 ft Total Dynamic Head)

• Suction Capabilities: Vertical suction lift up to 25 feet (7.6 meters)

Ideal Applications

• Agriculture & Irrigation: Safely transfers liquid agricultural fertilizers, herbicides, and pesticides. High-flow capabilities deliver consistent pressure across expansive crop spraying rigs to minimize application time.

• Marine & Aquaculture: Perfect for brine circulation, salt water transfer, livewells, mariculture facilities, boat deck washdowns, and bilge dewatering where traditional metals would suffer rapid galvanic corrosion.

• Industrial & Waste Treatment: Handles process water distribution, gray water, mild acids, base neutralizers, and continuous cleaning solution loops within plant infrastructure.
