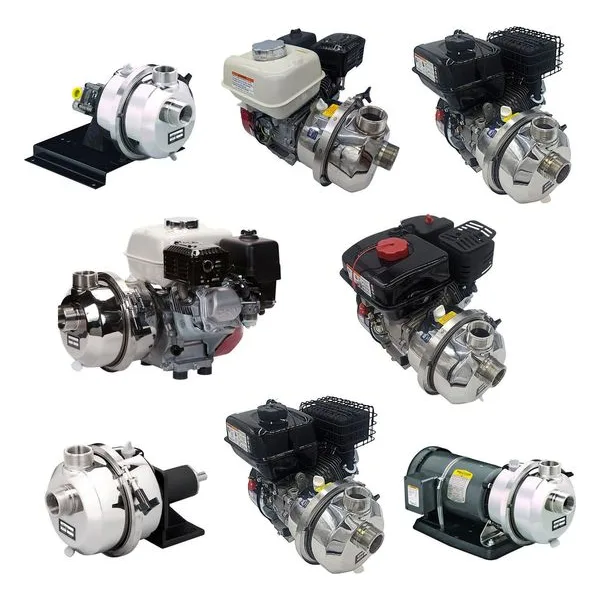

Pacer IPW Series Self-Priming Centrifugal Pumps: Certified Potable Water Transfer Solutions
The Pacer IPW Series Self-Priming Centrifugal Pumps are the premier choice for safe, reliable, and high-capacity drinking water transfer. Fully certified to NSF/ANSI 61 & 372 standards, this series is engineered specifically to meet stringent regulatory compliance for public health and potable water distribution networks.
By encasing an advanced, FDA-grade non-metallic internal fluid path inside a heavy-duty, marine-grade metallic housing, the IPW Series eliminates the risk of chemical leaching and rust while standing up to intense workloads in the field.
Material Engineering: High-Purity Dual-Defense Construction
The IPW Series features a specialized material breakdown to ensure completely safe fluid contact without sacrificing structural integrity:
Heavy-Duty 316 Stainless Steel Casing: The front and rear outer pressure housings are stamped from marine-grade 316 stainless steel, offering maximum resilience against external impacts and environmental weathering.
FDA-Grade Polypropylene Internals: Wetted internal components are molded from pure, high-strength, FDA-grade glass-reinforced polypropylene to maintain absolute water quality and zero toxicity.
Potable-Certified Seals & Hardware: Outfitted exclusively with certified GRAS elastomers and a specialized two-piece shaft seal assembly featuring ultra-smooth carbon-ceramic faces, a stainless steel cup, and FKM-like backing.
High-Efficiency Flow Characteristics
Maximum Flow Performance: Delivers rapid bulk water relocation with an efficient maximum flow rate of up to 180 GPM (681 LPM).
Maximum Pressure Head: Pushes fluid through extensive temporary piping or up into holding cisterns with a total dynamic head (TDH) of up to 75 feet (23 meters).
High-Lift Self-Priming: Features automatic priming capabilities that pull water vertically up to 20 feet (6 meters) without needing a foot valve.
Integrated Dual-Port Design: Equipped with convenient dual ports supporting both 1½” female and 2” male NPT or BSP threaded paths.
Designed for Field Serviceability & Cleanliness
Tool-Free Quick-Release V-Band Clamp: Features a signature stainless steel V-band housing clamp with an integrated adjustment knob, allowing operators to separate the pump casing in seconds for easy internal sanitization, flushing, or maintenance.
Double Flush Volute & Built-In Check Valve: Built with dual-flush internal hydraulics to sweep away stray sediment, paired with a high-purity internal check valve that prevents fluid siphoning or backflow when the driver is shut down.
Extended Run Fuel Efficiency: For remote deployments, engine-driven models feature an optimized fuel tank layout that provides up to a 2-hour continuous run-time on a single fill.
Multi-Drive Adaptability: Choose Your Power Setup

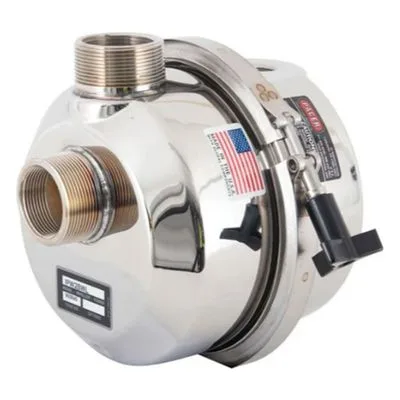

The IPW Series adapts seamlessly to your localized site power restrictions, available as standalone wet end kits or paired with a variety of professional drivers:

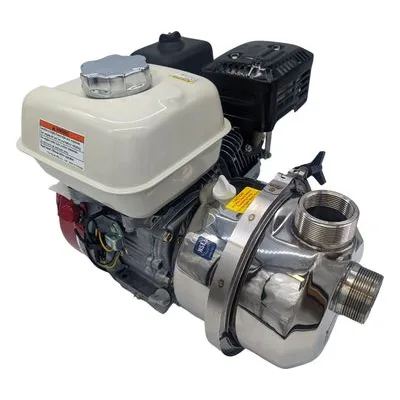

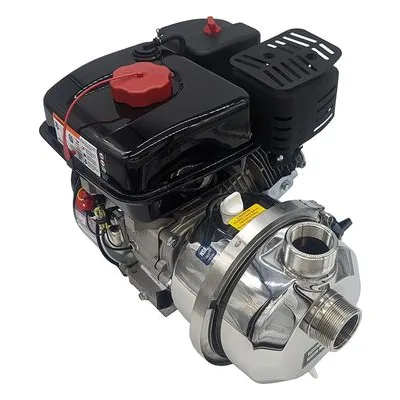

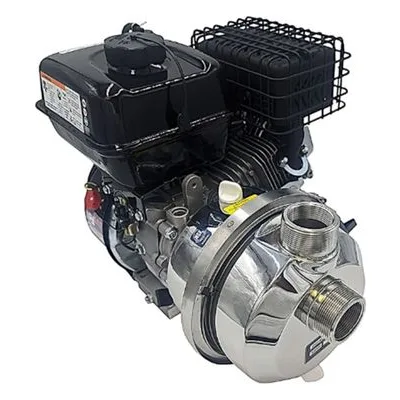

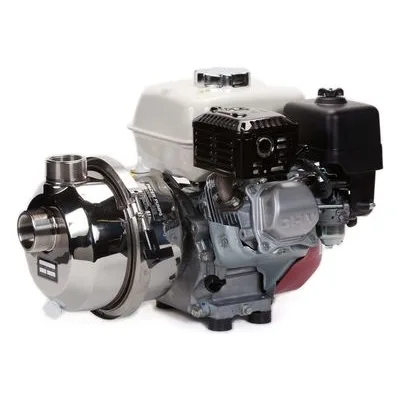

Gasoline Engine Packages: Close-coupled to commercial-grade gasoline engines, including the Honda GX160, Honda GX200, or the LCT CX PRO Series with a 3-year guaranteed-to-start warranty.

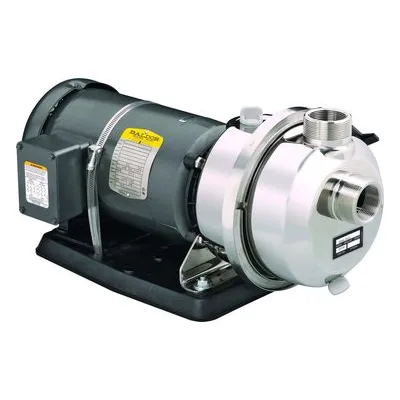

Electric & Hydraulic Utility Options: Available with high-efficiency close-coupled TEFC electric motors or heavy-duty close-coupled hydraulic motor configurations (engineered for tractor setups with a 9 GPM maximum fluid limit).
