ISP2GL HYC

Image shown may not be actual product

ISP2GL HYC

0 reviews

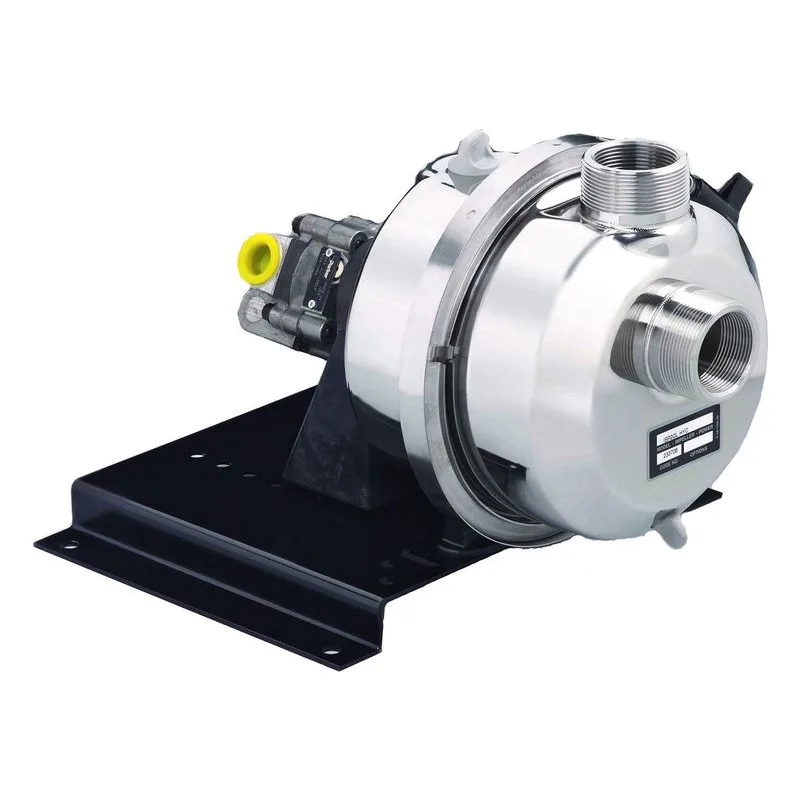

Pacer Pumps ISP2GL HYC I Series Hydraulic Motor Driven Self-Priming Centrifugal Pump - Pump End Only. 1.5" (1-1/2") FNPT / 2" MNPT Connections with 316 Stainless Steel Housing. 170 GPM (Gallons Per Minute) Maximum Flow, Heads to 75 ft., with 20 ft. Maximum Suction Lift. Includes Built-In Check Valve and Double Flush Volute.

$1,263.59

Best Price Guarantee!
252PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: ISP2GL HYC

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

ISP2GL HYC

Build	Pump End Only
Connections / Discharge (Inches)	1.5" FNPT / 2" MNPT
Connection Size	1.5" / 2"
Connection Type	NPT
Elastomer	EPDM
Heads To (Feet)	75 ft. (23 m)
Housing Material	316 Stainless Steel
Includes	Built-In Check Valve and Double Flush Volute

Material	Polypropylene
Maximum Flow (GPM)	170 GPM (643 LPM)
Max Suction Lift	20 ft. (6 m)
Model Series	ISP2GL
Quick Specs	SS HOUSING, POLYPROPYLENE INTERNALS
Valve / Seat / O-Ring	EPDM

I Series Self-Priming Centrifugal Pumps Information

Features & Benefits

Why Choose the Pacer I Series?

The Pacer I Series combines a rugged 316 stainless steel outer casing with interchangeable, corrosion-resistant thermoplastic internals to provide a high-volume, structural fluid transfer loop. This unique dual-defense design allows the pump to withstand severe external pipeline stresses and rough plant environments while maintaining complete internal isolation from aggressive process chemistries.

Optimize Your Chemical Infrastructure

Ruggedized Structural Housing: Protect your facility from pipe alignment stresses, external impacts, and harsh atmospheric exposure with a stamped 316 stainless steel outer casing that provides exceptional physical durability.
Rapid Casing Serviceability: Minimize maintenance downtime by utilizing the heavy-duty, quick-release 304 stainless steel band clamp, allowing fast entry into the pump housing for instant inspection or cleaning.
Self-Priming Hydraulic Reliability: Eliminate the need for auxiliary priming equipment with an integrated check valve and double-flush volute that retains liquid and automatically pulls a 20-foot vertical suction lift.
Flexible Dual-Port Plumbing: Simplify installation and reduce pipe fitting inventory by taking advantage of integrated dual ports that accommodate both 1½” female and 2” male connections out of the box.

Performance Specifications

Casing Material	Stamped 316 Stainless Steel
Internal Thermoplastics	Glass-Reinforced Polyester, Polypropylene, or Ryton® (PPS)
Elastomer Compounds	EPDM, Buna-N, or Viton®
Maximum Flow Rate	Up to 170 GPM (650 LPM)
Maximum Pressure Head	Up to 75 feet Total Dynamic Head (TDH) / 23 meters
Suction Lift Capacity	Reliable self-priming up to 20 vertical feet (6 meters)
Connection Configuration	Dual Ports: 1½” Female NPT/BSP and 2” Male NPT/BSP

Typical Services & Ideal Applications

Ideal Applications

Chemical & Industrial Waste Transfer: Engineered for safely moving, blending, or reloading aggressive chemical stocks, acids, bases, and corrosive industrial processing fluids.
Oilfield & Industrial Liquids: Widely trusted for transferring drilling fluids, low-viscosity production liquids, and heavy recovery lines.
Water Management & Drainage: Ideal for high-volume salt water transfer, brine circulation, gray water processing, and construction site or bilge dewatering.
Agricultural Logistics: Perfectly suited for continuous agricultural chemical blending, high-volume irrigation, crop spraying liquid reloading, and commercial aquaculture fluid loops where traditional non-metallic pumps might face physical exterior damage.

Operating Sizing & Hardware Guidelines

The close-coupled design of the I Series can be directly driven by high-efficiency TEFC electric motors, tractor hydraulic systems (up to a maximum input limit of 9 GPM fluid flow), or commercial-grade gasoline engines (ranging from 3 to 5 HP). For fuel-driven configurations, the engine shaft is shielded using specialized heat-shrink polyethylene tubing to protect against stray vapors or drops.

For custom plant layouts or remote utility setups, the series can also be ordered pedestal-mounted for flexible coupling to an existing driver. All units are outfitted with 316 stainless steel internal fasteners, 304 stainless steel external hardware, and the signature quick-release body clamp to ensure long-term mechanical endurance.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Pacer I Series Self-Priming Centrifugal Pumps Product Brochure		View
	Pacer I Series Self-Priming Centrifugal Pumps Operator's Manual		View
	Pacer I Series Self-Priming Centrifugal Pumps Repair Parts Manual		View

Repair Parts for ISP2GL HYC

Product		shipping	price
	P-58-0722-40	Ships in	$5.14	Select item
	P-58-0765-72	Ships in	$1.71	Select item
	P-58-1308-10	Ships in	$290.56	Select item
	P-58-1361-72	Ships in	$10.29	Select item
	P-58-1301-40	Ships in	$39.43	Select item
	P-58-2167-10	Ships in	$3.43	Select item
	P-58-1245-72	Ships in	$2.57	Select item
	P-58-1233-40	Ships in	$4.29	Select item
	P-58-1302-40	Ships in	$46.28	Select item
	P-58-1246-72	Ships in	$2.57	Select item
	P-58-0683-40	Ships in	$34.28	Select item
	P-58-0717-72	Ships in	$1.71	Select item
	P-58-0716-10	Ships in	$5.14	Select item
	P-58-1348-10	Ships in	$2.57	Select item
	P-58-1009-72	Ships in	$2.57	Select item
	P-58-0723-40	Ships in	$4.29	Select item
	P-58-2012-10	Ships in	$449.12	Select item
	P-58-1280-01	Ships in	$62.57	Select item
	P-58-0778-11	Ships in	$0.86	Select item
	P-58-0778-12	Ships in	$0.86	Select item
	P-58-0778-13	Ships in	$0.86	Select item
	P-58-1312-72	Ships in	$20.57	Select item
	P-58-1282-90	Ships in	$21.43	Select item
	P-58-0976-72	Ships in	$3.43	Select item
	P-58-1872-72	Ships in	$25.71	Select item
	P-58-1203-72	Ships in	$3.43	Select item
P-58-1165-10			Call for Shipping
	P-58-0883	Ships in	$2.57	Select item
	P-58-0745-10	Ships in	$2.57	Select item
	P-58-1011-20	Ships in	$30.86	Select item
P-58-0729H			Call for Shipping
	P-58-1826-71	Ships in	$8.57	Select item
	P-58-1015-10	Ships in	$2.57	Select item
	P-58-1955-71	Ships in	$11.14	Select item
P-58-0882-90			Call for Shipping
P-58-0884-71			Call for Shipping
	P-58-1951-90	Ships in	$202.28	Select item
	P-58-1954-90	Ships in	$21.43	Select item
	P-58-1952-10	Ships in	$123.42	Select item
	P-58-1953-10	Ships in	$32.57	Select item
P-58-0730-10			Call for Shipping
	P-58-0729-10	Ships in	$3.43	Select item
	P-58-0745-10	Ships in	$2.57	Select item
	P-58-2525-10	Ships in	$3.43	Select item
	P-58-1950-01	Ships in	$278.56	Select item
	P-58-0686	Ships in	$343.70	Select item
	P-58-0929	Ships in	$70.28	Select item
