6100-N3

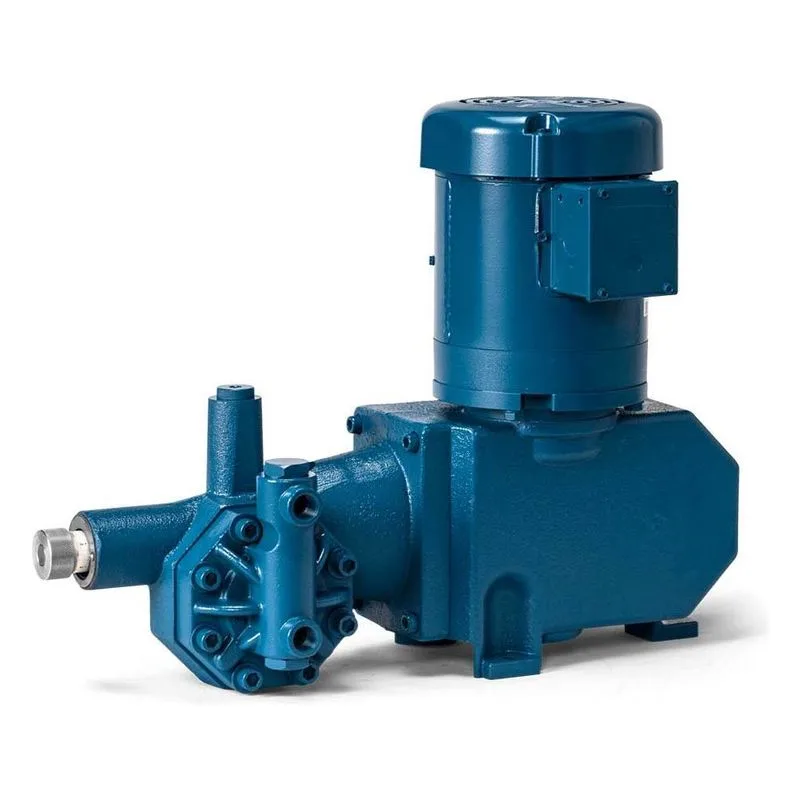

6100-N3 Neptune Pumps Hydraulic Metering Pump, Series 6000. 316SS Head, Valve Balls & Check Valve Body; FKM O-Rings, PTFE Diaphragm. Model 6100N3. PSG, A Dover Company.
$7,024.00
- Best Price Guarantee!
- 1404PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
Item: 6100-N3 | Part #: 6100N3
- Overview
- Series Info
- Reviews
- Repair Parts
6100-N3
6100-N3 Neptune Pumps Hydraulic Metering Pump, Series 6000. 316SS Head, Valve Balls & Check Valve Body; FKM O-Rings, PTFE Diaphragm. Model 6100N3. PSG, A Dover Company.
| Diameter | 3/4" (19.1 mm) Piston |
| Diaphragm | PTFE |
| Head / Fittings | 316SS Head |
| Maximum Flow (GPH) | 7 GPH at 60 Hz |
| Maximum Operating Temperature | 200 °F (93.3 °C) |
| Maximum Strokes Per Minute | 58 |
| Part Number | 6100N3 |
| Product Notes | Price Less Motor (Motor Sold Separately) |
| Valve Balls | 316SS |
| Valve / Seat / O-Ring | 316SS Check Valve Body; FKM O-Rings |
Neptune 6000 Hydraulic Metering Pumps Information
| Product Type |
|---|
| Chemical Metering, Diaphragm Pumps, Injection / Dosing, Metering, Wastewater Treatment, High Pressure |
| Features & Benefits |
| Features and Benefits • EZE-CLEAN™ Valves – feature cartridges that can be removed for cleaning without disturbing the piping to the pump • Ten turn micrometer dial calibrated in 1% increments, with the ability to adjust capacity from 10% to 100% • Variable Oil By-Pass™ Stroke Adjustment provides a better valve performance when compared to variable linkage designs • Bright color contrasted dial protected from corrosion by clear PVC Covering • Stroke mechanism moves only when adjustment is made, eliminating wear • Piston is powered through complete stroke length at all capacity adjustments, eliminating stress, wear and shock of lost motion designs • Power train operates submerged in oil for extended service • Accepts standard 56C motor • Max capacity up to 240 gph (908.5 L/h) • Max pressure up to 4,000 psi (275.8 bar) • Capacity control options include electric stroke length adjustment and variable speed drives |
Repair Parts for 6100-N3
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 003433 | Ships in | $680.00 | ||
| 004353 | Ships in | $680.00 | ||
| 003433-T | Call for Shipping | ||||
| 004353‐T | Ships in | $748.00 | ||
