562-D-N3

Image shown may not be actual product

562-D-N3

0 reviews

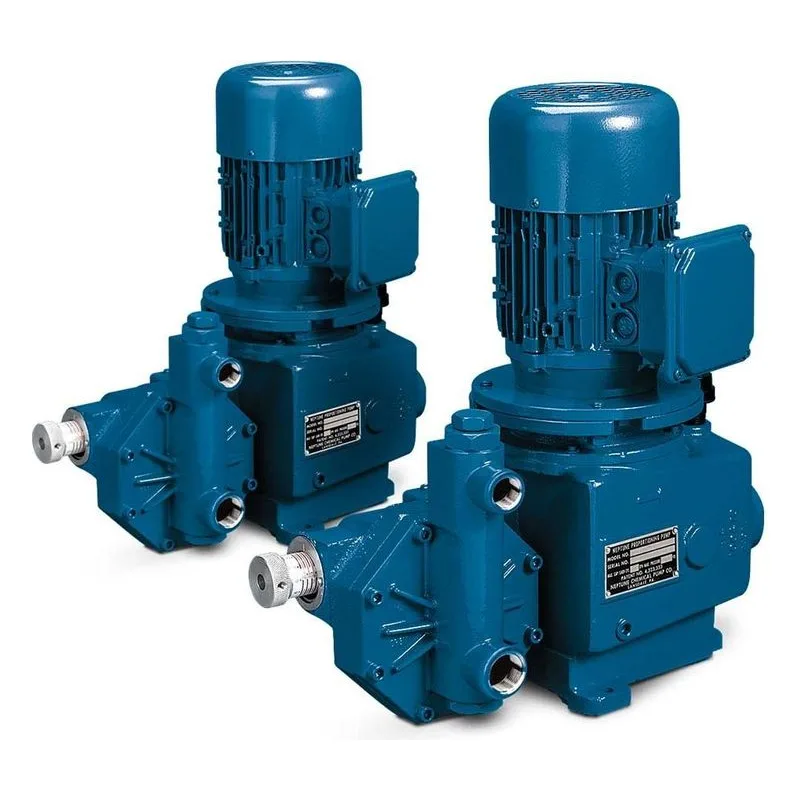

562-D-N3 Neptune Pumps Hydraulic Metering Pump, Series 560. 80.0 Total GPH at 100 psi, 175 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.5 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 562DN3. PSG, A Dover Company.

$7,897.00

Best Price Guarantee!
1579PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 562-D-N3 | Part #: 562DN3

Overview
Series Info
Reviews
Repair Parts

562-D-N3

Diameter	2" (50.8 mm) Piston
Diaphragm	PTFE
HP	0.5
Hz	60
Material	316SS, FKM O-Rings
Maximum Flow (GPH)	80.0 Total GPH at 100 psi
Maximum Operating Temperature	200 °F (93.3 °C)
Maximum Pressure (PSI)	175 PSI (12.1 Bar)

Maximum Strokes Per Minute	72
Motor Enclosure Type	TEFC - (Totally Enclosed Fan Cooled)
Part Number	562DN3
Phase	1 Ph (Single Phase)
Quick Specs	1/2HP/1/60/115/TEFC Integrally mounted motor
Type	Duplex
Voltage	115

Neptune 560 Hydraulic Metering Pumps Information

Product Type
Chemical Metering, Diaphragm Pumps, Injection / Dosing, Metering, Wastewater Treatment
Features & Benefits
Features and Benefits • Ten turn micrometer dial calibrated in 1% increments, with the ability to adjust capacity from 10% to 100% • Variable Oil By-Pass™ Stroke Adjustment provides a better valve performance when compared to variable linkage designs • Bright color contrasted dial protected from corrosion by clear PVC Covering • Stroke mechanism moves only when adjustment is made, eliminating wear • Piston is powered through complete stroke length at all capacity adjustments, eliminating stress, wear and shock of lost motion designs • Totally enclosed fan-cooled motor with built-in automatic thermal overload • Simplex capacities from 40 gph (151.4 L/h) to 94 gph (355 L/h) • Pressures up to 350 psi (24 bar)
