500-A Series Hydraulic Metering Pumps are Neptune's Simplex design. Neptune's Simplex design configuration includes a single micrometer dial with one liquid head. 500-A Series pumps cannot be converted to the Duplex design. Each pump Offers a variable Oil ByPass™ stroke adjustment feature which allows for better valve performance than variable linkage designs. The valve checks have extra time to seat even with heavy liquids since they are idle during the by-pass part of the suction / discharge strokes. Comes standard with 1/3 HP, 1ph, 115 VAC, 60C, TEFC motor with other options available. Materials of construction options include: 316 Stainless Steel, Carpenter-20, or PVC Liquid Heads & PTFE Diaphragms. FKM standard O-Rings with optional PTFE offered. Capacities from 0.80 gph (3.03 L/h) to 18 gph (68 L/h). 1,100 psi (75.8 bar) Maximum Pressure. Maximum Temperatures: 316SS & C-20 - 200°F (93°C); PVC - 125°F (52°C).

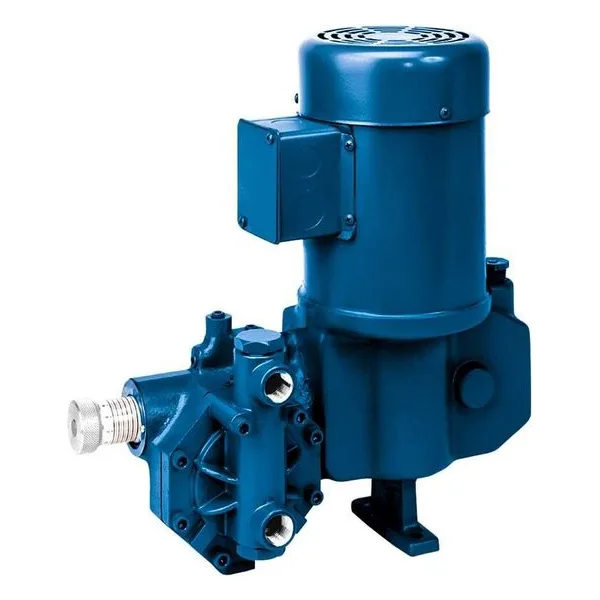

Neptune 500-A Hydraulic Simplex Metering Pumps
Search Results
(336 results)
Manufacturer:
Neptune Metering Pumps
Clear all525-A-N3
Neptune Metering Pumps
525-A-N3 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 7 GPH at 100 psi, 900 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 525AN3. PSG, A Dover Company.
515-A-N3
Neptune Metering Pumps
515-A-N3 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 3 GPH at 100 psi, 1100 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515AN3. PSG, A Dover Company.
520-A-N3
Neptune Metering Pumps
520-A-N3 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 2 GPH at 100 psi, 700 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 520AN3. PSG, A Dover Company.
522-A-N3
Neptune Metering Pumps
522-A-N3 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 4 GPH at 100 psi, 700 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 522AN3. PSG, A Dover Company.
500-A-N3
Neptune Metering Pumps
500-A-N3 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 0.8 GPH at 100 psi, 1000 psi Max Pressure. 316SS, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500AN3. PSG, A Dover Company.
500-A-N4
Neptune Metering Pumps
500-A-N4 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 0.8 GPH at 100 psi, 1000 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500AN4. PSG, A Dover Company.
500-A-N5
Neptune Metering Pumps
500-A-N5 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 0.8 GPH at 100 psi, 150 psi Max Pressure. PVC, FKM O-Rings, Glass Ball-Check, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 500AN5. PSG, A Dover Company.
515-A-N4
Neptune Metering Pumps
515-A-N4 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 3 GPH at 100 psi, 1100 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515AN4. PSG, A Dover Company.
515-A-N5
Neptune Metering Pumps
515-A-N5 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 3 GPH at 100 psi, 400 psi Max Pressure. PVC, FKM O-Rings, Glass Ball-Check, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 515AN5. PSG, A Dover Company.
520-A-N4
Neptune Metering Pumps
520-A-N4 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 2 GPH at 100 psi, 700 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 520AN4. PSG, A Dover Company.
520-A-N5
Neptune Metering Pumps
520-A-N5 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 2 GPH at 100 psi, 400 psi Max Pressure. PVC, FKM O-Rings, Glass Ball-Check, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 520AN5. PSG, A Dover Company.
522-A-N4
Neptune Metering Pumps
522-A-N4 Neptune Pumps Simplex Hydraulic Metering Pump, Series 500-A. 4 GPH at 100 psi, 700 psi Max Pressure. Carpenter 20, FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 522AN4. PSG, A Dover Company.
