SR1830-23-2-01

Image shown may not be actual product

SR1830-23-2-01

0 reviews

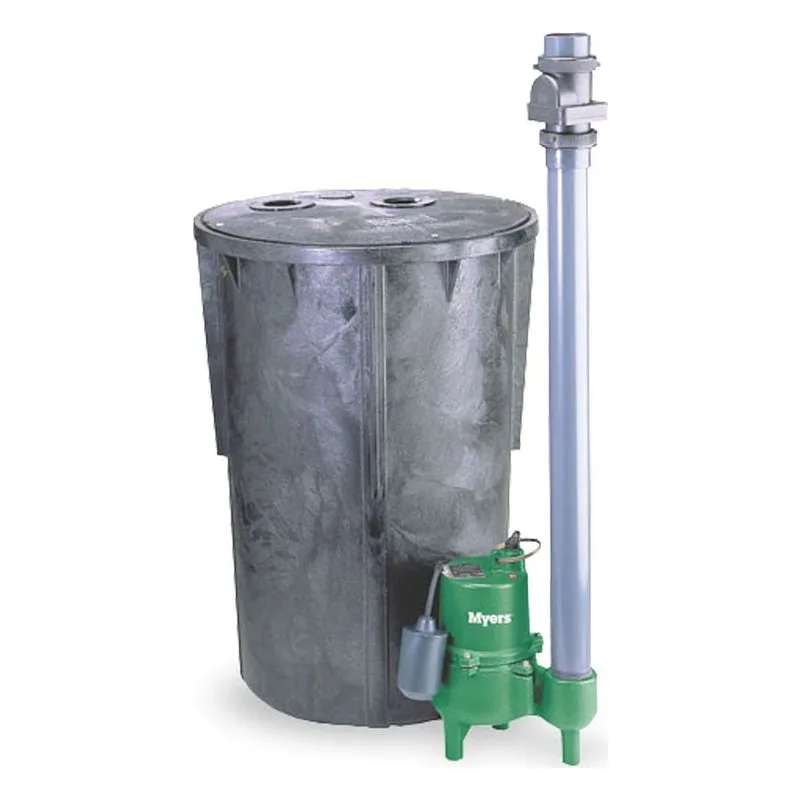

Myers SR1830-23-2-01 SR1830 Pre-Plumbed Sewage Package. 4/10 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase) Motor. 115 GPM, Recessed, thermoplastic Impeller, 2" Discharge, Tethered Automatic Piggyback Float Switch. A Pentair Pumps Brand.

Pump Catalog Price
Retail Price: $1,365.60
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: SR1830-23-2-01

Overview
Series Info
Reviews
Literature/Manuals

SR1830-23-2-01

Capacities (GPM)	115 GPM
Cord Length	20'
Discharge NPT (Inches)	2"
Float Switch Style	Tethered Automatic Piggyback
Heads To (Feet)	18 Feet
HP	4/10
Hz	60

Impeller Material	Recessed, thermoplastic
Phase	1 Ph (Single Phase)
Quick Specs	25195D100 BASIN ASSY SR1830-23-2 SLD PL
Shaft Seal Material	Type 11A, carbon and ceramic
Solids (Inches)	2"
Voltage	115

SR1830 Packaged Sewage Systems Information

Features & Benefits
Myers SR1830 Packaged Sewage System Features and Benefits: 4/10 HP, 115V, 12A, 1Ø, 60Hz motor Oil-filled motor for maximum heat dissipation and continuous bearing lubrication Residential septic tank sewage Large sumps Recessed vortex impeller for free flow of solids up to 2” diameter Rotary shaft seal has carbon and ceramic faces for positive seal Thermal overload protection with automatic reset 2” diameter discharge
General Description
Myers SR1830 Packaged Sewage Systems General Specifications: BODY CONSTRUCTION: Pump: Cast Iron Basin: Structural Foam HORSEPOWER: 4/10 HP MAXIMUM HEAD: 19' MAXIMUM CAPACITY: 95 GPM FLOW at 10' LIFT: 60 GPM SWITCH TYPE: Tethered DISCHARGE PIPE SIZE: 2" MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): 12 Amps CORD LENGTH: 10' (20' optional) VOLTAGE: 115v AC, 60 Hz MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
