MW50-21

Image shown may not be actual product

0 reviews

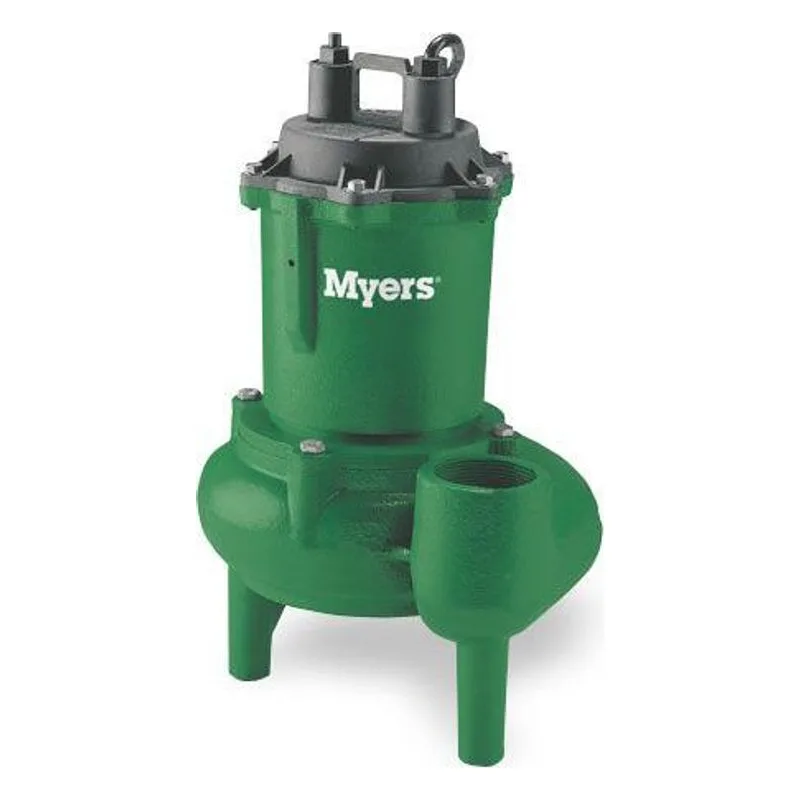

Myers Pumps MW50-21 Solids Handling Sewage Pump, 1/2 HP, 230 Volts, 1 Phase, 2" Discharge, 2" Solids

Pump Catalog Price
Retail Price: $1,004.00
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: MW50-21 | Model #: 26088D003

Myers Pumps MW50-21 Solids Handling Sewage Pump, 1/2 HP, 230 Volts, 1 Phase, 2" Discharge, 2" Solids

Phase	1
Quick Specs	Myers MW50 Series Sewage Pumps (2" Solids)
Solids (Inches)	2" (50 mm)
Voltage	230

Features & Benefits
Myers MW50 Series Sewage Pumps Features And Benefits: Enclosed design for high-efficiency pumping Eliminates possibility of jamming between impeller and volute Passes full 2” solids Original performance can be restored if wear occurs by replacing volute seal ring Oil-filled motor for maximum heat dissipation and continuous bearing lubrication High-torque, permanent split capacitor (PSC) motors; no starting switches or relays to wear out Field-tested, wide-angle, mercury-free piggyback mechanical float switch provides maximum drawdown (automatic models only) Long, flexible type 6 seal provides high-pressure sealing with improved seal face protection by location Lower ball bearing eliminates sleeve bearing wear and significantly reduces motor wear Low-amp draw from the efficient PSC motor means less heat build-up
General Description
Myers MW50 Series Sewage Pumps General Specifications: BODY CONSTRUCTION: Class 30 Cast Iron HORSEPOWER: 1/2 HP MAXIMUM HEAD: 27' MAXIMUM CAPACITY: 135 GPM FLOW at 10' LIFT: 130 GPM SWITCH TYPE: Wide-Angle Mercury-Free Piggyback Mechanical Float MINIMUM SUMP DIAMETER: Simplex: 24" Duplex: 36" DISCHARGE PIPE SIZE: 2" NPT MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): 4.5 Amps on 230v / 9 Amps on 115v CORD LENGTH: 20' (16/3 SJTW) VOLTAGE: Available in 230v 1-phase or 115v, 60 Hz MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
