MESPD100MH2-2

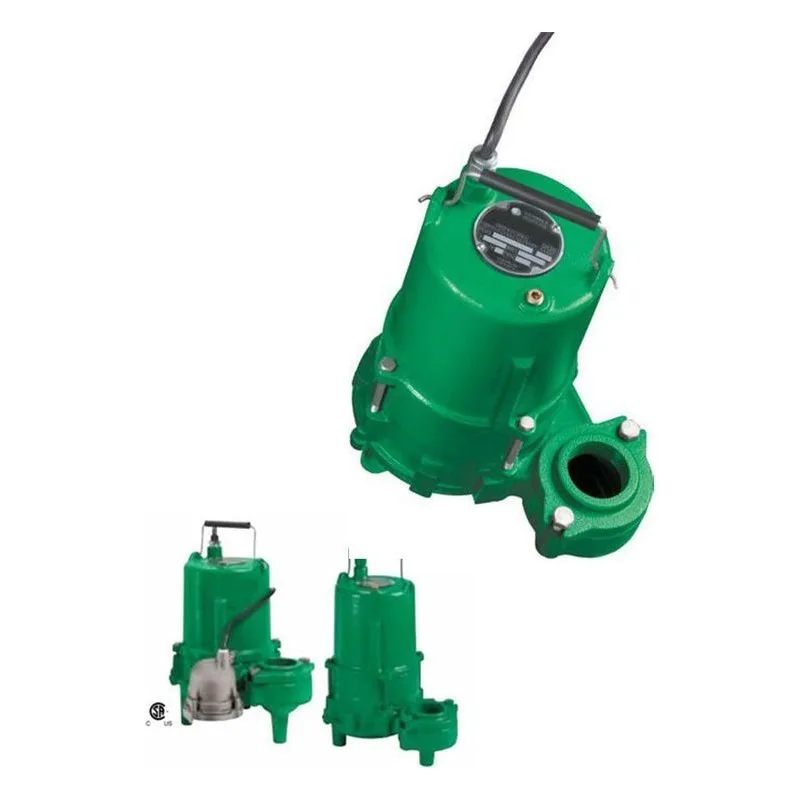

MESPD50 / MESPD100 Effluent Pumps Information

The Myers MESPD50/100H can handle capacities up to 110 gallons per minute and heads to 50 feet, while the MESPD100 handles capacities up to 140 gallons per minute and heads to 63 feet. These pumps feature a high-quality cast iron pump volute, motor housing and seal housing construction that help to ensure a long service life. The pump’s non clogging, two-vane, cast iron impeller, which is threaded to a stainless steel shaft, is capable of handling up to 3/4 inch spherical solids – providing long life in demanding applications. A seal-failure sensor probe (for connection to a seal failure alarm) is standard on three-phase units and available as an option on single-phase models. Two carbon- and ceramic-faced mechanical shaft seals are mounted in tandem to provide double protection against water entry for a long, leakproof life. The MESPD50/100H’s oil-filled motor provides superior cooling characteristics, allowing the motor to run cool and quiet for years. This oil-filled design also provides permanent lubrication of the shaft bearings, minimizing maintenance and extending the service life of the pump. In addition, to protect against overheating, the motor windings contain an automatic reset thermal overload protection (1ø). Automatic models (1/2 HP) feature the exclusive Myers diaphragm pressure switch, which provides proven reliability in installations where a float might hang up. It also incorporates a unique piggyback plug arrangement, which allows for simple conversion to manual operation by simply removing the switch plug and inserting the motor plug directly into the electrical outlet. The MESPD50/100H are completely submersible, “high-head”, dual-seal pumps for use in septic tank effluent applications.
