CMV5A-11-01

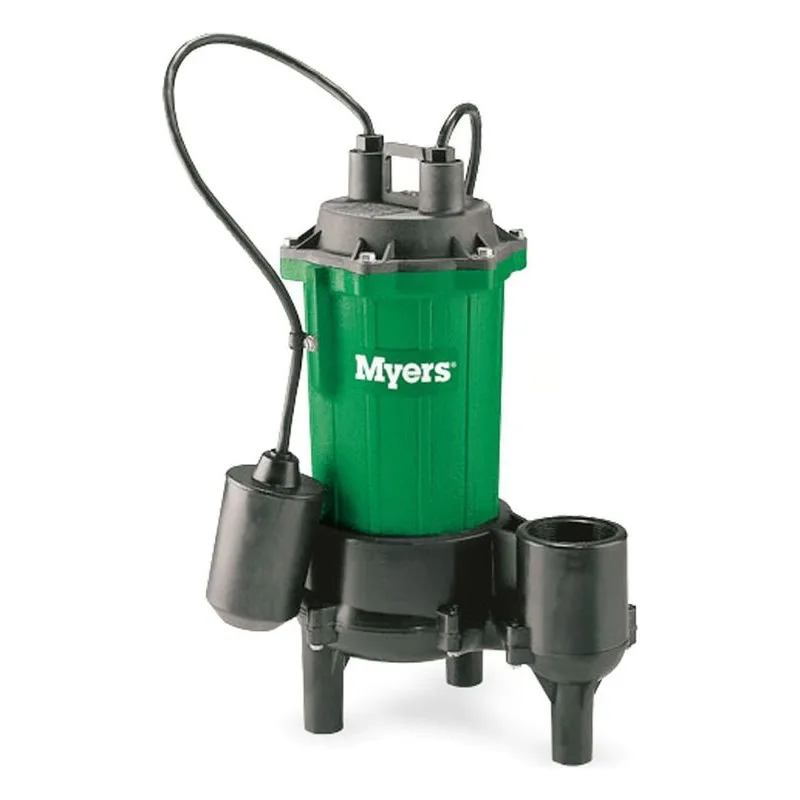

Image shown may not be actual product

CMV5A-11-01

0 reviews

Myers CMV5A-11-01 CMV5 Series Sewage Pump. 1/2 HP, 115 Volts, 60 Hz, 1625 RPM, 1 Ph (Single Phase) Motor. 87 GPM, Recessed, thermoplastic Impeller, 2" Discharge, Automatic Float Switch. A Pentair Pumps Brand.

Pump Catalog Price
Retail Price: $744.80
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: CMV5A-11-01 | Model #: 24682D100

Overview
Series Info
Reviews
Literature/Manuals

CMV5A-11-01

Capacities (GPM)	87 GPM
Cord Length	20'
Discharge NPT (Inches)	2"
Float Switch Style	Automatic
Heads To (Feet)	19 Feet
HP	1/2
Hz	60
Impeller Material	Recessed, thermoplastic
Model Number	24682D100

Phase	1 Ph (Single Phase)
Quick Specs	24682D100 PUMP SUMP SEWAGE PLAS 1/2H
Shaft Seal Material	Type 11A, carbon and ceramic
Solids (Inches)	2"
Speed (RPM)	1625
UPC	054128300665
Voltage	115

CMV5 Sewage Pumps Information

Features & Benefits
Myers CMV5 Series (2" Solids) Sewage Features and Benefits: Wide-angle, mercury-free mechanical float switch for maximum drawdown Recessed vortex impeller operates completely out of volute and provides free flow through passage for solids and liquids Oil-filled motor for maximum heat dissipation and continuous bearing lubrication Recessed vortex impeller provides minimal radial loading for long bearing life
General Description
Myers CMV5 Series (2" Solids) Sewage General Specifications: BODY CONSTRUCTION: Cast Iron HORSEPOWER: 1/2 HP MAXIMUM HEAD: 18' MAXIMUM CAPACITY: 95 GPM FLOW at 10' LIFT: 60 GPM SWITCH TYPE: Tethered MINIMUM SUMP DIAMETER: Simplex: 18" Duplex: 30" DISCHARGE PIPE SIZE: 2" NPT MAXIMUM SOLIDS HANDLING SIZE: 2" AMP DRAW (full load): 12 Amps CORD LENGTH: 20' (16/3 SJTW) VOLTAGE: 115V AC, 60 Hz MAX INTERMITTENT LIQUID TEMP: 140 degrees F (60 deg C)
