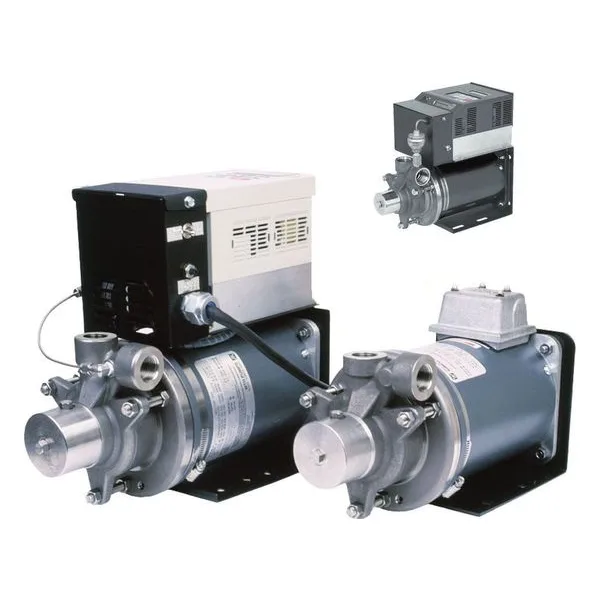

X / X41 Series

X / X41 Sealless Canned Regenerative Turbine Pumps

MTH X41 models are sealless regenerative turbine pumps, known as canned hermetic or zero emission pumps, These turbine pumps are designed to handle applications with hard to seal fluids when leak free performance is required. Mechanical seals simply cannot provide the reliability, protection and performance needed. Water and glycol mixtures and exotic heat transfer fluids present no difficulty for these pumps at fluid temperatures from -40°C up to 130°C. MTH's canned motor design is favorable to magnetic drive couplings because it does not add length to the pumps in tight OEM enclosures. These models also do not suffer from the magnetic de-coupling problems often associated with mag-drive solutions. Three bearings, high strength cast stainless steel components, and a sealless design assure extended trouble free maintenance life span.

X41 Design Benefits & Features

• Extremely Long Service Life
• Leak Free Sealless Design
• Canned Stator Motor
• Capacities to 22 GPM (Gallons Per Minute)
• Heads to 450 Feet
• Low NPSH Requirements
• Temperature Range -40°C to 130°C
• Compact Integrated Design
• Stainless Steel Wetted Parts for Excellent Chemical Compatibility
• Standard NPT Threads with optional SAE, BSP, and ISO Available
• Conduit or Electrical Junction Box
• Variable Frequency Drive / Transducer Package Optional

Low NPSH Requirements
Like its T41 Series mechanically sealed counterpart, the X Series hydraulic passageways are designed to minimize thrust on the selfadjusting impeller to avoid upsetting its hydraulic balance, and to handle low NPSH conditions which can occur in some applications. New to the X Series is the location of the inlet and outlet on the centerline of the impeller to further eliminate the potential of axial imbalance that sometimes occurs during periods of marginal NPSH availability.
