0809-0265-0200

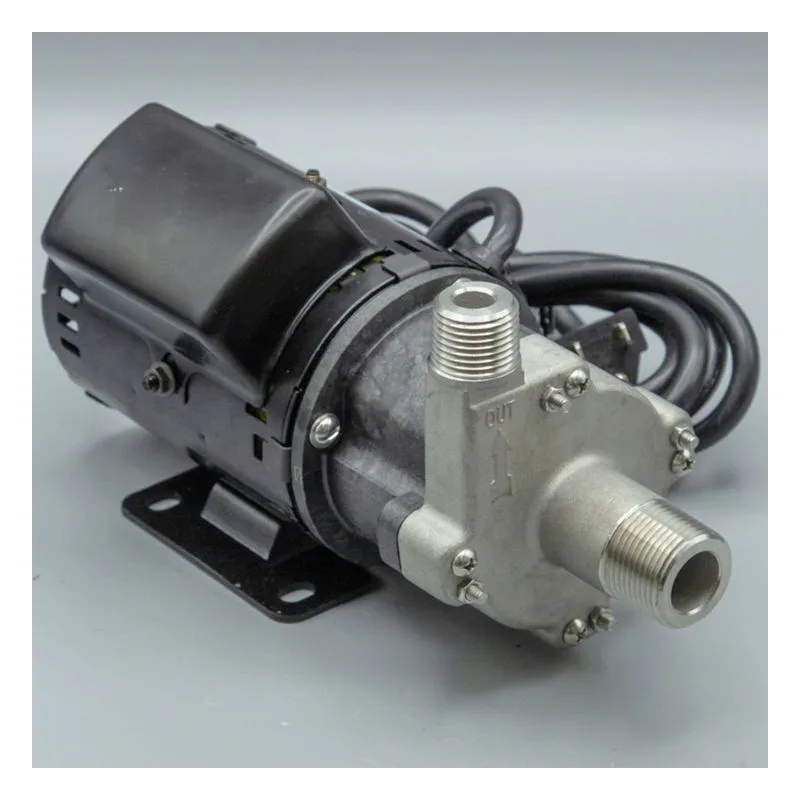

March Pumps 0809-0265-0200 Series 815 Hydronic Mag Drive Pump, Model Number 815-SS-C 230V. 0.04 HP (Horsepower), 230V, 1 Phase (1 Ph), 50/60 Hz, 3450 RPM, Broad Ocean Motor. Wet End Materials: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller), 3/4" MPT Suction & 1/2" MPT Discharge. 8 GPM (Gallons Per Minute) Max Flow, Heads to 18.6 ft., 150 PSI Max Pressure, and 250°F Liquid Temperature.
$423.28
- Best Price Guarantee!
- 84PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
0809-0265-0200
March Pumps 0809-0265-0200 Series 815 Hydronic Mag Drive Pump, Model Number 815-SS-C 230V. 0.04 HP (Horsepower), 230V, 1 Phase (1 Ph), 50/60 Hz, 3450 RPM, Broad Ocean Motor. Wet End Materials: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller), 3/4" MPT Suction & 1/2" MPT Discharge. 8 GPM (Gallons Per Minute) Max Flow, Heads to 18.6 ft., 150 PSI Max Pressure, and 250°F Liquid Temperature.
| Cord Length | 3 ft. |

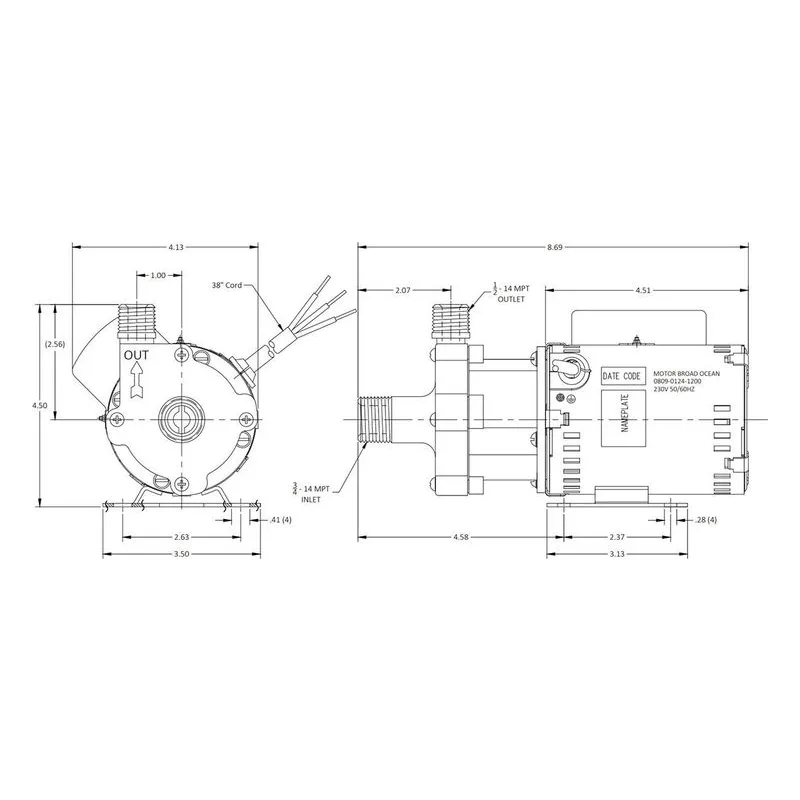

| Discharge NPT (Inches) | 1/2" MPT |
| Engine Model | Broad Ocean Motor |

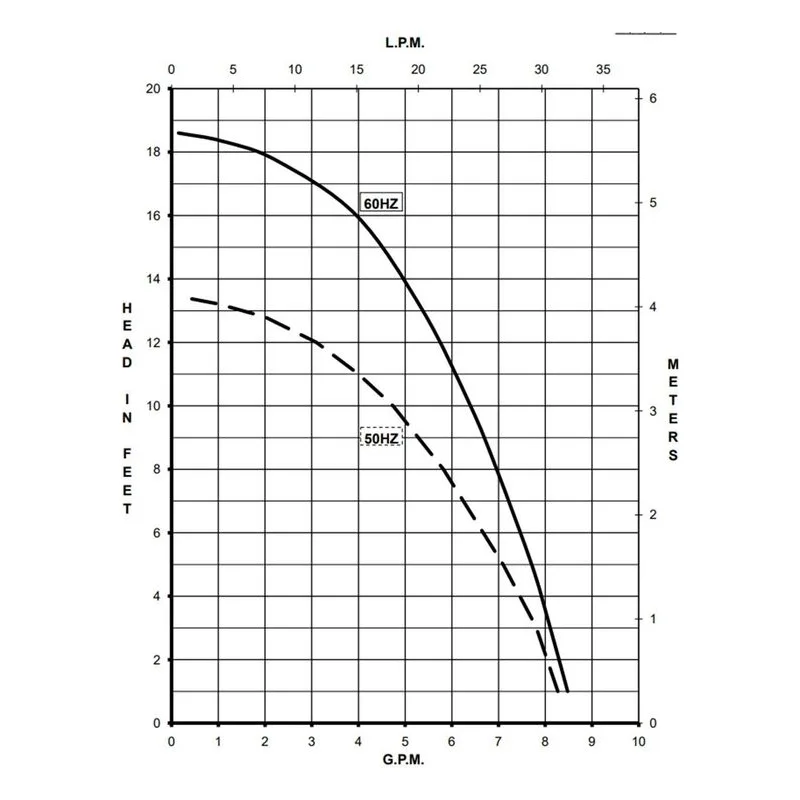

| Heads To (Feet) | 18.6 ft. (5.7 m) |
| Housing Material | Stainless Steel |
| HP | 0.04 HP |
| Hz | 50/60 Hz |
| Impeller Material | Ryton / Teflon / Glass |
| KW | 0.029 kW |
| Liquid End Configuration | Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller) |
| Liquid Temperature | 250°F (121°C) |
| Max Amps | 0.3 A |
| Maximum Flow (GPM) | 8 GPM (30.3 LPM) |
| Maximum Pressure (PSI) | 150 PSI (10.3 Bar) |
| Model Number | 815-SS-C 230V |
| Motor | 0809-0124-1000 |
| Motor Shaft Material | Stainless Steel |
| Phase | 1 Ph (Single Phase) |
| Quick Specs | 815-SS-C 230V With Broad Ocean Motor |
| Speed (RPM) | 3450 RPM |
| Suction NPT (Inches) | 3/4" MPT |
| Valve / Seat / O-Ring | Silicone O-Ring |
| Voltage | 230V |
Series 815 Information
| Features & Benefits |
|---|
• Maximum flow of 8GPM |
Categories
Chillers / Hot Water Systems
113 productsFood & Beverage Services
108 productsHigh Temperature
77 products
| Type | Title | Link | |
|---|---|---|---|
March Pumps Series 815 Hydronic Mag Drive Pumps Manual | View | ||
Repair Parts for 0809-0265-0200
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 0809-0205-1000 | Ships in | $1.70 | ||
 | 0809-0247-0010 | Ships in | $198.05 | ||
| 0809-0165-1000 | Ships in | $2.55 | ||
 | 0809-0043-1000 | Ships in | $0.85 | ||
| 0809-0107-0200 | Ships in | $45.90 | ||
 | 0809-0012-1000 | Ships in | $13.60 | ||
| 0135-0040-1000 | Ships in | $0.85 | ||
 | 0125-0083-0100 | Ships in | $34.00 | ||
| 0858-0004-1000 | Ships in | $0.85 | ||
 | 0809-0058-1000 | Ships in | $19.55 | ||
| 0809-0124-1000 | Ships in | $122.40 | ||
