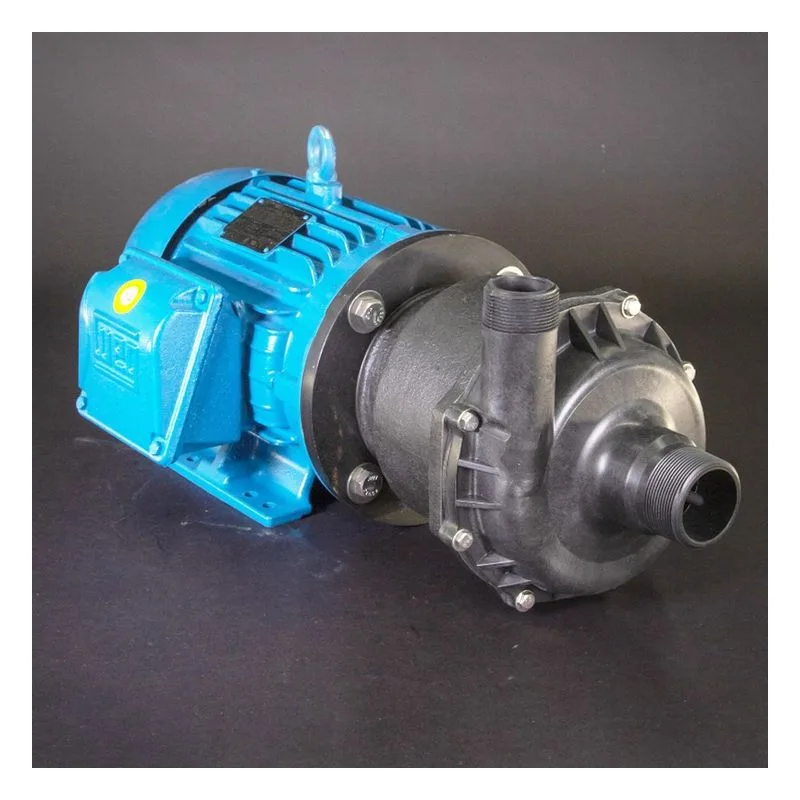

March Pumps 0157-0164-0100, Series 8 Sealless Centrifugal Magnetic Drive Chemical Pump, Model: TE-8C-MD. 3 HP, 575 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor. 2" MNPT Suction, 1-1/2" MNPT Discharge. Materials: Polypropylene (Front Housing, Impeller), Carbon Filled Polypropylene (Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Teflon/Ryton/Carbon (Bushing), Plastic (Bracket).

$3,823.60

Best Price Guarantee!
764PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0157-0164-0100 | Model #: TE-8C-MD

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

0157-0164-0100

Discharge NPT (Inches)	1-1/2" MNPT
Engine	Weg
Heads To (Feet)	95 Feet
HP	3
Hz	60
Maximum Flow (GPM)	120 GPM / 454 LPM
Maximum Working Pressure (PSIG)	50 psi (344 kPa)

Model Number	TE-8C-MD
Motor Enclosure Type	TEFC - Totally Enclosed Fan Cooled
Phase	3 Ph (Three Phase)
Quick Specs	TE-8C-MD 575V 3Ph 3HP PL Bkt
Suction NPT (Inches)	2" MNPT
Voltage	575

Series 8 Information

Features & Benefits
Max Flow: 120 GPM (400LPM 50HZ) Max Head: 95 Feet (20M 50HZ) Available in Polypropylene/Kynar, Kynar and Stainless Steel 1PH 115V/230V or 3PH 230V/460V

Features & Benefits

Max Flow: 120 GPM (400LPM 50HZ)
Max Head: 95 Feet (20M 50HZ)
Available in Polypropylene/Kynar, Kynar
and Stainless Steel
1PH 115V/230V or 3PH 230V/460V
