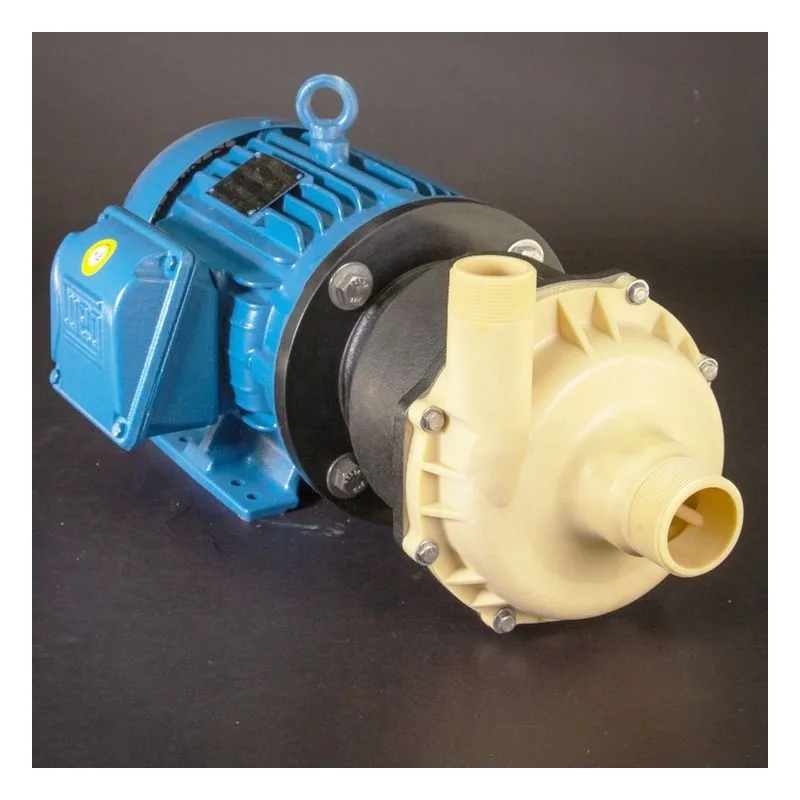

Image shown may not be actual product

0157-0130-0100

0 reviews

0157-0130-0100 March Pumps Series 8 Chemical Pump, Model TE-8K-MD XP 3PH 5HP (PL Bracket). 5 HP, 208/230/460 Volts, 50/60 Hz, 3 Ph (Three-Phase), XP - Explosion Proof Motor Enclosure. 2" MPT Suction, 1-1/2" MPT Discharge. Materials: Glass filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Plastic (Motor Bracket).

$5,765.76

Best Price Guarantee!
1152PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0157-0130-0100 | Model #: TE-8K-MD

Overview
Series Info
Reviews

0157-0130-0100

Discharge NPT (Inches)	1-1/2" MPT
Explosion Proof	Yes
Heads To (Feet)	95 Feet
HP	5
Hz	50/60
Maximum Flow (GPM)	120 GPM / 454.2 LPM
Maximum Working Pressure (PSIG)	75 psi (517 kPa)

Model Number	TE-8K-MD
Motor Enclosure Type	XP - Explosion Proof
Phase	3 Ph (Three Phase)
Quick Specs	TE-8K-MD XP 3PH 5HP (PL Bracket)
Suction NPT (Inches)	2" MNPT
Voltage	208/230/460

Series 8 Information

Features & Benefits
Max Flow: 120 GPM (400LPM 50HZ) Max Head: 95 Feet (20M 50HZ) Available in Polypropylene/Kynar, Kynar and Stainless Steel 1PH 115V/230V or 3PH 230V/460V

Features & Benefits

Max Flow: 120 GPM (400LPM 50HZ)
Max Head: 95 Feet (20M 50HZ)
Available in Polypropylene/Kynar, Kynar
and Stainless Steel
1PH 115V/230V or 3PH 230V/460V
