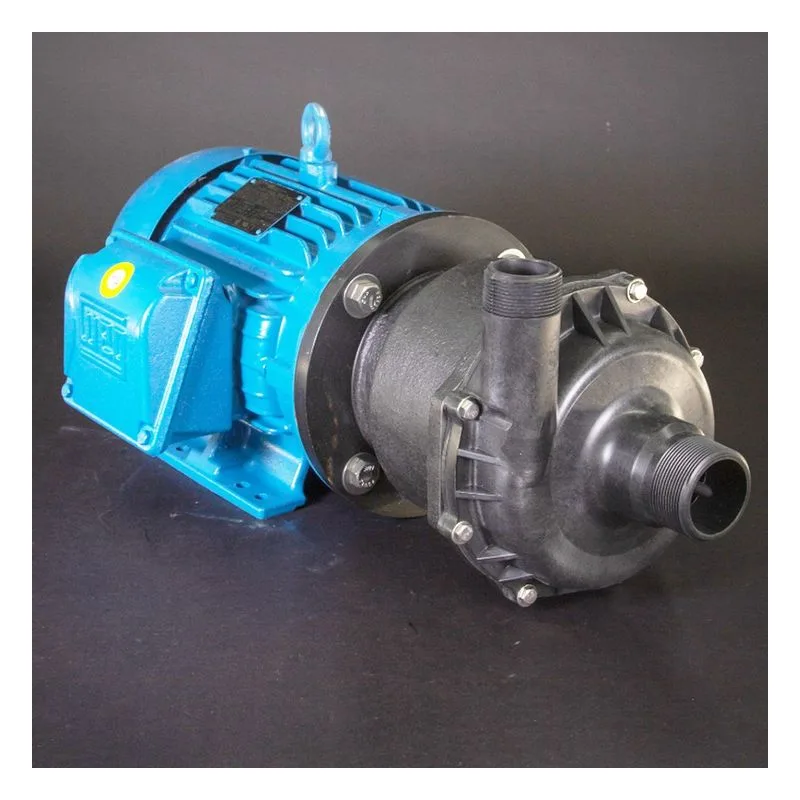

0157-0108-0100 March Pumps Series 8 Chemical Pump, Model TE-8C-MD-HF 3PH 5HP. 5 HP, 208/230/460 Volts, 50/60 Hz, 3 Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure, 2" MPT Suction, 1-1/2" MPT Discharge. Materials: Polypropylene (Front Housing, Impeller), Carbon Filled Polypropylene (Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Teflon/Ryton/Carbon (Bushing).

$4,334.88

Best Price Guarantee!
866PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0157-0108-0100 | Model #: TE-8C-MD-HF 3PH 5HP

Overview
Series Info
Reviews
Literature/Manuals

0157-0108-0100

Discharge NPT (Inches)	1-1/2" MPT
Heads To (Feet)	95 Feet
HP	5
Hz	50/60
Maximum Flow (GPM)	150 GPM / 567.8 LPM
Maximum Working Pressure (PSIG)	50 psi (344 kPa)
Model Number	TE-8C-MD-HF 3PH 5HP

Motor Enclosure Type	TEFC - Totally Enclosed Fan Cooled
Phase	3 Ph (Three Phase)
Quick Specs	TE-8C-MD-HF
Suction NPT (Inches)	2" MNPT
Voltage	208/230/460

Series 8 Information

Features & Benefits
Max Flow: 120 GPM (400LPM 50HZ) Max Head: 95 Feet (20M 50HZ) Available in Polypropylene/Kynar, Kynar and Stainless Steel 1PH 115V/230V or 3PH 230V/460V

Features & Benefits

Max Flow: 120 GPM (400LPM 50HZ)
Max Head: 95 Feet (20M 50HZ)
Available in Polypropylene/Kynar, Kynar
and Stainless Steel
1PH 115V/230V or 3PH 230V/460V
