0155-0377-0100

Home
March
Series 7
0155-0377-0100

Image shown may not be actual product

0155-0377-0100

0 reviews

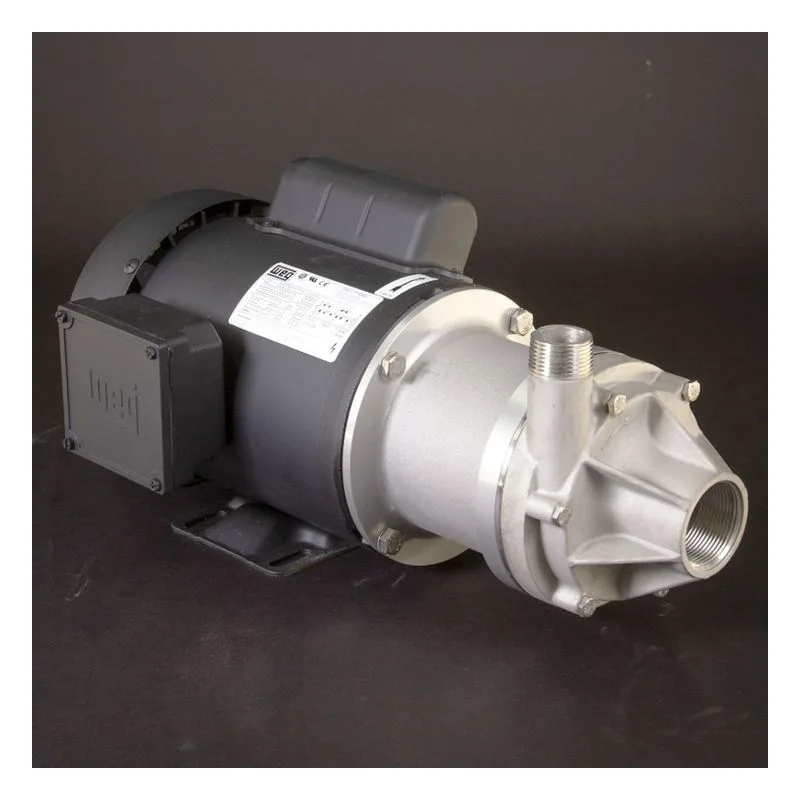

March Pumps 0155-0377-0100, Series 7 Sealless Centrifugal Magnetic Drive Chemical Pump, Model: TE-7S-MD. 1 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - Explosion Proof Motor. 1-1/2" FNPT Suction, 1" MNPT Discharge. Materials: 316 Stainless Steel (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing), Noryl (Bracket).

$3,983.76

Best Price Guarantee!
796PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0155-0377-0100 | Model #: TE-7S-MD

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

0155-0377-0100

Discharge NPT (Inches)	1" MNPT
Explosion Proof	Yes
Heads To (Feet)	57.5 Feet
HP	1
Hz	60
Maximum Flow (GPM)	53 GPM / 200 LPM
Maximum Working Pressure (PSIG)	200 psi (1378 kPa)

Model Number	TE-7S-MD
Motor Enclosure Type	XP - Explosion Proof
Phase	3 Ph (Three Phase)
Quick Specs	TE-7S-MD 3Ph 1HP EX NR Bkt
Suction NPT (Inches)	1-1/2" FNPT
Voltage	230/460

Series 7 Information

Features & Benefits
Max Flow: 53GPM (180LPM 50HZ) Max Head: 60Feet (12.3M 50HZ) Available in Ryton/Polypropylene, Kynar, and Stainless Steel 1PH 115V/230V or 3PH 230V/460V

Features & Benefits

Max Flow: 53GPM (180LPM 50HZ)
Max Head: 60Feet (12.3M 50HZ)
Available in Ryton/Polypropylene, Kynar,
and Stainless Steel
1PH 115V/230V or 3PH 230V/460V

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	March TE-7S-MD Series 7 Chemical Pump Manual (2022)		View

Repair Parts for 0155-0377-0100

	shipping	price
0155-0014-1000	Ships in	$2.55	Select item
0155-0036-0010	Ships in	$624.75	Select item
0155-0010-1000	Ships in	$9.35	Select item
0155-0009-1000	Ships in	$7.65	Select item
0155-0117-1000	Ships in	$27.20	Select item
0155-0112-0400	Ships in	$1,221.45	Select item
0155-0035-0010	Ships in	$368.05	Select item
0155-0130-0200	Ships in	$321.30	Select item
0155-0017-1000	Ships in	$2.55	Select item
0155-0019-1000	Ships in	$0.85	Select item
0155-0318-0100	Ships in	$2,330.70	Select item
