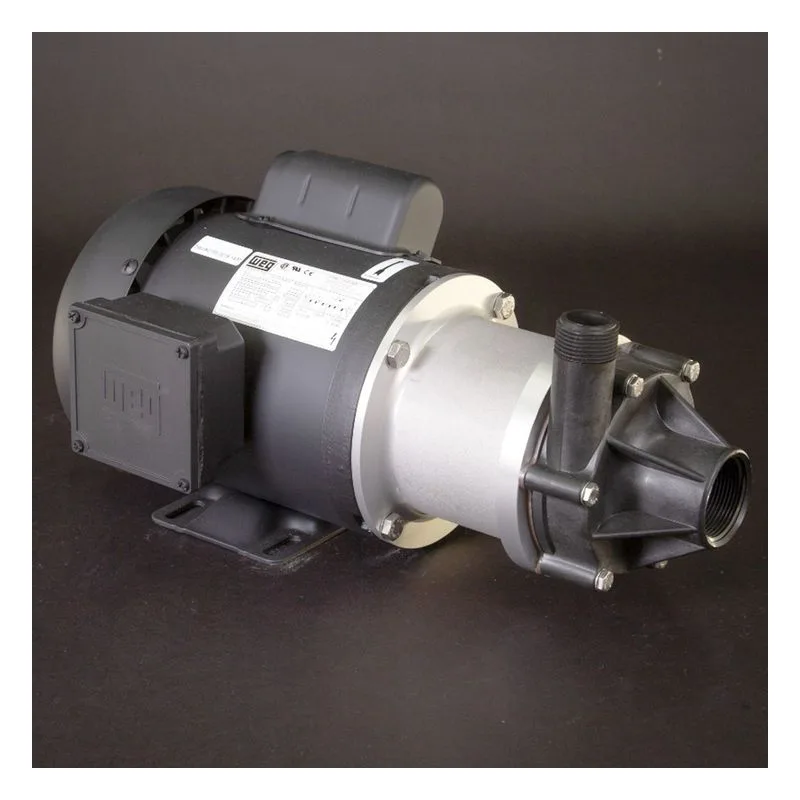

March Pumps 0155-0357-0100, Series 7 Sealless Centrifugal Magnetic Drive Chemical Pump, Model: TE-7R-MD. 0.75 HP, 115/230 Volts, 50/60 Hz, 1 Ph (Single Phase), TEFC - Totally Enclosed Fan Cooled Motor. 1-1/2" FNPT Suction, 1" MNPT Discharge. Materials: Polypropylene (Front Housing, Impeller), Ryton (Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ryton/Teflon/Carbon (Bushing), Noryl (Bracket).

$1,225.84

Best Price Guarantee!
244PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0155-0357-0100 | Model #: TE-7R-MD

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

0155-0357-0100

Discharge NPT (Inches)	1" MNPT
Heads To (Feet)	60 Feet
HP	0.75
Hz	50/60
Maximum Flow (GPM)	53 GPM / 200 LPM
Maximum Working Pressure (PSIG)	50 psi (344 kPa)
Model Number	TE-7R-MD

Motor Enclosure Type	TEFC - Totally Enclosed Fan Cooled
Phase	1 Ph (Single Phase)
Quick Specs	TE-7R-MD 1Ph 3/4HP NR Bkt
Suction NPT (Inches)	1-1/2" FNPT
Voltage	115/230

Series 7 Information

Features & Benefits
Max Flow: 53GPM (180LPM 50HZ) Max Head: 60Feet (12.3M 50HZ) Available in Ryton/Polypropylene, Kynar, and Stainless Steel 1PH 115V/230V or 3PH 230V/460V

Features & Benefits

Max Flow: 53GPM (180LPM 50HZ)
Max Head: 60Feet (12.3M 50HZ)
Available in Ryton/Polypropylene, Kynar,
and Stainless Steel
1PH 115V/230V or 3PH 230V/460V

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	March TE-7R-MD Series 7 Chemical Pump Manual (2022)		View

Repair Parts for 0155-0357-0100

	shipping	price
0155-0014-1000	Ships in	$2.55	Select item
0155-0021-1000	Ships in	$0.85	Select item
0155-0011-1000	Ships in	$38.25	Select item
0155-0010-1000	Ships in	$9.35	Select item
0155-0009-1000	Ships in	$7.65	Select item
0155-0039-1000	Ships in	$23.80	Select item
0155-0159-0500	Ships in	$272.00	Select item
0155-0067-0100	Ships in	$55.25	Select item
0155-0130-0200	Ships in	$321.30	Select item
0155-0017-1000	Ships in	$2.55	Select item
0155-0019-1000	Ships in	$0.85	Select item
0155-0016-1000	Ships in	$530.40	Select item
0155-0165-0100	Ships in	$510.85	Select item
