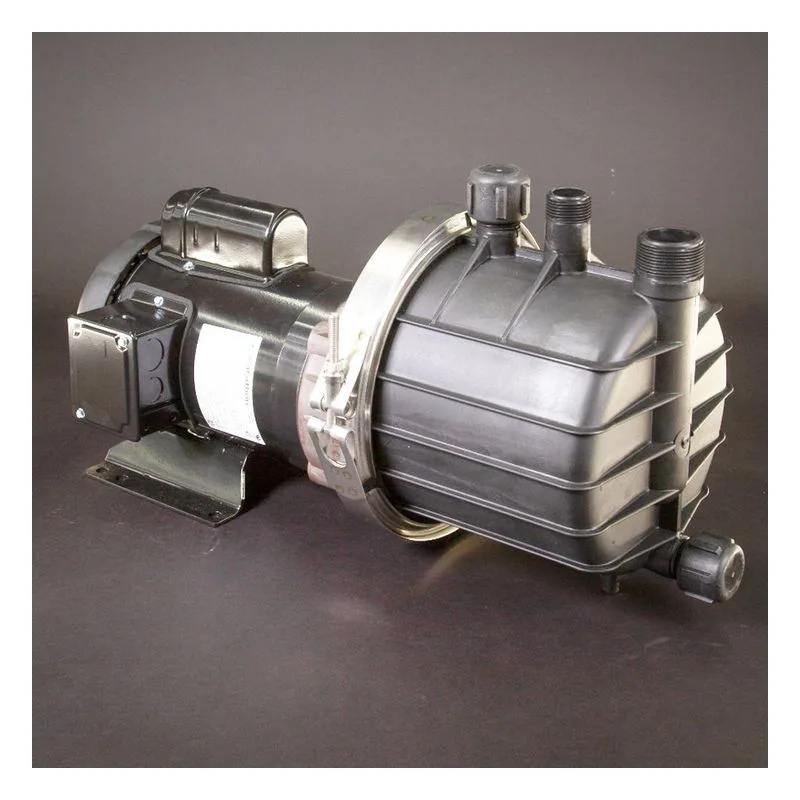

March Pumps 0155-0331-0100, Series 7 Sealless Centrifugal Magnetic Drive Self-Priming Chemical Pump, Model: SP-TE-7K-MD. 1 HP, 115/230 Volts, 50/60 Hz, 1 Ph (Single Phase), TEFC - Totally Enclosed Fan Cooled Motor. 1-1/2" FNPT Suction, 1" MNPT Discharge. Materials: Glass Filled Kynar (Impeller, Housings), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing).

$2,402.40

Best Price Guarantee!
480PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 0155-0331-0100 | Model #: SP-TE-7K-MD

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

0155-0331-0100

Discharge NPT (Inches)	1" MNPT
Heads To (Feet)	52 Feet
HP	1
Hz	50/60
Maximum Flow (GPM)	53 GPM / 200 LPM
Maximum Working Pressure (PSIG)	40 psi (275 kPa)
Model Number	SP-TE-7K-MD

Motor Enclosure Type	TEFC - Totally Enclosed Fan Cooled
Phase	1 Ph (Single Phase)
Quick Specs	SP-TE-7K-MD 1Ph 1HP
Suction NPT (Inches)	1-1/2" FNPT
Voltage	115/230

Series 7 Information

Features & Benefits
Max Flow: 53GPM (180LPM 50HZ) Max Head: 60Feet (12.3M 50HZ) Available in Ryton/Polypropylene, Kynar, and Stainless Steel 1PH 115V/230V or 3PH 230V/460V

Features & Benefits

Max Flow: 53GPM (180LPM 50HZ)
Max Head: 60Feet (12.3M 50HZ)
Available in Ryton/Polypropylene, Kynar,
and Stainless Steel
1PH 115V/230V or 3PH 230V/460V

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	March SP-TE-7K-MD Series 7 Chemical Pump Manual (2022)		View

Repair Parts for 0155-0331-0100

Product		shipping	price
	0155-0329-0100	Ships in	$445.40	Select item
	0155-0197-1000	Ships in	$29.75	Select item
	0155-0179-1000	Ships in	$4.25	Select item
	0155-0183-1000	Ships in	$169.15	Select item
	0155-0195-1000	Ships in	$153.00	Select item
	0155-0180-1000	Ships in	$6.80	Select item
	0155-0009-1000	Ships in	$7.65	Select item
	0155-0039-1000	Ships in	$23.80	Select item
	0155-0160-0200	Ships in	$413.10	Select item
	0155-0181-1000	Ships in	$39.10	Select item
	0155-0194-0100	Ships in	$311.95	Select item
	0155-0178-1000	Ships in	$215.90	Select item
	0155-0017-1000	Ships in	$2.55	Select item
	0155-0019-1000	Ships in	$0.85	Select item
	0155-0130-0200	Ships in	$321.30	Select item
	0155-0173-1000	Ships in	$646.00	Select item
0155-0327-1000			Call for Shipping
