0155-0230-0100

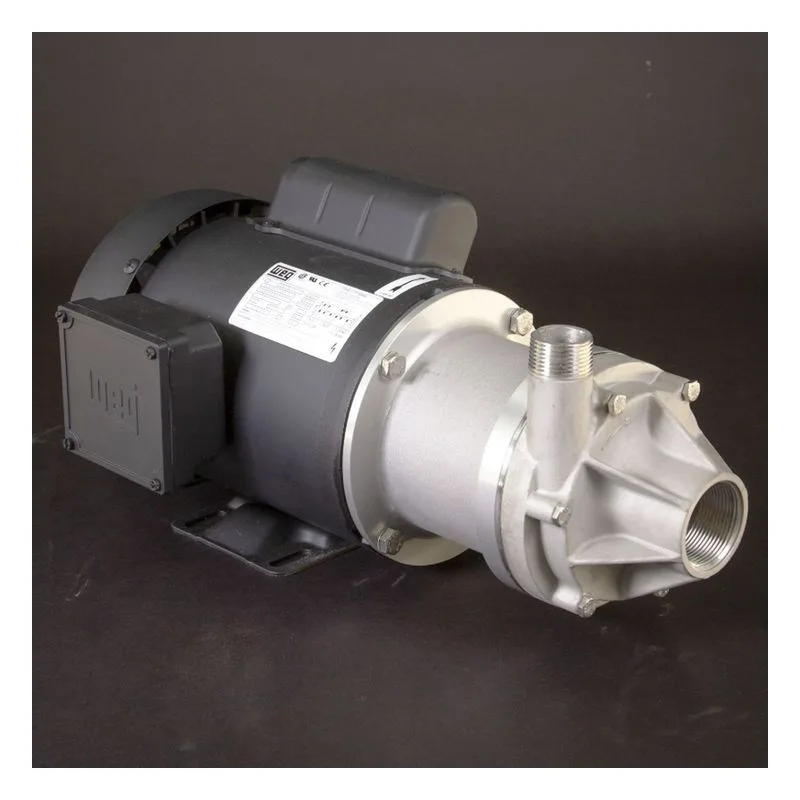

Image shown may not be actual product
0155-0230-0100
0155-0230-0100 March Pump Series 7. 1 HP, 575 Volts, 50/60 Hz, 3 Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure. 1-1/2" FPT Suction, 1" MPT Discharge. Materials: 316 Stainless Steel (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing). OBSOLETE Replaced by 0155-0398-0100 with Weg Motor.
- Overview
- Series Info
- Reviews
- Repair Parts
0155-0230-0100
0155-0230-0100 March Pump Series 7. 1 HP, 575 Volts, 50/60 Hz, 3 Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Motor Enclosure. 1-1/2" FPT Suction, 1" MPT Discharge. Materials: 316 Stainless Steel (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing). OBSOLETE Replaced by 0155-0398-0100 with Weg Motor.
| Discharge NPT (Inches) | 1" MPT |
| Heads To (Feet) | 57.5 Feet |
| HP | 1 |
| Hz | 50/60 |
| Maximum Flow (GPM) | 53 GPM / 200.6 LPM |
| Maximum Pressure (PSI) | 200 psi (1378 kPa) |
| Model Number | TE-7S-MD |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Phase | 3 Ph (Three Phase) |
| Product Notes | OBSOLETE MODEL. See 0155-0398-0100 for Replacement |
| Quick Specs | TE-7S-MD 575V 3PH 1HP |
| Suction NPT (Inches) | 1-1/2" Female NPT |
| Voltage | 575 |
Series 7 Information
| Features & Benefits |
|---|
Max Flow: 53GPM (180LPM 50HZ) |
Categories
Chemical Delivery / Processing
491 productsChemical Delivery / Transfer
530 productsCooling Water Systems
406 productsIndustrial Processes
369 productsMarine
422 productsRecirculation
452 productsRefrigeration & Air Conditioning
332 productsWater Treatment
267 products
Repair Parts for 0155-0230-0100
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 0155-0014-1000 | Ships in | $2.55 | ||
| 0155-0036-0010 | Ships in | $624.75 | ||
| 0155-0010-1000 | Ships in | $9.35 | ||
| 0155-0009-1000 | Ships in | $7.65 | ||
| 0155-0117-1000 | Ships in | $27.20 | ||
| 0155-0112-0400 | Ships in | $1,221.45 | ||
| 0155-0035-0010 | Ships in | $368.05 | ||
 | 0155-0130-0200 | Ships in | $321.30 | ||
| 1095-0015-0010 | Ships in | $229.50 | ||
| 0155-0017-1000 | Ships in | $2.55 | ||
| 0155-0019-1000 | Ships in | $0.85 | ||
 | 0155-0174-1000 | Ships in | $617.95 | ||
| 0155-0318-0100 | Ships in | $2,330.70 | ||
| 0155-0325-0100 | Call for Shipping | ||||
